| Width: | Max 6 Meters | Weight Of GCL: | 3600GSM To 5500GSM |
|---|---|---|---|
| Recommend Size Of GCL: | 5.8m X 30m Per Roll | Layer: | 3 Layer, 4 Layer And 5 Layer |
| Package: | Iron Pipe + Woven Bag | ||
| High Light: | geotextile filter fabric,geotextile road fabric |
||

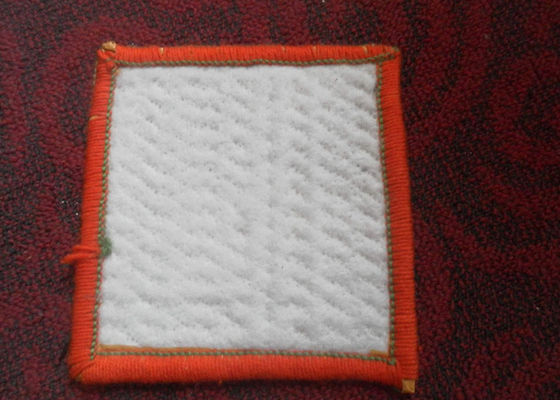

Geosynthetic Clay Liner, Bentonite Waterproof Pad For Landfill
Bentonite Waterproof Pad Description
Bentonite Waterproof Pad (GCL) consist of clay material and geotextile.About the clay material, it is usually bentonite, which sandwiched between two layers geotextiles. This lining mechanism is mechanically bonded by needle punching from one nonwoven geotextile through the bentonite to the other nonwoven or woven geotextile. The bentonite swells and extrudes through the geotextile fabric at the overlap, forming a seal by producing a dense and uniform clay barrier with the same hydraulic qualities in all parts of the clay liner
Bentonite Waterproof Pad Specification
| Name | Geosynthetic Clay Layer ( GCL) |
| GSM of GCL | 3500g- 6000g |
| Recommend size | 5.8m x 30m per roll or 5.8m x 50m per roll or do as your demand |
| Structure of GCL | First Layer - Woven Geotextile Second Layer - expansion bentonite Third Layer - Non Woven Geotextile Fourth Layer - PE Geomembrane or Without |
| Loading of GCL | 20ft container, 40ft container |
| Samples | would be supply as free |
Bentonite Waterproof Pad Features
1). Improved leakage performance
2). Permanent waterproof performance
3). Simple construction and short time limit for a project.
4). Not influenced by air temperature.
5). A kind of green material and good to environmental protection.
6). More versatile than compacted clay
7). Increased airspace and liner efficiency.
Bentonite Waterproof Pad Application
1.Applies to new civil engineering planted roof garden, basement, roof and other water projects; Water projects
2.subway, railway, municipal roads, light industry, petroleum and metallurgical industries;
3.earthwork repair and reinforcement of anti-seepage project;
4.Desert governance, environmental reform, landfill, artificial lakes, man-made landscape soil waterproof blanket a large area;
5. water conservancy projects was even better, in a large area of water seepage construction of
buildings, small Reservoir, dam, irrigation canals, reservoirs ponds, etc. can have a wide range of
applications
