Product Details:
Payment & Shipping Terms:
|
| Type: | Packaging Line | Condition: | New |
|---|---|---|---|
| Voltage: | 380V 50HZ | Power: | 11.5KW |
| Application: | Cardboard Production Line | Model Number: | NC |
| Driven Type: | Electric | Automatic Grade: | Automatic |
| Function: | High Efficiency | Usage: | Corrugated Cardboard Production Line |
| High Light: | Computerized Corrugated Cardboard Machine,corrugated cardboard making machine |
||
Products Description:

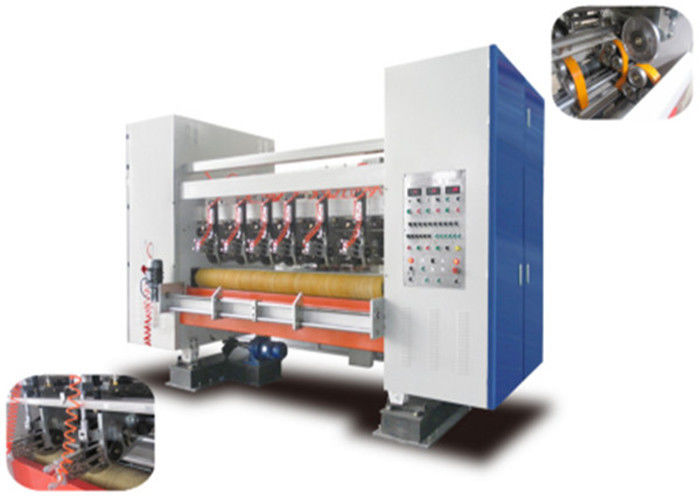

Computerized Corrugated Carton Making Machine NC Model is one of the important equipment in the corrugated board production line. It is the mechanical equipment for the cadres to cut the cardboard products,Suitable for 3/5/7-layer Corrugated Cardboard Production Line.
Structure and Features
| Design speed | 200m/min , 250m/min |
| Width | 1400mm-2500mm |
| Specification | 5 knives 8 lines |
| Min. Cut width | 135mm |
| Max cut width | 1850mm |
| Min pressure line | 0mm |
| cutter wheel positioning accuracy | ±0.5mm |
2. Change order fast, 3-8 seconds for changing order, the two machines can be achieved with no slow down immediately for a single.
3. Automatic tracking production line speed to ensure its synchronization with on-line production management system, and compatibility.
4. By the high-quality imports of industrial computers and high-performance programmable controller configuration, lower computer control system.
5. Three kinds of pressure line forms: convex on concave (three lines), convex on the concave (five lines), convex on the flat, all three pressure lines can form an electric conversion. Creasing wheel depth by computer control, linear, easy to bend.
6. Using a thin tungsten steel alloy blade, blade sharp, long life of more than 8 million meters.
7. Brothers of computer control, automatic or manual knife sharpener, you can trim the edge of the Brothers, improve production efficiency.
8. Imported synchronous drive unit, semi-precision, long life, low noise operation.
