Product Details:
Payment & Shipping Terms:
|
| Effective Width: | 300mm | Weight: | 28KG |
|---|---|---|---|
| Use Steel Clipper: | Model: # 1 / # 2 / # 3 / # 5 / # 6 (metric / Imperial) | Packages: | Wooden Box |
| Suitable: | Industrial Belts, Non-woven, Filter Cloth,filter, Connecting Belts, Conveyor Belts | Delivery: | By Air |
| High Light: | cotton conveyor belt,needle belt |
||
Products Description:
Industrial Clipper Lacer , Manual Corrugator Belt Lacing Tool is suitable for corrugator belt, needle corrugated belt ,bag, industrial belts, non-woven, filter cloth,filter, connecting belts, conveyor belts, high temperature blankets, and suitable for the following models steel buckle.
Specification :
| Use steel hook Model: # 1 / # 2 / # 3 / # 5 / # 6 (metric / imperial) | |
| Effective width: 300mm | |
| Weight: 28KG |

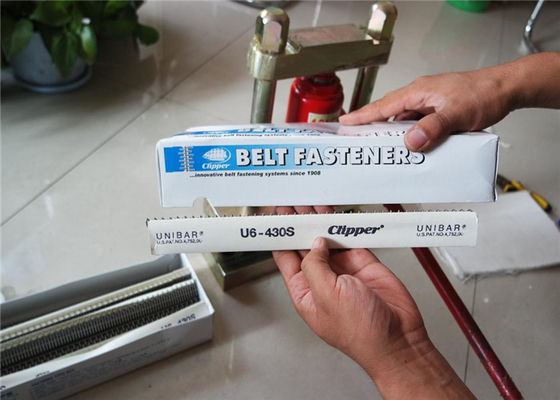

How to use Manual Fastener Clipper Lacer ?
1. Prepare the 5# or 6# fastener used for corrugator belt
2. Pick up one fastener , put on in the correct position in tick machine and use steel lock it
3. Adjust the jack, slowly lift plus bar repeatedly, to adjust the horizontal position of the steel hook, steel hook inactivity can be reached. Then put into the conveyor 300MM steel hook inside, adjust the position.
4. Left hand supporting the steady tick machine, right hand lift the jack plus bar slowly until the steel hook thickness is same as the belt. Remove the corrugator belt, for the next operation.
5. After Steel buckle repair is completed, paint A & B glue in surface evenly , put the cloth cover the buckle and belt.
Manual Fastener Clipper Lacer Delivery :
1. Delivery By Sea
2. Delivery By Air
The wooden box use non-fumigation wood box, it's convenient to customs clearance.
Could save customers more time.
