Product Details:
Payment & Shipping Terms:
|
| Type: | Pulping Equipment | Dimension(L*W*H): | Depend On The Type |
|---|---|---|---|
| Voltage: | 380V | Computerized: | No |
| Function: | Breaking And Filtrating Waste Paper | Processing Capacity(t/d): | 220-1200 |
| Application: | Paper Industry | Raw Material: | OCC |
| High Light: | pulp chest agitator,pulp and paper machinery |
||

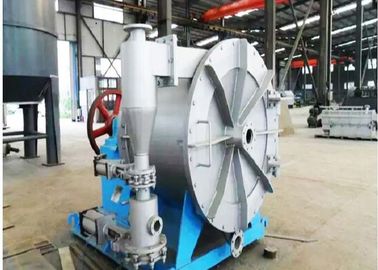

HT-75 Type Float Purger Pulper Machine For Tailing Pulp
waste paper pulp preparation / stock pulper machines are used for breaking the waste paper or occ, and virgin pulp. it can used for paper making mills, and egg trays making mill, and tableware making mills.
This machine used to crushing pulp board, wastepaper, deinking, and pulp purification.
|
Model
|
Nominal volume (m2)
|
Production
|
pulping
|
motor power(kw)
|
|
HT-10
|
10
|
60-90
|
2-5
|
110
|
|
HT-15
|
15
|
80-120
|
2-5
|
160
|
|
HT-20
|
20
|
140-180
|
2-5
|
185
|
|
HT-25
|
25
|
180-230
|
2-5
|
250
|
|
HT-30
|
30
|
230-280
|
2-5
|
280
|
|
HT-40
|
40
|
300-370
|
2-5
|
355
|
Application
Used for treating light impurities and tailing pulp in coarse screen section.
Features
The features of this machine are promptly crushing wastepaper, deinking on the condition of high concentration, the capacity of this machine is large, and the consumption of power is low. At the same time, saving vapour medication. Besides, it is easy to maintain, the service life is long, the noise of machine is low, the vibration is not strong, stable operation, and saving 50% water and energy.
The main body is an inverse conical design, concave top structure, can form a strong vortex, forming a low pressure area in the top center and getting the light impurities and discharge them outside effectively.
Centrifugal force pushes heavy contaminatants into a tapered reject channel the periphety of the extraction plate, then discharge out of the
machine continuously.
| Type | HT-75 | HT-150 |
| Nominal volume: m3 | 0.8 | 2 |
| Pressure of outflow pulp: mpa | 0.2-0.25 | |
| Treating consistency: % | 0.5-2 | |
| Capacity of product: t/d | 65-85 | 110-140 |
