Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp

China Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp supplier
Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp supplier Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp supplier Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp supplier

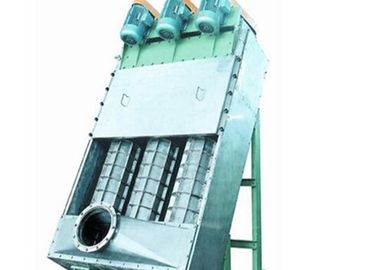

Large Image :  Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp

Product Details:

Place of Origin: China
Brand Name: HT
Certification: SGS,ISO
Model Number: HT001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Can negotiate
Packaging Details: Wooden Box
Delivery Time: 5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Type: Pulping Equipment Dimension(L*W*H): Depend On The Type
Voltage: 220V Computerized: No
Function: Breaking And Filtrating Waste Paper Processing Capacity(t/d): 220-1200
Application: Paper Industry Raw Material: OCC
Certification: ISO9001:2008



Inclined Screw Thickener Used For Thickening And Washing All Kinds Of Pulp





Application

Used for thickening and washing all kinds of pulp .



Features

Special-type screw and brush; strong self-cleaning ability of filtering drum; high discharge consistency.

For different pulp kinds and different consistency range, the hole dia.of filtering drum is different, which is beneficial to reducing loss of fiber.

Height of pulp level in pulp tank can conveniently control discharge consistency.

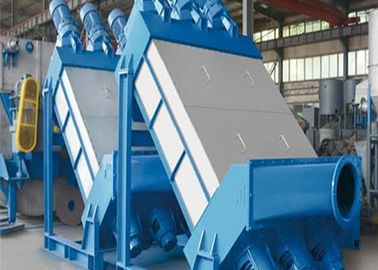

Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp



Main Technical Parameters:



Type HT-1 HT-2 HT-3 HT-8 HT9

HT-12



Normal filtrating area: m2 1X1 1X2 1X3 1.5X2 1.5X3 2X3
Consistency of inflow pulp: % 3-4
Consistency of outflow pulp: % 10-14
Capacity of production: t/d OCC 18-23 35-45 50-70 50-70 80-100 100-130
ONP 10-15 20-30 30-45 30-45 50-60 60-80
Power of main motor: kw 4 4X20 4X3 7.5X2 7.5X3 11X3

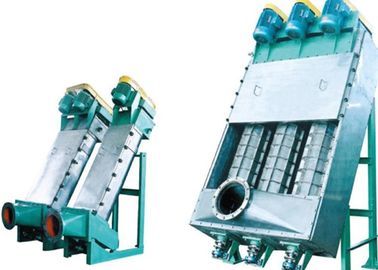

Inclined Screw Thickener Pulper Machine For Thickening And Washing All Kinds Of Pulp

Application:Used for thickening and washing all kinds of pulp

Features:Special-type screw and brush; strong self-cleaning ability of filtering drum; high discharge consistency.

For different pulp kinds and different consistency range, the hole dia. of filtering drum is different, which is beneficial to reducing loss of fiber.

Main components:

The inclined spiral concentrating unit is mainly composed of a feed taper pipe, a base, a box body, a spiral main shaft, a filter tube, a cover plate, a reduction box and a motor.



2 :

Function & application

It is used for thickening and washing in low consistency and medium consistency rang of waste paper pulping process and it is also suitable for thickening and washing pulp such as sulfate wood pulp, mechanical pulp, and chemi-mechanical pulp, etc.



Feature & benefit



1. Simple structure,

2. Easy operation and maintenance,

3. High capacity, less area required.



Inclined screw thickener is mainly used for concentrating and washing of slurry in papermaking and chemical fiber industry, especially suitable for dehydration and concentration of waster paper slurry. It has the advantages of high production capacity and dehydration effect, small square, convenient operation and maintenance, etc.



This machine is mainly used for the black liquor extraction of cooked wheat straw pulp and deinked waste paper pulp. It can also be used as the crushing after presoaking before cooking. A pair of variable diameter and variable pitch screw rotate in the opposite direction and the fibers are pressed in the space by the changing space to extract the black liquor and crush the wheat straw. The extraction efficiency and the black liquor thickness is high and the fiber wastage and damage is low.





Main Technical Parameters:

Type HT-12 HT-13 HT-14 HT-15 HT-16 HT-17 HT-18
Diamater of screw: mm Φ400 Φ450 Φ600 Φ700 Φ800 Φ900 Φ1100
Consistency of inflow pulp: % 10-14 8-12
Consistency of outflow pulp: % 25-35
Capacity of product : t/d 40-50 60-80 100-150 150-200 200-300 280-350 350-450
Power of main motor: kw 30 37 55 110 132 200 280
