Automatic Die Cutting Corrugated Cardboard Machine

Automatic Die Cutting Corrugated Cardboard Machine
Automatic Die Cutting Corrugated Cardboard Machine Automatic Die Cutting Corrugated Cardboard Machine Automatic Die Cutting Corrugated Cardboard Machine Automatic Die Cutting Corrugated Cardboard Machine

Large Image :  Automatic Die Cutting Corrugated Cardboard Machine

Product Details:
Place of Origin: China
Brand Name: HT
Certification: SGS,ISO
Model Number: HT001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Can Negotiate
Packaging Details: Wooden Box
Delivery Time: 5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Material: STEEL Quality: Excellent
Delivery Time: Within 7 Days Payment Term: L/C,T/T
Shipment Term: By VESSEL /AIR Design Speed M/min: 100-300
Multy Ply Board: 3/5/7 Ply Type: Paper Cutting Machine
High Light:

corrugated carton making machine

,

corrugated cardboard making machine

Automatic Die Cutting Corrugated Cardboard Machine



1. Die Cutting Machine Specification:


SPECIFICATION/
MODEL

HT-1100

HT-1300

HT-1400

HT-1500

HT-1600

Max. cutting size
(mm)

1100×780

1300×900

1400×1000

1500×1050

1600×1250

Min. cutting size
(mm)

540×360

650×480

650×550

660×560

780×600

Thickness of cutting paper(cm)

0.3-0.8

0.3-0.8

0.3-0.8

0.3-0.8

0.3-0.8

Work efficiency(sheets/hour)

1500~2100


1200~1500


1200~1500


1200~1500


1200~1400


Total weight of machine(kg)

7500

8500

9500

10500

16500

Dimensions
(L×W×H)mm

6000×1930×2200


6450×2650×2200

6700×2900×2200

6800×3000×2200

6900×3100x2200


If you need more choice and solution,weclome to contact us any time.


2. Product Description



 Automatic Hot Foil Stamper & Die Cutting Machine. It can run large formatsheets for die cutting and stamping.
Depending on the selected model the Technofoil can process die-cutting and embossing jobs,with or without stripping unit. It can
also work with two different stamping systems,using longitudinal or transversal foil feeding or if you choose it can even have
both installed on the same machine working at the same time.
Using longitudinal axle you have the option of making holograms.
High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one
of the best options available in the market



3. Equipments List


No

Name

1

RS-E-1400 Electric shaftless mill roll stand

2

SF320-1400 Vacuum single facer machine

3

YGQ-1400 Heavy type Sheet cutter

4

Manual Flat Die Cutting Machine ML1200

5

DXJ Double Servo Manual Box th,Stitching Machine- 1200

6

DXJ Manual Box Stitching Machine-1200

Loading into 1x40'HC container+1x20'GP container ,adjust based on client demand.


4. Technology Parameter for RS-E-1400 Electric shaftless mill roll stand


Max working width1400
Min working width600mm
Max paper roll diameter1500mm
Single Side carriage2500kg
Air pressure0.6-0.9Mpa
Power4.5kw



5. Features for RS-E-1400 Electric shaftless mill roll stand

a.Symmetrical structure can install two rolls of paper at the same time and continually change paper roll;
b.It adopts motorized control clamping, loosen, up-down, movement, contraposition, translation .
c.Equipment was made of HT200-wide casting
d.It adopts pneumatic braking.
e.Electrical components are controlled centralized(domestic brand)
...
Customized solution would be made for each client special demand.
Welcome to contact us in 7/24.

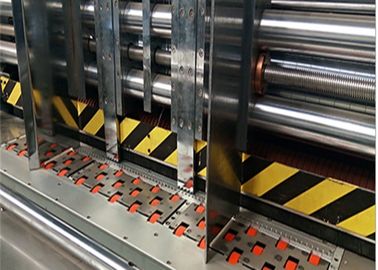

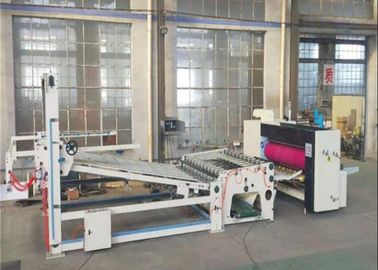

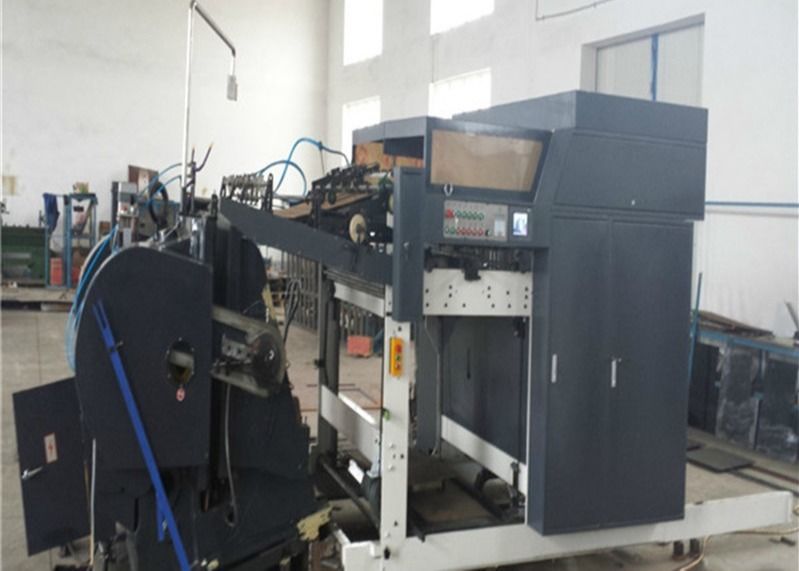

      6. Product Photo

6.
Automatic Die Cutting Corrugated Cardboard Machine 0
