Product Details:
Payment & Shipping Terms:
|
| Paper Grade: | Toilet Paper / Tissue Paper | Nominal Capacity: | 5-50 |
|---|---|---|---|
| Net Width Of Paper: | 1880-3900mm | Designed Speed: | 250m/min |
| Working Speed: | 140-400m/min | Weight: | 10-1T/D |
| Payment Term: | L/C,T/T | Delivery Time: | Within 30 Days |
| High Light: | Pulp Molding Machine,pulp molding equipment |
||

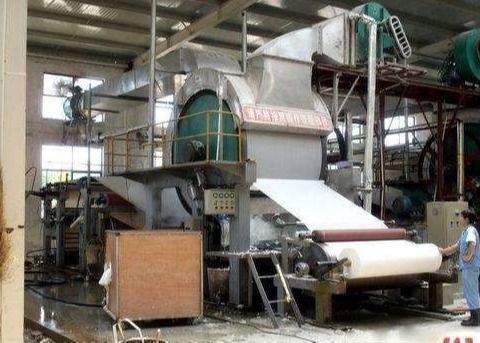

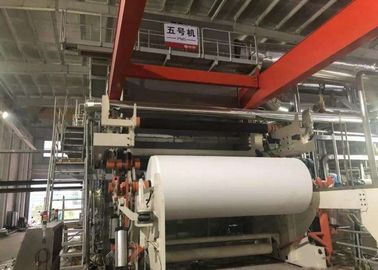

High Speed 250m/min Tissue Paper Production Line
1. Tissue Paper Production Line Crafts Parameters
Pulp: wood pulp plate, waste paper etc as raw material
come out from wire case : 18-20％
Before go through MG cylinder : 36-40％
Come out from MG cylinder : 90-94％
Finish tissue : 90-94％
2. Tissue Paper Production Line Supporting parameter
AC voltage : 380V；50Hz
Working pressure: 0.2Mpa
Working pressure: 0.5Mpa
Working pressure:0.3Mpa
| Item / PM type | 1575 | 1880 | 2400 | 2900 | 3500 | 3900 |
| Design Speed (m/min) | 250 | 250 | 250 | 250 | 250 | 250 |
| Working Speed (m/min) | 160-230 | 160-230 | 160-230 | 160-230 | 160-230 | 160-230 |
| GSM Range (g/m2) | 13-30 | 13-30 | 13-30 | 13-30 | 13-30 | 13-30 |
| Capacity | 4-6 | 5-8 | 7-10 | 8-12 | 10-15 | 11-18 |
| Diameter of Dryer (mm) | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 | Φ2500-3000 |
| Motor (kw) | 37-45 | 45-55 | 55-75 | 75-90 | 90-110 | 90-110 |
| Gauge(mm) | 2400 | 2800 | 3400 | 3900 | 4500 |
4800 |
3. Tissue Paper Production Line Main Technical Parameters
Paper weight: 18-30g/m2
MG cylinder motor: 95kw
Roll-cylinder motor: 7.5kw
Total:102.5Kw
4. Tissue Paper Production Line Application
Mainly for the production of manufacture paper with pulp 14-35 g / ㎡, toilet paper. Paper napkin base paper
5. Tissue Paper Production Line Main Features
1) This toilet paper machine adopts PLC computer programming technology, stepless variable speed pneumatic hydraulic brake, man- machine interface operation.
2) Easy operation, superior performance, can work continuously with high efficiency.
3) Spiral floating punch, low noise, the use of harmless broken paper, is a production and processing all kinds of cheap health ,Rewinding paper ideal equipment.
4) This paper simple operation on board.Paper automatic positioning, the paper transport mechanism are equipped with elastic adjusting Device.
5) Rewinding process evenly.Through compaction and adjusting device effectively solves the tightness of rewinding uneven phenomenon.
