| Condition: | New | Item: | Dewatering Elements |
|---|---|---|---|
| Application: | Mainly Used On The Forming Section To Removal Water And Support The Net | Types:: | Forming Plate, Wiper Plate, Panel |
| Thickness: | 10mm-200mm | Size: | Can Be Customized |
| High Light: | Papermaking Dewatering Elements,paper making machine dewatering elements |
||
First one: Forming Plate
The forming plate is the first element under the net of the chest roller of the paper machine, which plays the role of water removal to support the net and control the net section.
Second one: Wiper Plate
The wiper plate can be chosen according to requirements. The utility model has the advantages of a single piece, two-piece, three-piece, five-piece, and seven-piece.

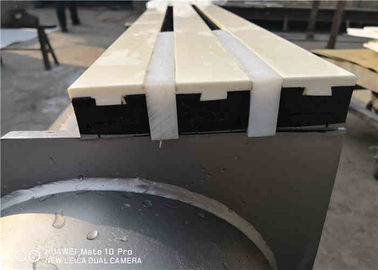

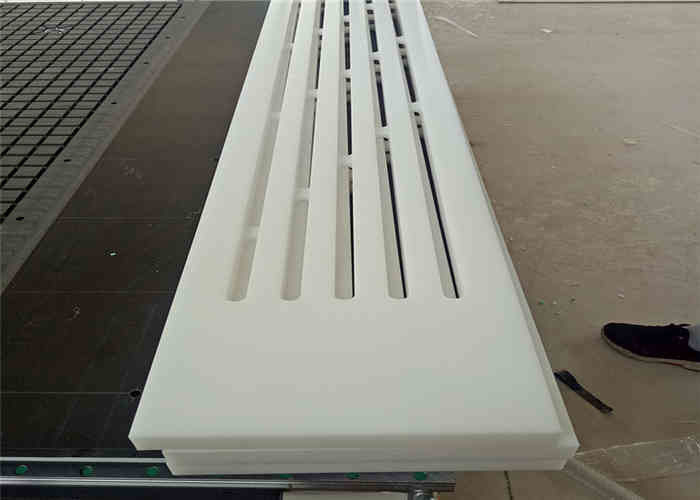

The third one: Ceramic panel
Ultra-high molecular polyethylene panel
The fourth one: VACUUM SUCTION TANK
According to customer needs, we have a single room, a double room, and a three-room. The vacuum range is 10-33KPA, the seam width is 13-20mm, the box is made of stainless steel, and the box is adjusted and sandblasted. Ceramic panel with high wear resistance and long service life.
2. Ceramic Panel Characteristic
one: Very low coefficient of dynamic friction
two: Excellent wear resistance (2 times stainless steel)
three: Chemical resistance
four: Corrosion resistance
five: Impact resistance (up to 170KJ/m m2)
six: Temperature range -100.C to 90.C (continuous operating)
3. Ceramic Panel Specification
| Based information: | |
| Material | UHMWPE/ HDPE/PP,etc. |
| Size | Length max is 6.3m; width max is 1.5m.can be customized. |
| Thickness | 10mm-300mm, etc.can be customized. |
| Color | White,green,red,yellow,etc.also can be customized. |
| Sample | Small samples for free, customers need to pay the freight. |
| Design | Can produce as customer drawing. |
| Character: | |
| Outstanding feature | Impact resistant,hing abrasion resistance,temperature resistant,etc. |
| Application |
Storehouse wall,port machinery,miningmachinery,building machinery,hopper, transport machinery,foods,package,dock,foods processing,etc. |
| Advantage | Low cost,light weight,insulation,anti-aging,anti-UV,etc. |
| Delivery term and Packing: | |
| MOQ | 1000 kg |
| Payment term | T/T and L/C at sight. |
| Port | Qingdao, Tianjin, Shanghai, etc. |
| Delivery term | Within 7-25 days after received the deposit. |
| Packing details | Plastic film and pallets, can be customized. |
