Product Details:
Payment & Shipping Terms:
|
| Item: | HT-450 | Diameter Of Plate: | 450mm |
|---|---|---|---|
| Production: | 8-80t/d | Motor Power: | 90-160kw |
| Consistency: | 3-5% | Pressure Of Feeding Pulp: | 0.1-0.3mpa |
| High Light: | 80t/D Double Disc Refiner,5% Consistency Double Disc Refiner,160kw double disk refiner |
||
3-5% Consistency 8-80t/D Production Capacity Double Disc Refiner
Product Description
Double Disc Refiner can be used alone,also can be arranged in a series.Mainly used for pulping,improving slurry beating degree to meet the paper making needs.It can be installed various tooth refiner plates.Suitable various raw material such as wood pulp,mechanical pulp,chemical pulp,waste paper pulp etc.
Product Features
1. Fine and coarse pulping
2. Increase beating pulp degree
3.Double Disc Refiner, with horizontal mountings, continuous operation for refining
4. Dia:380-600mm
5. Production: 20/40-60/120 T/D
6. Be used as both coarse refiner and fine refiner in pulp making system.
Product Specification
| Model | HT450 | HT500 | HT550 | HT600 | HT900 | HT1100 |
| Dia of disc(mm) | 450 | 500 | 550 | 600 | 900 | 1100 |
| Speed of disc(r/min) | 980 | 980 | 980 | 980 | 600 | 600 |
| Capacity(t/d) | 8-80 | 10-100 | 10-120 | 12-150 | 20-400 | 40-800 |
| Motor power(kW) | 90-160 | 132-200 | 160-250 | 200-315 | 315-800 | 400-1250 |
| Pulp consistency(%) | 3-5 | |||||
| Maximum operating pressure(Mpa) | ≤0.4 | |||||

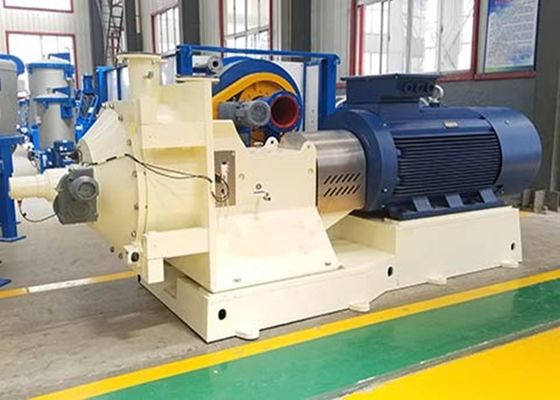

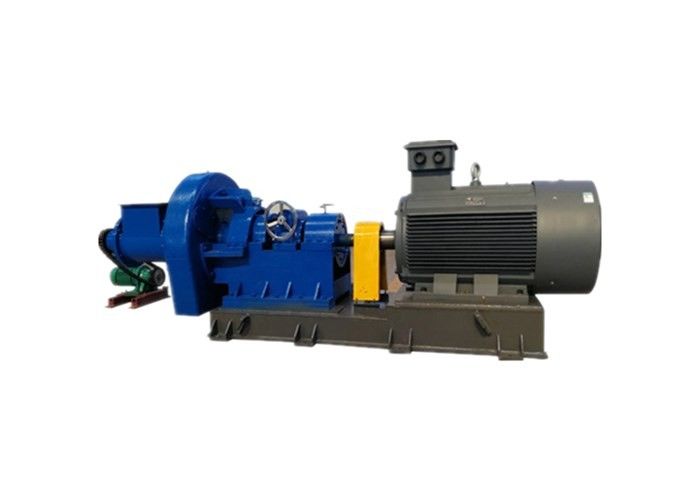

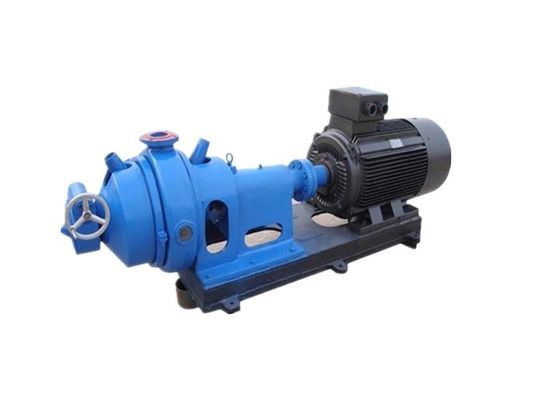

Product Photos
