Product Details:
Payment & Shipping Terms:
|
| Material: | Polyurethane | Size: | 610mm*610mm /305mm*305mm |
|---|---|---|---|
| Type: | LINEAR | Feature: | High Screening Efficiency |
| Usage: | Separation Screening | Function: | Screening\separation\sorting\sieving |
| High Light: | Polyurethane Vibrating Screen Mesh,610x610mm polyurethane screen mesh,610x610mm Vibrating Screen Mesh |
||

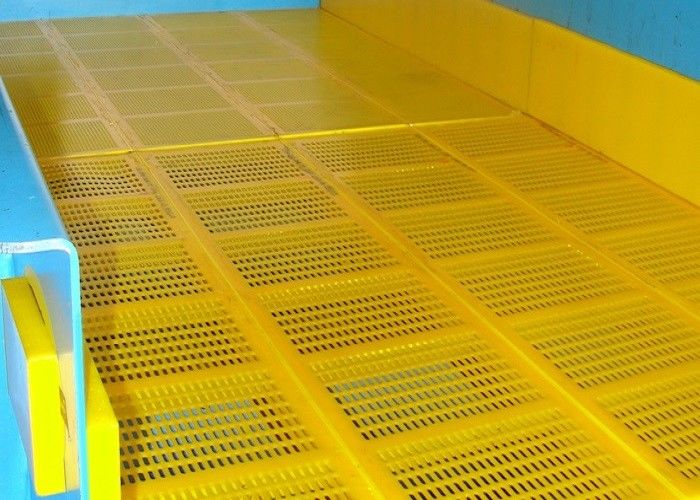

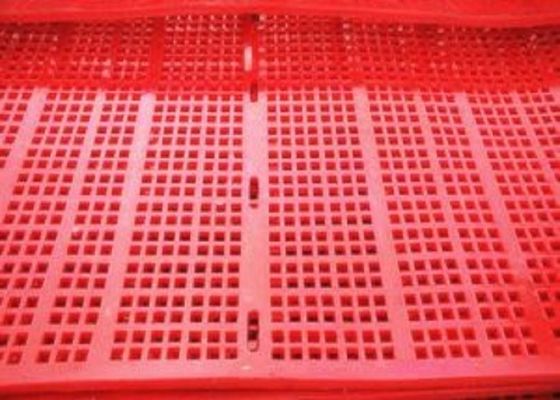

High Wear Resistant Fine Modular Polyurethane Vibrating Screen Mesh
Polyurethane Vibrating Screen Mesh Introduction
Polyurethane PU screen mesh is fabricated by advanced polyurethane materials with embedded metal framework structure, which combines all the characteristics of rubber sieve, but also have superior wear resistance, higher screening accuracy, better tear resistance.
Common size : 305*305mm,300*300mm,305*610mm
Other size can be customized made.
Slit length is 4-16mm,width is0.1,0.2,0.3,0.5..2.0,2.5 mm etc .
According to the structure of pu screen,we can divide it into 4 styles : setting typebolt linkpress bar couplingscreen hook coupling.
Dewatering pu screen has the advantage of long services life,easily non-blocked,oil-resistance,waterproof,light wright,easy installati features etc .
| Screen size | ||
| 0.054mm | 0.063mm | 0.068mm |
| 0.074mm | 0.10mm | 0.12mm |
| 0.15mm | 0.18mm | 0.20mm |
| 0.22mm | 0.25mm | 0.30mm |
| 0.35mm | 0.43mm | 0.50mm |
| 0.70mm | ≥1.00mm | |
Polyurethane Vibrating Screen Mesh Features
1. High screening Efficiency---2-5 times of the ordinary screen
2.Large bearing capacity---2.5 times more than rubber sieve
3.Long service life--- Can be used for six months to more than one year
4.good abration and corrosion resistance--- condition of using water or oil as the medium.
5.maintanance and replacement is low--- Hole can't be plugged& washing-free
6.Low noise---it has well vibration-absorbing performance
7.rational design of the screen hole---limit size of the particleswill not block mesh.
8.widely used---mining, metallurgy, coal, coking, chemical and other industries.
9.Good wet resistant performance---work on the water condition
Polyurethane Vibrating Screen Mesh Application
The polyurethane screen and sieve plate, widely used in metallurgy, mining, coal screen, building materials, water conservancy, construction industry, steel plate punching mesh, wire mesh, stainless steel plate products, has the advantages of light weight, high efficiency, no blocking, anti friction, impact resistance, tear resistance, long service life (is a stainless steel plate 2 - 3 times), the advantages of low noise, convenient installation, comprehensive benefits.
