1450X2600MM Chain feed two-color printer slotter machine for printing carton
1. 1450X2600MM Chain feed two-color printer slotter machine for printing carton Description
1.Chain type paper feeding, double side baffle, high paper feeding precision ,smooth
operation.
2.The chain feeder and the main machine to form a line speed difference.After the
cardboard is sent, the rear baffle pulls away, it will not damage the box.
Print unit (three sets)
1.Print phase microcomputer phase meter digital control.
2.Horizontal phase manual control, control range ±5 mm.
3.Press printing rollers ,rubber rollers and anilox rollers adjust gap adopt self - locking
structure .
4.Printing phase fixing device, pneumatic brake mechanism, when the unit is
separated to adjust the phase or cleaning, the brake mechanism limits the gear rotation,
maintaining the original gear fixed point position .
2. 1450X2600MM Chain feed two-color printer slotter machine for printing carton Specification
1.The surface diameter of the steel roller is treated with fine pressure forming , the
mesh point is consistent , and the upper ink is uniform .
Balance correction, smooth operation.
2.Air pressure automatic lifting device match up paper feeding system (The anilox
roller descends in contact with the printing plate during feed, and the anilox roller rises
away from the printing plate when feeding stops).
3.The anilox roller is equipped with a one-way overrunning clutch. It is convenient
and quick to evenly ink and wash ink.
3. 1450X2600MM Chain feed two-color printer slotter machine for printing carton Advantages
1.The governor controls the operation of the host to make the speed control more
convenient and faster.
2.Displacement memory reset function, the machine in the working process, such as
need to open the machine for clearing or a small number of plate change, after the
machine closed it can automatically restore the original position.
3.All drive rollers are made of high-quality steel, hard-chrome plated and
surface-ground

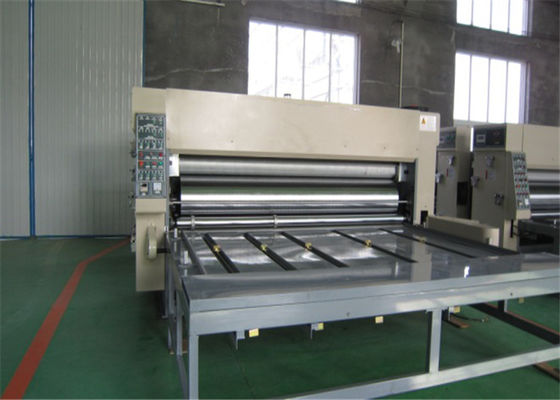

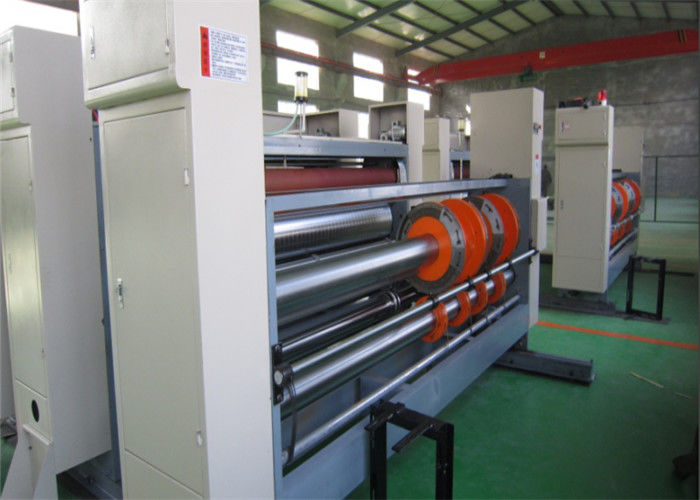

4. 1450X2600MM Chain feed two-color printer slotter machine for printing carton Pictures
5. 1450X2600MM Chain feed two-color printer slotter machine for printing carton Machine performance
1.The 40mm thickness of the transmission gear use 45# high quality gear steel, and the
hardness is 58-62 degrees after quenching.
2. The alarm will ring continuously while machine separate or whole machine move to
ensure the safety of the operator.
3.Before and after the emergency stop switch is arranged , each unit can be stopped
inside to ensure the safety of the internal operating personnel .
4.The emergency stop switch is set in front of the machine and back of the machine to
stop the movement of each unit internally for ensure the safety of internal operators.
5.Oil automatic balancing device to keep all units of oil at the same level.
6.The material of the wall is HT250,thickness is 40mm through aging treatment , it is
formed by the large machining center so as to ensure high strength and high precision .
| Max over paper size |
1450×2500 ㎜ |
| Min over paper size |
350×500 ㎜ |
| Max printing size |
1450×2400 ㎜ |
| Min printing size |
350×500mm |
| Standard plate thickness |
6 ㎜ |
| cardboard thickness |
2-11 ㎜ |
| Printing precision |
±0.5 ㎜ |
