9mm Double Facer Corrugated Belt For Automatic Corrugated Cardboard Line

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

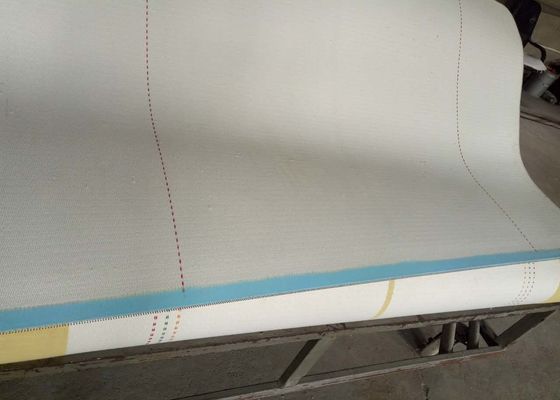

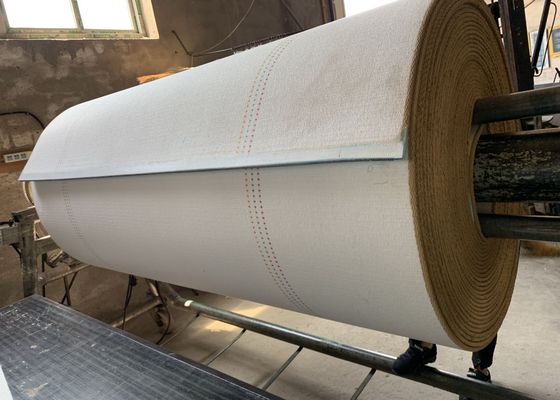

9mm Double Facer Corrugated Belt For Automatic Corrugated Cardboard Line

9mm Double Facer Corrugated Belt For Automatic Corrugated Cardboard Line
9mm Double Facer Corrugated Belt For Automatic Corrugated Cardboard Line
video play

Large Image :  9mm Double Facer Corrugated Belt For Automatic Corrugated Cardboard Line

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Model Number: Huataobelt-001
Payment & Shipping Terms:
Minimum Order Quantity: 10M2
Price: Price accept negotiation
Packaging Details: Wooden box
Delivery Time: 15-20days
Payment Terms: Western Union, T/T,, L/C
Supply Ability: 60000M2/YEAR
Detailed Product Description
Material: Synthetic Material Thickness: 9±0.3mm
Wdith Range: 1000mm - 3200mm Heat Resistance: 220℃
Weight: 7.5kg/m2 Length: 80m
Place Of Origin: Hebei, China Brand: Huatao
Material Feature: Heat And Pressure Resisting Dimension(L*W*H): Size Customization
High Light:

Double Facer Corrugated Belt

,

9mm Corrugated Belt

,

7.5kg/m2 corrugated belt

9mm Double facer Corrugated Belt for 3/5 Automatic corrugated cardboard line





Corrugated Belt Products Description

Corrugator belt also named Corrugated board conveyor belt. Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Conveyor’s four functions are smooth cardboard delivery, straight run, the pressure evenly distributed pressure in the system to ensure the best hot plate and cardboard dryness. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible. The patented weave structure guarantees correct gluing and fast drying of the board. The use of high quality PET-fibers enable the belt to shed very rapidly the moisture absorbed during the drying process.



Corrugator Belt Advantages:

High grade material

Safety packing to protect

High absorption of moisture

High durability

Maximum flexibility

Suitable for machine speed 50 - 300M/min



Corrugator belt Specifications



Product



Woven Corrugator Belt

Thickness 9mm
Width range 1000mm - 3000mm
Length 80 meters
Heat-resistance 220℃
Tensile strength 70Mpa
Coefficient of friction ≥ 0.40µ
Weight per unit (7.5±0.3)kg/㎡
Air-permeability 40mmwater Column 2.0m³/m2 min
Seam Hot JAW lacing/Clipper with rubber coated
Suitable position Top & Bottom belt

Used on all corrugators high tearing resistance

Long life time running High abrasion resistance

Moisture absorption Heat resistance Low noise





Corrugator Belt Seam



1.Hot clipper(jaw) Lacing with flocking:

Low noise emission

Flocking surface to protect the corrugated board no marks

NO weakening of the fabric

Without touch of the clipper with the board, heating plates and the pressure loading system

Safety and persistent

Excellent running performance



2.Clipper with rubber coated:

Low noise emission

Resistance tearing, Non-abscission

rubber surface to protect the corrugated board smooth

Rubber flat surface neither damage pressure device nor damage outer rubber of driving-roller

Stable transmission

Prevent heavy roll from jointing



3.Fastener steel clipper / Jaw

All clipper import from America Fastener

Top quality of clipper grade

Ensure the enough tensile

Resistance to abrasion and tear Good running ability







Corrugated Belt Application



Huatao Corrugator belts are sprecifical use in the heating and tracking section of all kinds famous corrugators. Huatao group has been processing technical advances in corrugator belts for many years,Till today,we could provide the super quality belts for kinds of demanding application:

Including BHS/AGNATI/MHI/MIT/MARQUIP/TCY/ISOWA and more china corrugator machine. We study and offer the suitable belts for every application

9mm Double Facer Corrugated Belt For Automatic Corrugated Cardboard Line 0

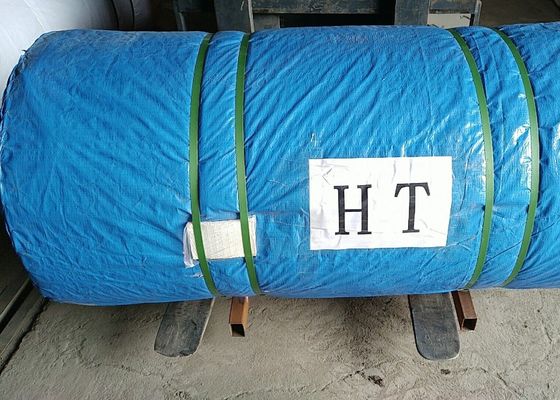

Corrugator Belts Package



Type-I:Waterproof film+Dampblanket+Plasticbag+pallet

Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet



Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.







Why Choose Us ?



Our team of senior engineers can organize the best commodity source for you. By supplying the best Chinese products, Professional design and responsible attitude on service,we devote to creating our unique brand "HUATAO" in global. Since the establishment, " HUATAO " products have been supplied to more than 20 countries and set up the agencies. And our products and service have been recognized and trusted by the end users all the way. We believe, once we have the cooperation, "HUATAO" will be your most reliable partners in your road to success. Because of trust , business will be simple.



FAQ

Q1: How long is the liftime of the conveyor belt?
A: Under normal circumstances (not operational error or mechanical failure), it can be used for 50million meters or more.
Q2: How about the fastest trial speed?
A: 330m/min.
Q3: Lead time?
A: Generally, 30-45 days. If the customer needs urgently, the lead time can be shortened.
Q4: Why is the price not the lowest among the industry?
A: The product process is different. Our factory has participated in the formulation of national standards, and the product has obtained a patent for collision avoidance.
Q5: What corrugated cardboard production line has our conveyor belt used?
A: Xiexu; Mingwei; Mitsubishi; BHS; Jingshan; Fuli and etc…
