Product Details:
Payment & Shipping Terms:
|
| Processing Type: | Pulp Equipment | Nominal Volume: | 130m3 |
|---|---|---|---|
| Treating Consistency: | 3-5% | Capacity Of Product: | 950-1050t/d |
| Power Of Motor: | 1000KW | After-sales Service: | Video Technical Support, Field Installation, Commissioning And Training, Online Support |
| High Light: | Type D Hydrapulper Machine,1050t/D Hydrapulper Machine,130m3 Hydrapulper Machine |
||
950-1050t/d capacitiy Type D hydrapulper For OCC Waster Paper Pulp Making
Product Description
The hydra pulper is used mainly for breaking out all kinds of pulpboard and broke all kinds of paper. D type pulper is particularly designed for dissolving old corrugated carton, boxes and mixed waste so that removes contaminant.
Type D Hydrapulper changed pulp flow direction of tradition pulp machine and make the thick liquid material always flow to the center direction. It improves the height of thick liquid at the center position, meanwhile increase the striking times of thick liquid material to the impeller and improve pulping ability by 30%. This equipment is the ideal machine for paper making industry used in the intermittence and succession to pulp the thick liquid board, damaged paper, and waster paper.
Features
1. Applicable for pulping of all kinds of waste paper in deinking line and ink separation.
2. Special spiral rotor, better pulping capability but less breakage of impurities.
3. sufficient pulping.
4. Compact structure, easy operation, and maintenance.
Specification
| Type | HT-25 | HT-26 | HT-27 | HT-28 | HT-29 | HT-30 | HT-31 | HT-32 | HT-33 | HT-34 | HT-35 | HT-36 | HT-37 |
| Nominal Volume | 15m3 | 20m3 | 25m3 | 30m3 | 35m3 | 40m3 | 45m3 | 50m3 | 60m3 | 70m3 | 80m3 | 100m3 | 130m3 |
| Treating Consistency | 3-5% | ||||||||||||
| Capacity of product: t/d | 80-120 | 140-180 | 180-230 | 230-280 | 270-320 | 300-370 | 350-400 | 400-450 | 480-550 | 550-630 | 600-700 | 750-850 | 950-1050 |
| Power of motor | 160kw | 185kw | 220kw | 280kw | 315kw | 355kw | 400kw | 450kw | 560kw | 630kw | 710kw | 900kw | 1000w |

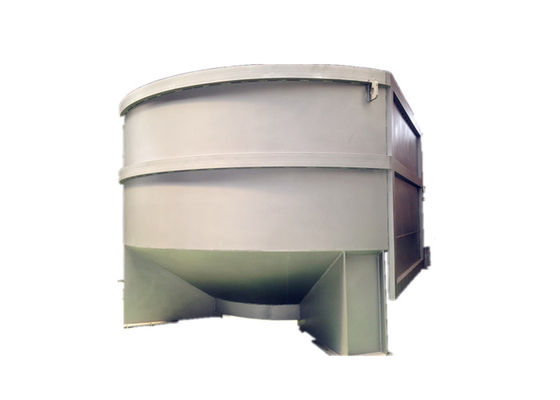

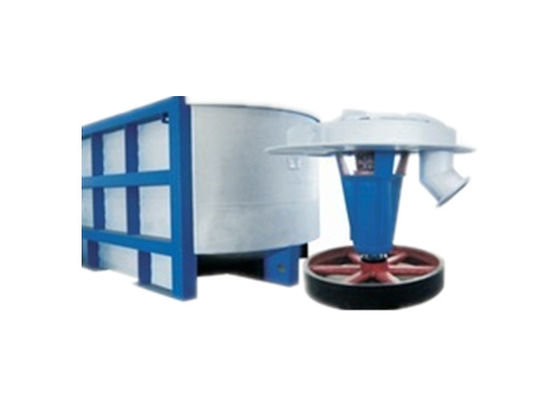

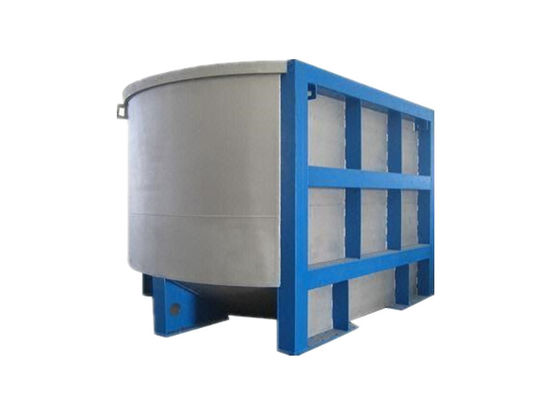

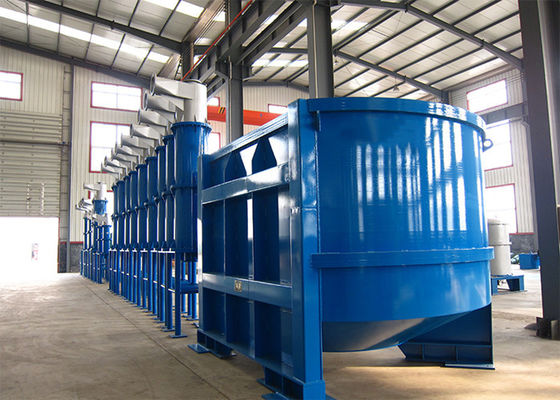

Product Photo
