Product Details:
Payment & Shipping Terms:
|
| Diameter: | 80-150 Mm | Length: | 760-2400 Mm |
|---|---|---|---|
| Paper Width: | 500-2200 Mm | Shell Material: | SS 304/ SS316 |
| Rubber Thickness: | Up To 480 Mm(up To 19 In) | Warranty Time: | 1 Year |
| High Light: | banana roller for rewinder machine,ss banana roller,nbr cover banana roller |
||
NBR Cover SS Banana Roll For Rewinder Machine
NBR Cover SS Banana Roll For Rewinder Machine Introduction
It is suitable for the processing machinery of paper, film, textile, metal foil and other products, which can prevent the substrate from wrinkles and stretch and straighten during operation.
The diameters of 80, 100, 120, 125, and 150 hoses are equipped with internal bearings, with small rotating torque; the rubber surface is smooth and has no adverse effect on the substrate; the angle of the stretching wheel can be adjusted freely.
Rubber sleeve:NBR, wear-resistant, EPDM, Hypalon, silicone
The above specifications are for user reference and can be customized according to user requirements. The company reserves the right to change or stop product specifications, dimensions, and designs.
NBR Cover SS Banana Roll For Rewinder Machine Features
Widely used in the size press, calendar, winder and slitter paper spreader, unique structure.
Expander roll with hard chrome: deliver big torque, good sealing,rotate freely, not to come out of the joint, no leakage of oil;
Expander roll with rub cover: resist of abrasion,long worklife.Adopt unique structure on the both end of the cover not to expansion and contract.
1,High wear resistance
2,Improved CD tension profile of the sheet, fabrics or felts
3,Improved end product quality
4, Reliable wrinkle-free operation
5,Improved production efficiency
6,Huatao OEM process support and maintenance services
NBR Cover SS Banana Roll For Rewinder Machine Data Sheet
| Diameter | Max 2500mm |
| Face width | 12000 mm(472 in) |
| Maximum speed | 2600 mpm(8500 fpm) |
| Material | Stainless Steel with rubber cover |
| Maximum temperature | 140℃(284F) |
| Rubber thickness | up to 480 mm(up to 19 in) |

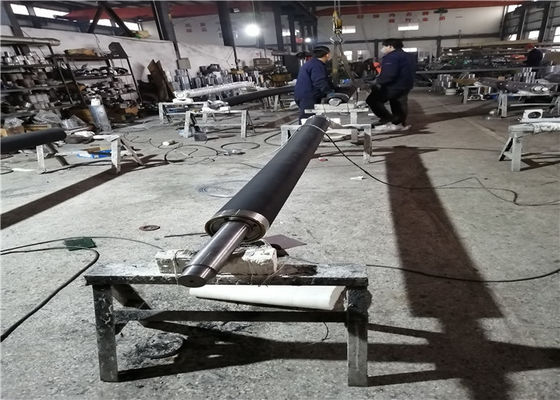

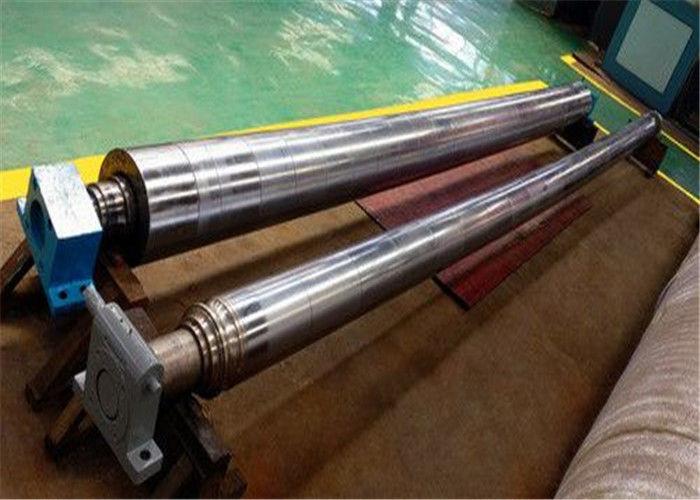

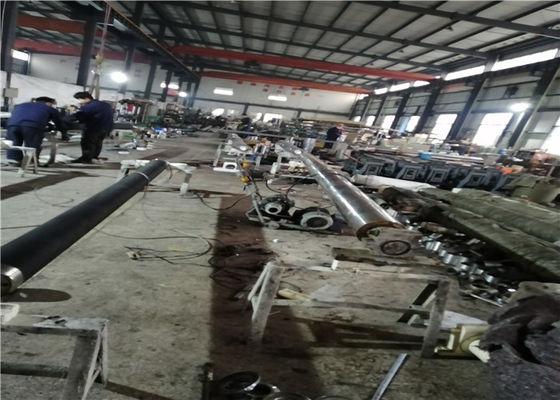

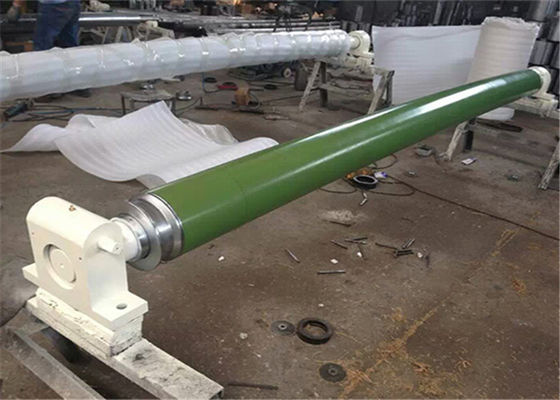

NBR Cover SS Banana Roll For Rewinder Machine Picture
