Product Details:
Payment & Shipping Terms:
|
| Products Type: | Toilet Tissue | Paper Width: | 1575/1760/1880mm |
|---|---|---|---|
| Jumbo Roll Diameter:: | ≤1100mm | Production Capacity: | 180m/min |
| Minimum Slitting Width:: | 100mm | Product Name: | Toilet Paper Roll Rewinder Machine |
| Spray, Cutting And Rewinding: | Automatic | Warranty: | 1 Year |
| High Light: | paper slitting and rewinding machine,1575mm toilet paper machine,180m/min toilet paper machine |
||

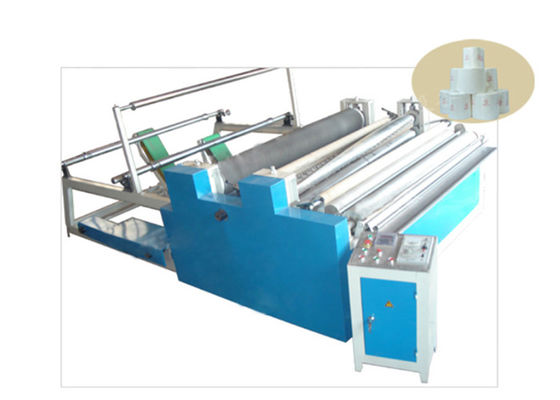

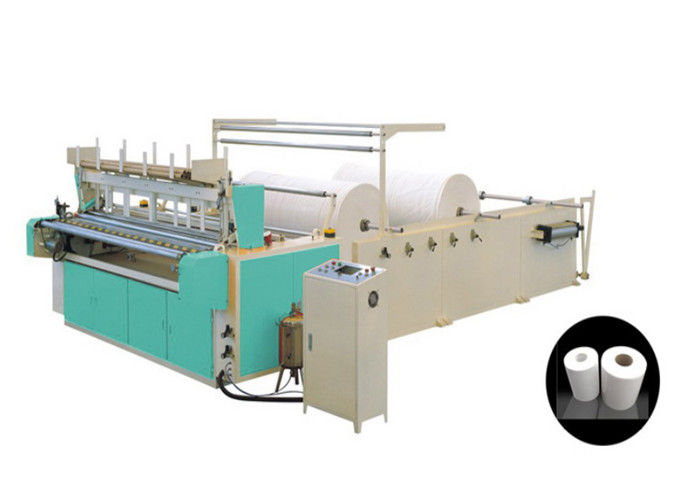

1. Automatic Toilet Paper Slitting Rewinding Machine and Perforating Machine Description:
Rewinding machine is generally used for: mica tape, paper, film rewinding and cutting, play all the role of two, often used for the wide width of the coil material, and more subsequent recutting play an important role, is a paper, mica tape, film special equipment. Automatic Toilet Paper Slitting Rewinding Machine and Perforating Machine adopts the new international PLC computer programming technology upgrade, variable frequency speed regulation, automatic electronic brake. Touch type man-machine interface surface operating system, the core of the roll forming system. Application PLC program wind column forming technology to achieve faster rewinding, more beautiful appearance and other characteristics.
2.Automatic Toilet Paper Slitting Rewinding Machine and Perforating Machine Parameter:
|
Model |
1575/1760/1880 |
|
Paper width |
1575/1760/1880mm |
|
Base diameter |
1200mm(please specify) |
|
Jumbo roll core diameter |
76mm(please specify) |
|
Product diameter |
40mm-200mm |
|
Paper backing |
1-4layer, general chain feed or continuously variable transmission feed paper |
|
Punch |
2-4 knife, spiral cutter line |
|
Hole pitch |
Positioning of bell and chain wheel |
|
Control system |
PLC control, variable frequency speed control, touch screen operation |
|
Product range |
Core paper, non core roll paper |
|
Drop tube |
Manual, automatic(optional) |
|
Production speed |
150-280m/min |
|
Spray, cutting and rewinding |
Automatic |
|
Finished product launch |
Automatic |
|
Point moving mode |
Before and after the point moving |
|
Power configuration |
380V, 50HZ |
|
Required air pressure |
0.5Mps(the self) |
|
Embossing |
Single embossing, double embossing(steel roller to wool roller,steel roller,optional) |
|
Blank holder |
Airbag control, cylinder control, steel to steel structure |
|
Outline dimension |
6200mm-7500mm*2600mm-3200mm*1750mm |
|
Machine weight |
2900kg-3800kg |
FAQ
Q: 1.What information do you need,if i need to get a quotation from you?
A: Output paper type;Capacity(tons/24hours);Output paper weight(gram/m2);Raw material
Q: 2.How long is the guarantee period for paper making machine?
A: 12 months after the pending operational
Q: 3.What is the delivery time if we make a order from you?
A: Usually, the delivery time for smaller machines is 30-45 days after receiving deposit,But for bigger machines, it will be longer to make sure the equipment quality.
Q: 4. How is the quality of your equipment?
A: (1). We are manufacturer, specializing in producing all kinds of Pulping Machine & Paper,Machine & Environmental protection equipment for more than 40 years, competitive,With good quality.
(2). We have a technician team of engineers and experts.
The advanced paper making technology,to make sure our machines’ design are newest.
(3). The machines will be pre-installed at workshop before delivery.
(4). All of our machines has audited the certificate of ISO
Q: 6.Can we visit your factory and the running machine has installed in China?
A: Welcome to visit our factory.You can check our production ability, processing ability ,check out facilities and running paper production line. What is more,you can discuss with engineers directly, and learn the machines well.
