| Name: | Outflow Pressure Screen | Material: | Stainless Steel |
|---|---|---|---|
| Warranty: | 1 Year | Voltage: | 380v/50hz/3phase Etc |
| Flow Rate: | 5-400t/day | Spare Parts: | Available |
| High Light: | outflow screen pressure,500t production capacity screen pressure,pulp making screen pressure |
||
5-500t Production Capacity Stainless Steel Outflow Pressure Screen For Pulp Making
Product description
The Outflow Pressure Screen is a kind of advanced paper pulp screening equipment, can be used in the paper pulp screening system, can also be used to select raw material before the paper machine. The Outflow Pressure Screen uses the difference between inside and outside pressure screen using the screen and rotor head screening positive pressure as a driving force, use of the pressure generated by the rotor high-speed rotation pulse self-cleaning effect, without a screening of pulp from the along the direction of paper cutting continuous pulp inlet into the sieve drum and the drum body, between qualified fiber through the sieve pore flow inside the sieve seam (or screen), by the plasma discharge tube, stay in outside of the sieved pulp under the impetus of the pulp flowing and the rotor via the bottom of the discharge tube.
Product Specification
| Type | HT-31 | HT-32 | HT-33 | HT-34 | HT-35 | Ht-36 |
| Screen area | 1.2m2 | 2m2 | 3.2m2 | 4.2m2 | 4.7m2 | 5.7m2 |
| Width of screen slot | 0.15-0.45mm | |||||
| Screen consistency | 0.8-2.0% | |||||
| Flow rate | 5-30t/d | 10-50t/d | 25-120t/d | 40-200t/d | 60-300t/d | 80-400t/d |
| Power of motor | 15kw | 30kw | 45kw | 75-90kw | 110-132kw | 132-160kw |
Product features

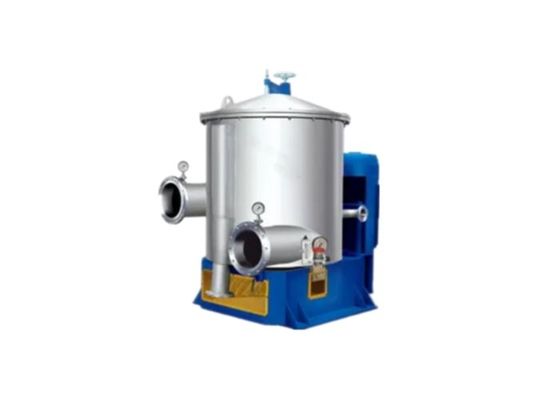

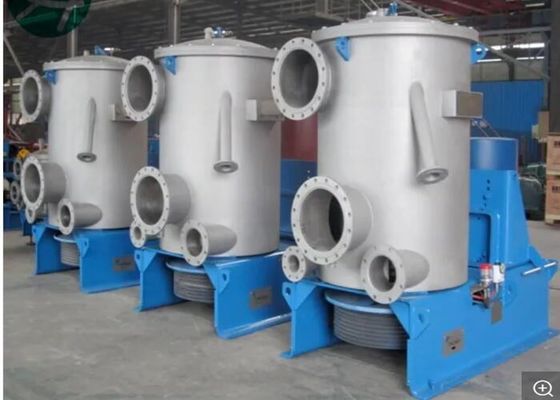

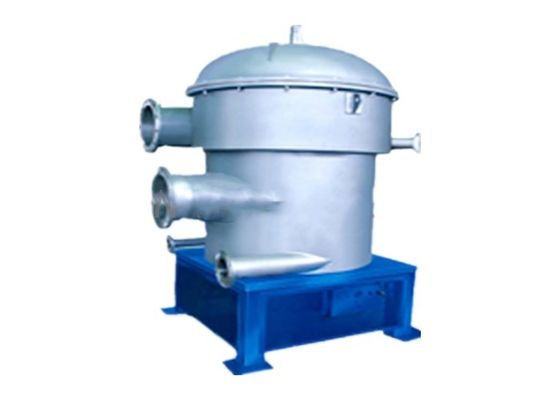

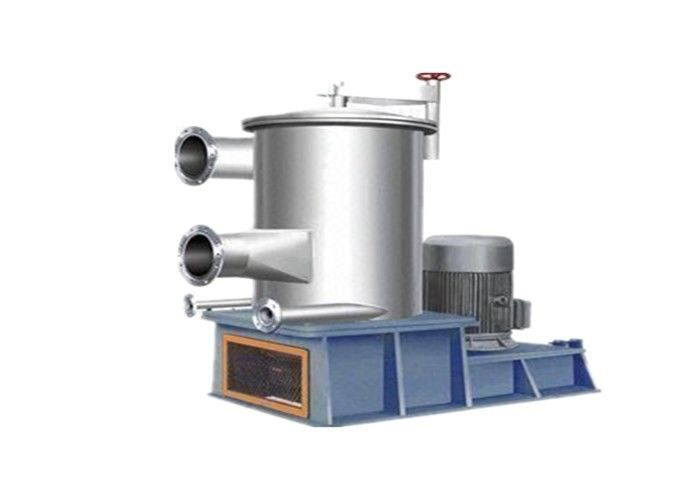

Product Photos
