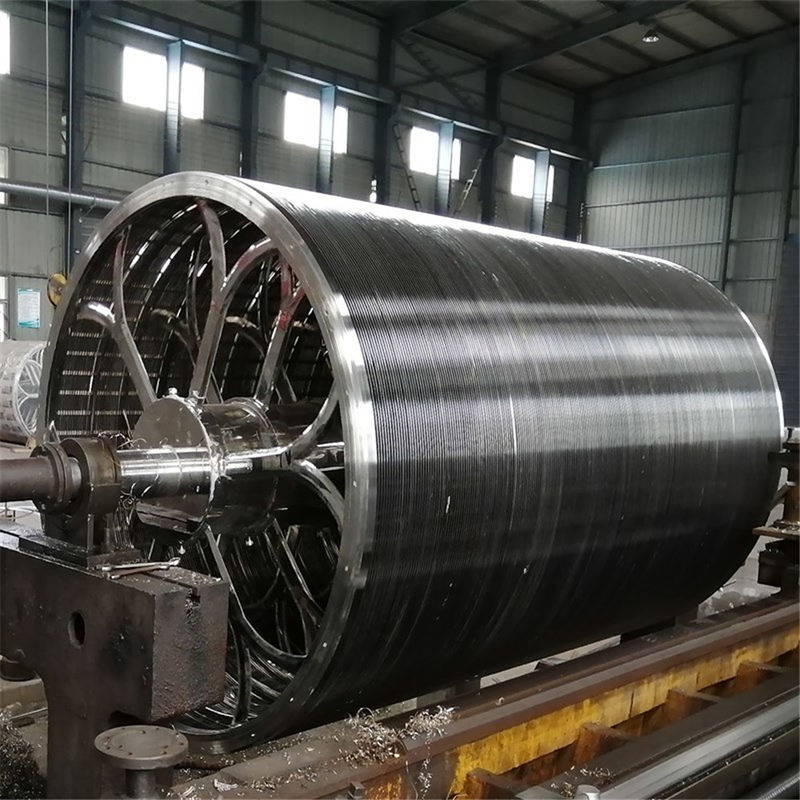

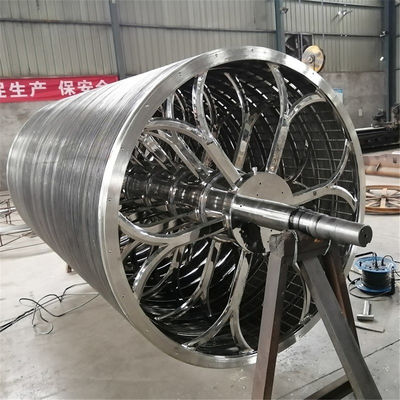

Tissue Paper Production Stainless Steel Material 304 Cylinder Mould

Tissue Paper Production Stainless Steel Material 304 Cylinder Mould
Tissue Paper Production Stainless Steel Material 304 Cylinder Mould
video play

Large Image :  Tissue Paper Production Stainless Steel Material 304 Cylinder Mould

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-CYLINDER MOULD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10000
Packaging Details: Standard export packing
Delivery Time: 100 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per year
Detailed Product Description
Origin: China Brand: Huatao
Material: Stainless Steel HS Code: 84399900
Diameter: 1000mm, 1250mm, 1500mm, 1800mm, 2000mm Applicaiton: Paper Making
High Light:

Tissue Paper Production Cylindrical Mould

,

Tissue Paper Production Cylinder Mould

,

Stainless Steel 304 Cylinder Mould

Tissue Paper Production Stainless Steel Material 304 Cylinder Mould

Cylinder Mould Normal Specification Diameter
1000mm, 1250mm, 1500mm, 1800mm, 2000mm, 2500mm

Cylinder Mould Face Length Range
1000mm - 5000mm

Cylinder Mould Description
SS 304 cylinder mould for paper making machine, including spindles, grids, spokes and spacers, with spokes equally spaced on the main shaft, with wire racks mounted on the spokes, stainless steel spokes mounted at equal intervals between the spokes on the main shaft, replacing part of the spokes The stainless steel support ring is embedded at the outer end of the support bar, and the grid is installed along the outer edge of the support steel ring and the spoke, and is tightly wound with stainless steel wire. The paper machine Cylinder Mould is light in weight, corrosion-resistant and reduces energy consumption. Reduce equipment maintenance cycle.

Advantage of Cylinder Mould

  1. High speed: Balance detection, more than 700 meters
  2. Weight is reduced by 30% compared to ordinary cages, reducing energy consumption
  3. Each piece of spoke has been accurately measured to avoid the overweight phenomenon of the cage and reduce the friction force of the cage on the blanket and the net reduce manufacturing cost
  4.  All spokes are U-shaped design to reduce water resistance, the surface is very smooth; the speed can be increased by 15-30 meters compared to common cast iron cages without causing water drop phenomenon
  5. The strength is higher than that of the common cage for several times, impact resistance, and the maintenance rate of the cage is reduced
  6. High surface roughness, increase the area of filtered water, increase production, improve paper quality
  7. Acid and alkali resistant, standard 304 stainless steel8: Very strong integrity, durable.

Structure

Common

Piece Type (Winding type / string chip type)

Material

Stainless Steel

Air exhaust

Vacuum

Width

1000 ~ 8000mm

Diameter

1000mm, 1250mm, 1500mm, 2000mm, 2500mm

Function

  • Increase filtering area and speed, increase of production.
  • Improve finish paper quality including evenness, gram weight and aspect tension ratio

  • Reduce wear and repair cost of SS wire and felt etc.

  • Strengthen integrity and antiseptic property of the equipment to keep it durable

  • High precision,beating the trail of less than 0.10 mm.

  • Accept customized size



Tissue Paper Production Stainless Steel Material 304 Cylinder Mould 0Tissue Paper Production Stainless Steel Material 304 Cylinder Mould 1



FAQ



Q: How to confirm the type?
A: There are many methods for us to confirm the type:

Way 1,  tell us the specifications data.
Way 2, tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.

Q: What is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C. So pls feel free about the payment.

Q: When will delivery the goods?
A: Usually, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.

Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.

Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.

Looking for ideal 16 Mesh Cylinder Wire Net Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the SS Woven Mesh are quality guaranteed. We are China Origin Factory of Stainless Steel Cover Fabric. If you have any question, please feel free to contact us
