Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine

Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine
Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine

Large Image :  Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-CYLINDER MOULD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10000
Packaging Details: Standard export packing
Delivery Time: 100 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per year
Detailed Product Description
Origin: China Brand: Huatao
Material: Stainless Steel HS Code: 84399900
Surface Treatment:: Polishing Application: Used In Paper Making
Diameter Range: 1000-2500mm
High Light:

Sus304 Cylindrical Mould

,

Cylindrical Mould Sus304

,

Tissue Making Machine Cylindrical Mould

Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine



Cylinder Mould Description

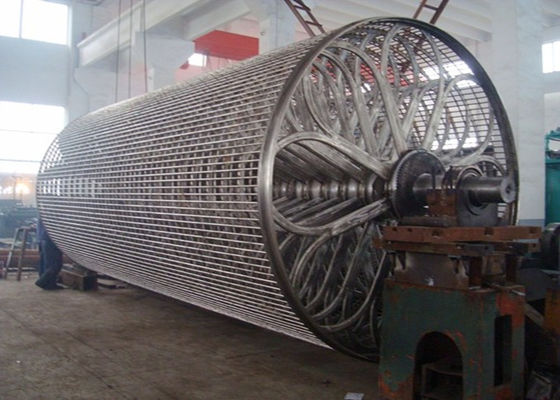

Cylinder is the main part in cylinder paper machine on which the paper width is formed.It is required to filter water evenly and not produce too much stirring in the trough when rotating.The cage should have sufficient stiffness and accurate geometry and should be installed horizontally.

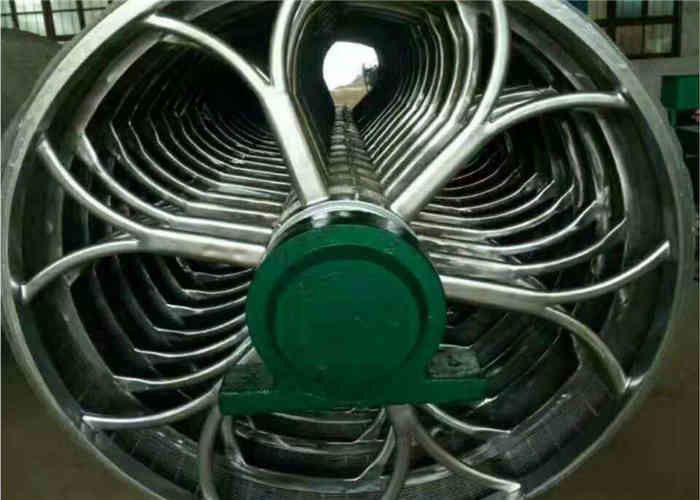

The rotary shaft is fitted with a brass support bar device called spokes, with spokes spaced 100-150mm apart.The spokes support the central rim of the wheel, which is surrounded by grooves with horizontal bars of the same length as the net cage.


The horizontal strip is about 1cm in diameter and 4cm from the center, parallel to the central axis.The bar is made of steel or brass and the section may be round or rectangular.There are protruding wheel rings on the outermost wheel rings, which are used to seal the corresponding parts of the net groove, so as to isolate the inside and outside of the cylinder.In the horizontal bar according to the spiral milling out of serrated groove, with a continuous diameter of about 3mm of metal wire spiral wound in the cylinder, then form a cage cylinder frame.The gap between adjacent wires is about 1cm.


Finally, the copper wire is first covered with a thick brass or stainless steel inner mesh, and then covered with a thin surface mesh for paper making.In the wire and face wire are terminal net, is a special tool to tighten in the cylinder frame, with silver welding or welding butt up.The final assembly must concentric with the central shaft, and its stiffness should be sufficient to withstand the pressure of the volute roll without deformation.



The cylinder bearing device is outside the net groove.The two ends of the cylinder are connected with the side box of the net slot.Slurry after the Internet, through the copper mesh filter into the cylinder of white water, from both ends of the cylinder into the side box, and then out of the white water pump circulation.



Structure Common Piece Type (Winding type / string chip type)
Material Stainless Steel
Air exhaust

Vacuum

Width 1000 ~ 8000mm
Diameter 1000mm, 1250mm, 1500mm, 2000mm, 2500mm
Function
  • Increase filtering area and speed, increase of production.
  • Improve finish paper quality including evenness, gram weight and aspect tension ratio
  • Reduce wear and repair cost of SS wire and felt etc.
  • Strengthen integrity and antiseptic property of the equipment to keep it durable
  • High precision,beating the trail of less than 0.10 mm.
  • Accept customized size





Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine 0Professional SUS 304 Material Cylindrical Mould For Tissue Making Machine 1



FAQ:



Q: How to confirm the type?
A: There are many methods for us to confirm the type:
Way 1: tell us the specifications data.
Way 2: tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.

Q: What is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C. So pls feel free about the payment.

Q: When will delivery the goods?
A: Usually, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.

Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.

Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.
