| Package: | Wooden Case | Voltage: | 380V, Other Voltage Need Customize |
|---|---|---|---|
| Total Power: | 43kw | Weight: | 4.15t |
| Transport Package: | Plastic Film And Wooden Box | Origin: | China |
| Color: | Optional | Size Of Machine:(L*W*H): | 4000mm*2200mm*2500mm |
| Frequency: | 50-60Hz Can Customize | Trademark: | Huatao |
| HS Code: | 8443139000 | ||
| High Light: | 450mm jumbo roll cutting machine,450mm jumbo roll slitting machine,iso9001 jumbo roll slitting machine |
||

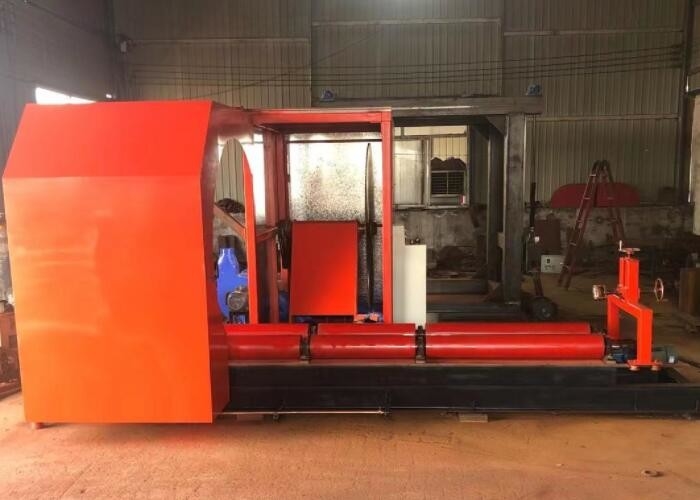

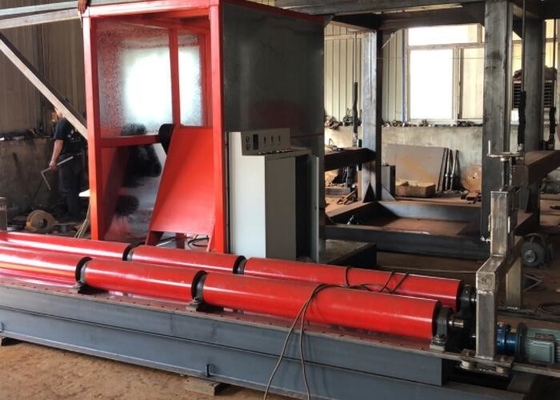

This paper roll slitting machine is widely used in paper mill, packaging, and printing factory. It looks the same as a normal sitter, but no need rewinder, which saves time. It can be used for cutting different width paper rolls ,This electric paper cutter machine can cut the paper rolls which is soaked, wormed, bigger or special specification according to customer demands, also including the kraft paper, corrugated paper, white card, etc.
The special paper roll saw blade is used for cutting corrugated paper, Kraft paper, paper tube, honeycomb paper, paper pipes, roll paper, etc. It is strong, clean, smooth, with no late surface polishing, with high efficiency of cutting and it has obvious benefits and economic value.
This slitting machine is used for web paper cutting in paper industry, mainly cutting web paper into different sizes according to customer requirements, with low knifeedge loss, smooth and smooth cutting surface without sticking edge.
We can provide sawdust baler according to customer's demand. The paper sawdust generated during the paper cutting process of the paper cutter is collected into the equipment through the fan, and the sawdust is compressed into a pie shape by hydraulic pressure, which not only reduces the sawdust in the factory, but also saves the area of the sawdust after packaging. At the same time, the paper cake can be sold to the paper mill to realize the recycling of resources.
| Brand Name | Huatao |
| Paper Width | Between 3cm to 2.80m |
| Paper Roll Diameter | Between 35cm to 1.35m |
| Time-consuming |
It'll take 5min to cut 1.25m DIA and 140g Kraft cardboard, time-consuming conversely to weight. 6 rolls can be cut per hour on average |
| Cutting Diameter | 450-1350mm |
| Max Cutting Length | 3000mm |
| Alloy Steel Saw Head | Taiwan |
| Saw Style Model | 1750mm*10.5mm Imported tungsten steel saw head |
| Size of machine (L*W*H) | 4000mm*2200mm*2500mm |
| Voltage | 380V(standard), other voltage need customize |
| Frequency | 50-60HZ can customize |
| Total Power | 43KW |
| Main Motor Power |
22KW |
| Weight |
4.15T |
Q: How to confirm the type?
A: There are many methods for us to confirm the type:
Way 1, tell us the specifications data.
Way 2, tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
Q: What is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C. So pls feel free about the payment.
Q: When will delivery the goods?
A: Usually, we will deliver the goods within 30 working days.
Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
