Product Details:
Payment & Shipping Terms:
|
| Usage: | Press Felt For Writting Paper | Working Section: | Press Section |
|---|---|---|---|
| Kind: | Paper Machine Clothing | ||
| High Light: | paper making felt,polyester forming fabrics |
||
PAPER MAKING FELT INTRODUCTION:
Culture paper making felt apply to all types of culture paper machines with uni-press to produce the culture paper of 40 to 150 grams.
The endless weaving technique with a full set of imported equipments for production lines ensures the good structure stability and the superfine surface of the felts.
working principle:
In the press section of a paper machine, water is removed from the newly formed sheet. The paper sheet is carried by a press fabric between two rolls, where water is removed with the application of pressure. also can be assisted by the use of vacuum and heat.
Classification:
A papermakers' felt for the press or dewatering section of a papermaking machine is formed with an inner woven fabric and with a plurality of longitudinally extending, transversely spaced heavy yarns or strands which are supported on the bottom surface of the fabric by a relatively light cross-machine yarn or binder pick which interconnects the heavy strands with the warp yarns of the fabric. It is a kind of precious material in paper making industry. It can be divided into three types: wet felt, upper felt and dry felt according to the uses
There are Two series of papermaking felt available in the market, Endless and Seam Felt
And Endless Press Fabric could be divided in to some types according to the structure, Single Layer Felt, Double Layer, and Laminated 1+1, 1+1+1 , 1+2, 2+1, 2+2.
SPECIFICATION:
| GSM | Structure style | Application | Note |
| 9 | |||
| 1100-1400 | Double layer domestic material | Write paper, printing paper, newspaper,package paper, kraft paper | Lighten trace, high line press resistance, long life performance |
| 1200-1500 | Double layer import material | Write paper, printing paper, newspaper,package paper, kraft paper | Lighten trace, high line press resistance, good filtration, dimension stability, long life performance |
| 1200-1500 | Double layer import material | Big roll press for high-grade, package paper, paper borad | Lighten trace, high line press resistance, good filtration, dimension stability, long life performance |

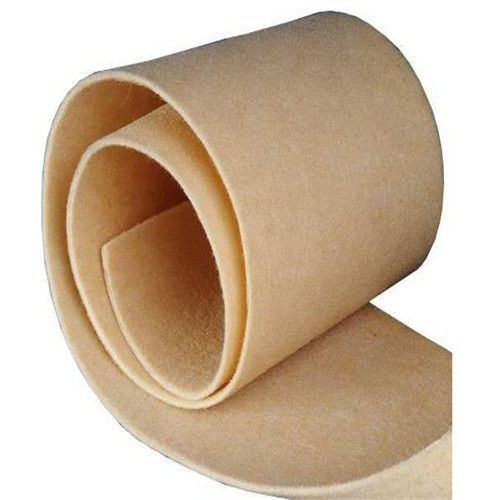

FELT PICTURES:
Feature:
1. High anti-compaction capacity.
2. Extremely high elasticity and recoverability.
3. Strong drainability abd larger void volumn.
4. Long holding time of wear resistance and plastic strength of felt.
5. Smooth felt surface and even pressure distribution.
1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
2. Q: Waht is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.
3. Q: When will delivery the goods?
A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.
4. Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.
