Home ProductsBattery Pasting Belt

Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine

I'm Online Chat Now
Certification
China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine

Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine
Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine

Large Image :  Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine Get Best Price

Product Details:

Place of Origin: China
Brand Name: HT
Certification: ISO
Model Number: HT-PB016

Payment & Shipping Terms:

Minimum Order Quantity: 5 piece
Price: Price accept negotiation
Packaging Details: PE bag/Woven bag
Delivery Time: within 15 days after received payment
Supply Ability: 500pieces/month
Detailed Product Description
Color: White Technology: Needled Punched
Material: Synthetic Fiber Type: Endless Belt
Thickness: 5-12mm Width: 220,400,420,356m Or As Your Demands
Length: 1770,2050,2565,3035mm Or As Your Demands Usage: Battery Pasting Machine
Feature: Durability Packing: PE Bag/Woven Bag
High Light:

pasting belt

,

synthetic conveyor belt





Standard Seamless Pasting Belt For Golden Sunlight Pasting Machine





Product Profile



This series of pasting belt is specially applied to the Golden Sunlight Pasting Machine, in particular the addition of polyester strong silk woven mesh skeleton, to ensure that the elongation less than 2%. The production process of acupuncture makes the surface of the belt more smooth and ensures the quality of the coated plate.



Product Specification



Product Name Pasting Belt
Appearance

No scratches / depressions / bulges on the surface, no lint;

Neat trimming, no flash;

Uniform thickness;

Glue layer 2.5-3MM
Tolerance

Length: ±5MM

Thickness: ±0.2MM



If you are using the the Golden Sunlight Pasting Machine, welcome contact us to get the details about the belt. Your needs are our pursuit.

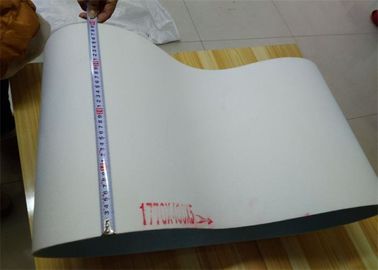

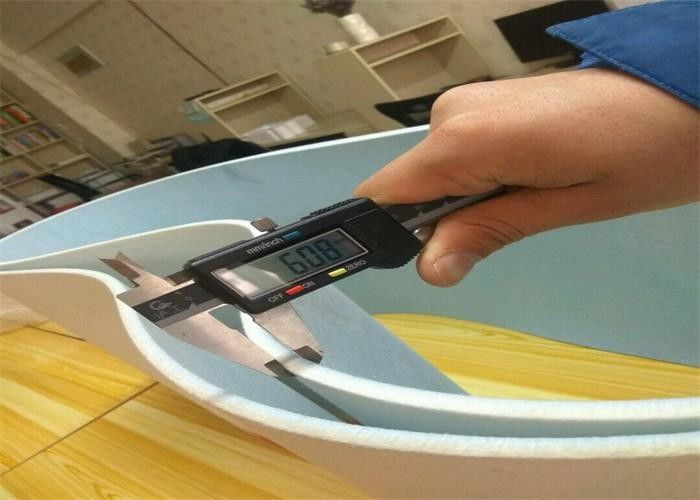

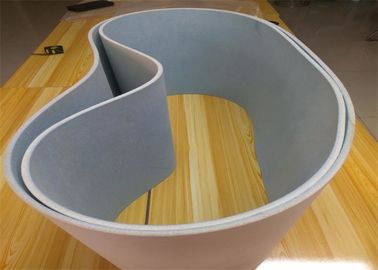

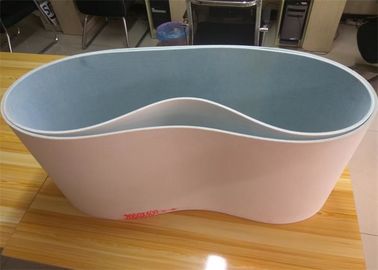

Product show:



Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine 0



Standard Seamless Synthetic Fiber Belt For Golden Sunlight Pasting Machine 1



Belt Storage



Store the Battery Pasting Belt in a cool and dry environment. The rational environment is 20 temperature and 50% humidity. Do not place the belt under direct sunlight, high temperature (low), or excessive humidity. Otherwise, it will affect the belt. Surface material properties.



Belt Installation



Before installing the Battery Pasting Belt, remove out any oil, cotton, and other foreign materials on the surface of the belt and the roller to prevent the belt from walking abnormally. Belts with joints are different depending on the application during installation. Please pay attention to the belt running direction.



Install & Adjustment



The deviation of the Battery Pasting Belt will cause the damage of the conveyor belt, which can be corrected by adjusting the roller, etc. The belt will have a little extension after installation.

In a state with a certain degree of tension, let the belt rotate for 1-2 weeks so that the overall tension of the belt is uniform. At this time, the tension pulley is properly fixed. After 24 hours of operation, the tensioning wheel is adjusted again. At this time, the intermediate material of the belt has been fully stretched and the belt will no longer extend.



Belt Maintenance



Keep the Battery Pasting Belt and roller clean during use. Never use stupid chemicals to wipe the belt.
