|Wdith Range:||1000mm - 3200mm||Heat Resistance :||220℃,the Kevlar Edge Upto 350℃|
|Color:||White||Applicaltion:||Automatic 3/5/7ply Corrugator Line|

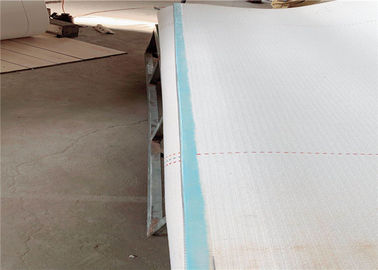

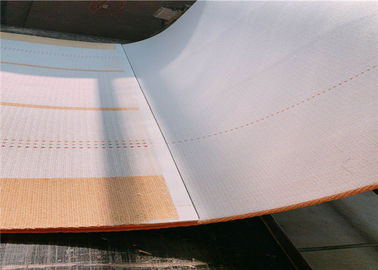

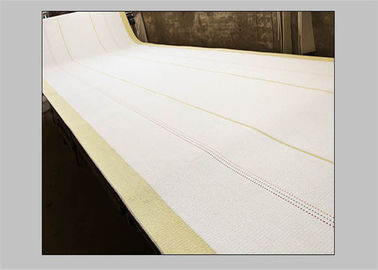

100% Synthetic High Speed Corrugator Belt 9mm Thickness with Kevlar Edge is a consistent development based on the proven woven high speed corrugator belt range .Also is ideal for corrugating systems with high production speeds , even load systems and frequently changing paper widths .
we also supply : needle corrugator belt , woven corrugator belt ,single facer traction belt
Corrugator belt - Features
Suitable as top belt with high speed (above 150m/min ) production
Heat and Super tear resistance
Inwoven Aramid edge to reinforce the belts ,reduce wear substantially and ensure a longlife time .
Particularly for frequent changes of board width
More Popular in the all corrugators plant.
Corrugartor Belt Specification
|Product||Inwoven Aramid Edge Belt - kevlar edge|
|Width range||1000mm - 3200mm|
|Heat-resistance||240℃ (the kevlar edge upto 350℃)|
|Coefficient of friction||≥ 0.40µ|
|Weight per unit||(7.5±0.3)kg/㎡|
|Air-permeability 40mm water Column||2.0m³/㎡ min|
|Seam||Hot JAW lacing/Clipper with rubber coated|
|Edge||100mm or 200mm inwoven aramid edge reinforcement (kevlar)|
|Suitable position||Top belt|
Used on all corrugators high tearing resistance
Long life time running High abrasion resistance
Moisture absorption Heat resistance Low noise
Corrugator Belt Seam
Model1:Fastener Clipper With Rubber
Model2:Hot JAW Lacing
Corrugator Belts Package
Type-I: Waterproof film+Dampblanket+Plasticbag+pallet
Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.
High grade material
Safety packing to protect
High absorption of moisture
Suitable for machine speed 50 - 300M/min
Goodrunningwith low noise
Long life time running
