Thickening Washing Paper Pulping Equipment Screw Press Pulp Thickener

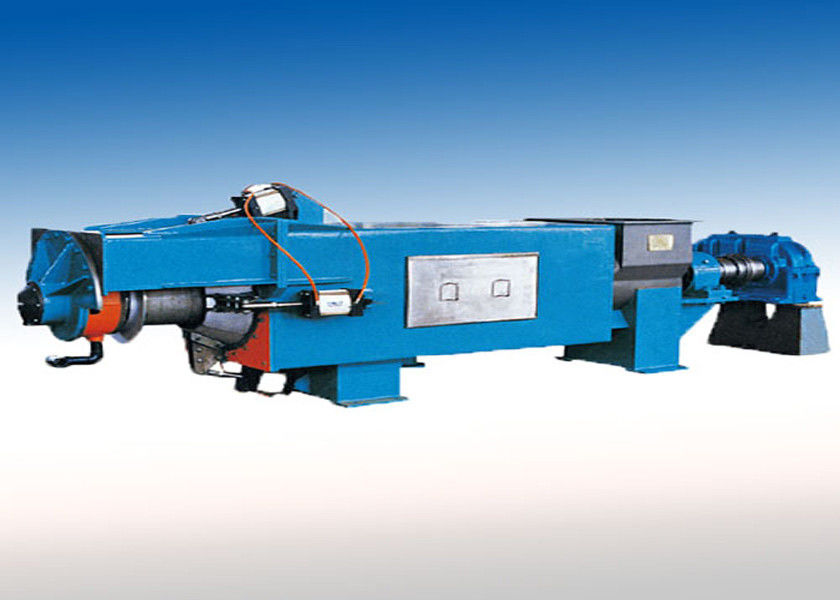

Large Image : Thickening Washing Paper Pulping Equipment Screw Press Pulp Thickener

Product Details:

Place of Origin:	CHINA
Brand Name:	HTL
Certification:	ISO
Model Number:	HTJJ

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	By negotiation
Packaging Details:	Poly-wooden box
Delivery Time:	4-6 weeks
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	100 Sets/year

Contact Now

Detailed Product Description

Condition:

New Or Second Hand

HS Code:

84391000

Packaging:

Standard Export Package

Brand Name:

Highlight:

paper mill machine parts

pulp pump

Thickening Washing Paper Pulp Screw Press Thickener

Application:

Used for thickening the pulp.

Features:

For screw shaft, the compression ratio is axially distributed reasonably.Thereby, efficiently ensure normal running of equipment.

On discharge side, fitted with inner dewatering assembly with holes, which can efficiently secure uniformity of dewatering of inside and outside pulp layer. If necessary, use back-flushing device to wash the inner dewatering assembly to make sure of smoothness of inner dewatering channel.

Pneumatic back-push assembly can secure the stability and adjusting state of discharge consistency.

Main Technical Parameters:

Type	HT-12	HT-13	HT-14	HT-15	HT-16	HT-17	HT-18
Diamater of screw: mm	Φ400	Φ450	Φ600	Φ700	Φ800	Φ900	Φ1100
Consistency of inflow pulp: %	10-14			8-12
Consistency of outflow pulp: %	25-35
Capacity of product : t/d	40-50	60-80	100-150	150-200	200-300	280-350	350-450
Power of main motor: kw	30	37	55	110	132	200	280
