Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making

Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making
Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making

Large Image :  Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making

Product Details:
Place of Origin: CHINA
Brand Name: HT
Certification: SGS 、ISO
Model Number: PM01
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: USD 7500 per set
Packaging Details: WOODEN BOX
Delivery Time: 20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000sets per year
Detailed Product Description
Type: Disc Refiner Dia Of Disc: 1100mm
Speed Of Disc: 600r/min Capacity: 40-800t/day
Motor Power: 400-1250kw Pulp Consistency: 3-5%
High Light:

pulp paper mill

,

pulp pump

Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making



Product Description

Disc refiner / DD Refiner is used for continuous refining of chemical wood pulp, mechanical pulp, and waste paper pulp. The equipment is furnished with various segments of bar pattern and an automatic control system. The equipment can refine pulp with constant power or constant energy consumption, the refining effect is stable.



Specification

Model HT450 HT500 HT550 HT600 HT900 HT1100
Dia of disc(mm) 450 500 550 600 900 1100
Speed of disc(r/min) 980 980 980 980 600 600
Capacity(t/d) 8-80 10-100 10-120 12-150 20-400 40-800
Motor power(kW) 90-160 132-200 160-250 200-315 315-800 400-1250
Pulp consistency(%) 3-5
Maximum operating pressure(Mpa) ≤0.4



Features

1.High efficiency and low power consumption of Double Dis Refiner.
2.Conical Refiner is a horizontal type double disc pulp grinding machine that pulp enters from the two sides of the double-disc area.
3. Claflin Refiner is used for mechanical seal, more dependable.
4. Compact structure of High Consistency Refiner and convenience to maintenance.
5. The pulp outlet and diameter of the inlet pipe are enlarged so that it more adjust to improve the concentration of pulp and enlarging the quantity of flow when Disc Deflaker is working.

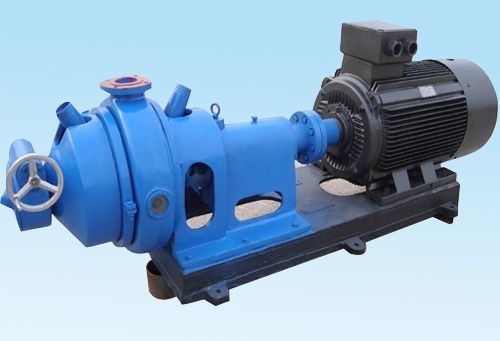

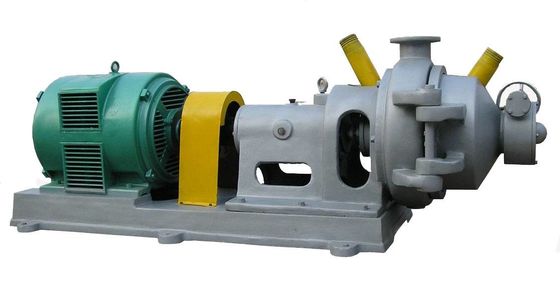

Product Photos

Disc Refiner With 600r/Min Speed For 3-5% Consistency Wastepaper Pulp Making 0
