Synthetic Double Facer 9.5mm Thickness Corrugator Belt

Synthetic Double Facer 9.5mm Thickness Corrugator Belt
Synthetic Double Facer 9.5mm Thickness Corrugator Belt Synthetic Double Facer 9.5mm Thickness Corrugator Belt Synthetic Double Facer 9.5mm Thickness Corrugator Belt

Large Image :  Synthetic Double Facer 9.5mm Thickness Corrugator Belt Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-CQ-002
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: USD 50-150/M2
Packaging Details: Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Delivery Time: 15-20 DAYS
Payment Terms: Western Union, T/T, L/C
Supply Ability: 40000M2/Year
Detailed Product Description
Product: Synthetic Corrugator Double Facer Belt 9.5mm Thickness Kevlar Edges High Temperature Resistance Thickness: 9mm
Width Range: 1000mm - 3200mm Heat Resistance: 220℃
Weight: 7.5kg/㎡ Suitable Speed: ≤ 250m/min
Color: White Edges: Weaved Edges
Material: Synthetic Material
High Light:

9.5mm thickness corrugator belt

,

synthetic corrugator belt

,

corrugator belt for double facer

Synthetic Corrugator Double Facer Belt 9.5mm Thickness Kevlar Edges High Temperature Resistance



Double Facer Belt Descripation:

Synthetic corrugator doube facer belt used for all brand corrugator and it is available for both top and bottom belt.



Double Facer Belt Application



Huatao double facer belts are sprecifical use in the heating and tracking section of all kinds famous corrugators. Huatao group has been processing technical advances in corrugator belts for many years,Till today,we could provide the super quality belts for kinds of demanding application:

Including BHS/AGNATI/MHI/MIT/MARQUIP/TCY/ISOWA and more china corrugator machine. We study and offer the suitable belts for every application



How To Cleaning Maintenance Of Double Facet Belt?



It is better to thoroughly clean the corrugator belt once time per month. Here are some detail steps:
1. Keep the machine running with slow speed;

2. Make the corrugator belt fully moist by water or low pressure steam spray with much water content;
3. Put into some detergent and clear up the dirt & paste scar with soft brush;
4. After cleaning,using water to wash the belt again;
5. During the washing process,it will be greatly help to lay out shallow U-shaped iron plate or shallow groove under the corrugator belt.It will make the cleaning water flow out to the machine outside,keep the heating panel clear and no any corrosion;
6. When necessary, you can turn on steam to heat the heating panel and make the wet corrugator belt drying with slow speed.



Corrugated Belt Specifications:

Material Synthetic Material
Thickness 9.5mm
Width range 1000mm - 3200mm
Heat resistance 220℃ (Edge part up to 350℃)
Weight 7.5kg/㎡
Suitable speed ≤ 300m/min
Belt Seam

Hot Clipper Lacing With Flocking or

Clipper Steel Rubber Filled

Position Top belt and bottom belt

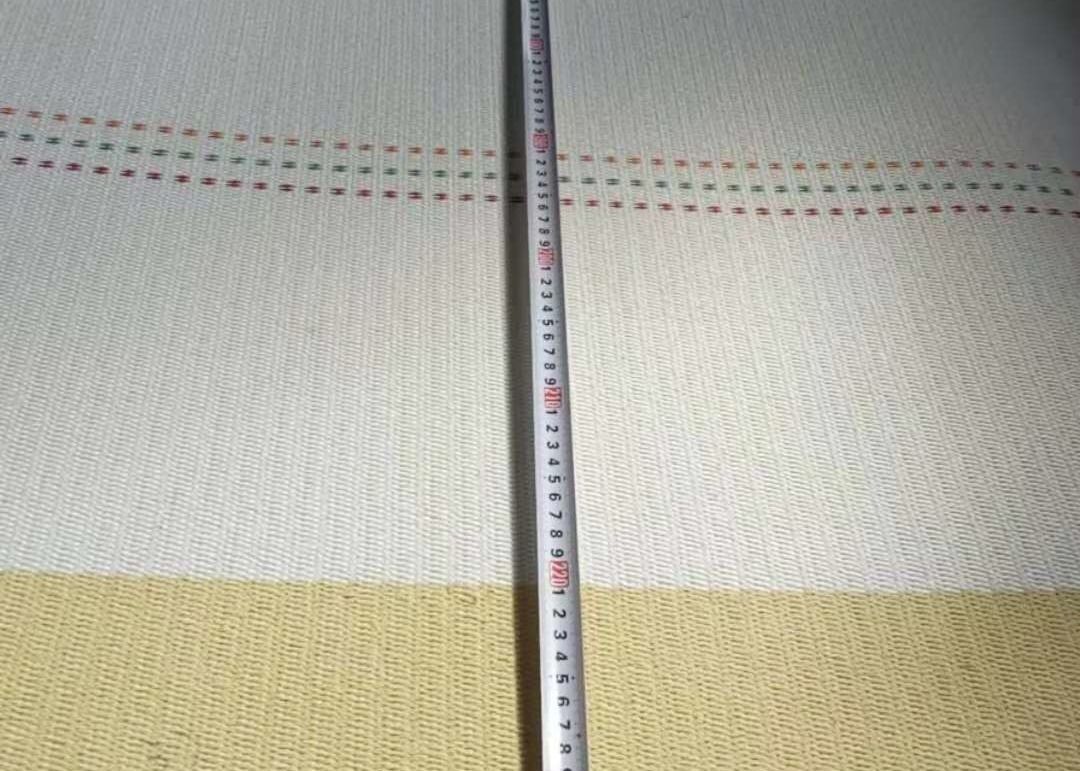

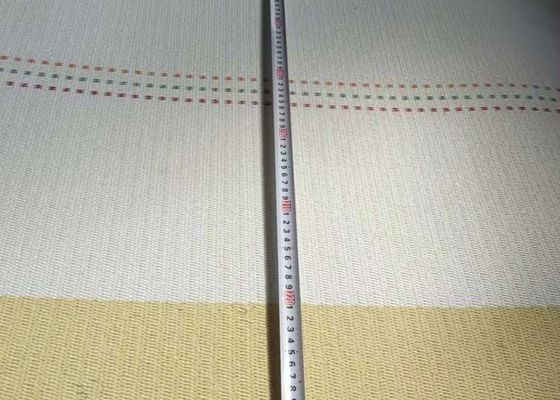

Double Facer Belt Installation pictures from our partners:

  Synthetic Double Facer 9.5mm Thickness Corrugator Belt 0

Synthetic Double Facer 9.5mm Thickness Corrugator Belt 1

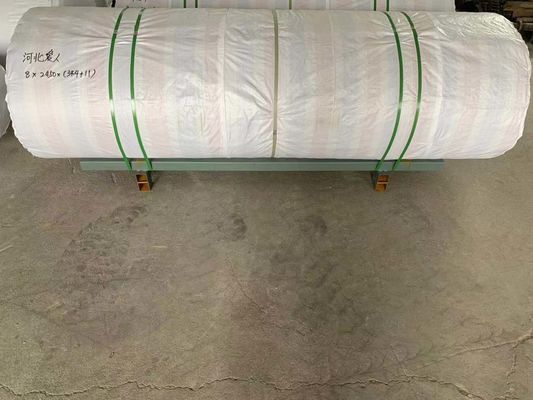

Double Facet Belts Package :



Type-I:Waterproof film+Dampblanket+Plasticbag+pallet

Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet



Synthetic Double Facer 9.5mm Thickness Corrugator Belt 2





Double Facer Belt Offer Required Information

1. Your corrugator brand & Running speed :

2. Top corrugator belt size :

3. Lower Corrugator belt size :



Feature of High Speed Double Facer Belt:

High absorption of moisture and low noise

Available for all brand corrugator

Longlife time running

Suitable as top belt and bottom belt

Low running noise

Suitable for operation speed 100 up to 300 meter per minute

High temperature resistance



FAQ

1) How long about the production time?

Normally within 15-25 working days.



2) How To Pay?

We accept payment terms by T/T(bank transfer),L/C, or Paypal,please let us know any questions



3) If the products can be customized?

Welcome OEM and ODM service, custom designs and dimensions are acceptable.
