Customized Thickness 350 Degree Corrugator Belts 3200mm Width

I'm Online Chat Now
Certification
China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

Customized Thickness 350 Degree Corrugator Belts 3200mm Width

Customized Thickness 350 Degree Corrugator Belts 3200mm Width
Customized Thickness 350 Degree Corrugator Belts 3200mm Width Customized Thickness 350 Degree Corrugator Belts 3200mm Width Customized Thickness 350 Degree Corrugator Belts 3200mm Width

Large Image :  Customized Thickness 350 Degree Corrugator Belts 3200mm Width Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-CQ-002
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: USD 50-150/M2
Packaging Details: Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Delivery Time: 15-20 DAYS
Payment Terms: Western Union, T/T, L/C
Supply Ability: 40000M2/Year
Detailed Product Description
Product: Corrugator Belt Kevlar Edges High Temperature Resistance Up Tp 350 Degree Centigrade Thickness: Can Be Customized
Width Range: 1000mm - 3200mm Heat Resistance: 220℃ (Edge Part Up To 350℃)
Weight: 7.5kg/㎡ Suitable Speed: ≤ 300m/min
Color: White, Yellow Edges: Weaved Edges
Material: Cottom Fiber
High Light:

350 degree corrugator belts

,

3200mm width corrugator belts

,

customized thickness corrugator belts

Corrugator Belt Kevlar Edges High Temperature Resistance up to 350 Degree Centigrade



Cotton Corrugator Belt Descripation



Corrugator belt also named Corrugated board conveyor belt. Huatao's Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Conveyor’s four functions are smooth cardboard delivery, straight run, the pressure evenly distributed pressure in the system to ensure the best hot plate and cardboard dryness.



We provides the first grade corrugator belt with our advanced equipment by experienced engineers. Our corrugator belt is for corrugated board production line ,Raw Meal and developed specially for Double Facer.
Thickness: 6 mm, 9 mm ,9.5 mm,10 mm and other customized thickness.
Width: can be customized.



Corrugator belt has been specially developed for the transport of board and optimization of the drying process, they resist the stress continuously and achieve as long a life as possible. The patented weave structure guarantees correct gluing and fast drying of the board. The use of high quality PET-fibers enables the belt to shed very rapidly the moisture absorbed during the drying process.





Corrugated Belt Specifications:



Material Cotton fiber
Thickness Can be customized
Width range 1 - 3.2 meter
Heat resistance 220℃ (edge part up to 350℃)
Weight 7.5kg/㎡
Suitable speed ≤ 280m/min
Belt Seam

Hot Clipper Lacing With Flocking or

Clipper Steel Rubber Filled

Position Top belt and bottom belt

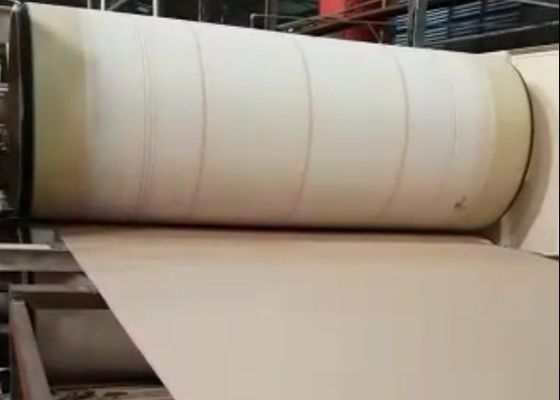

Cotton Corrugator Belt Installation pictures from our partners:



  Customized Thickness 350 Degree Corrugator Belts 3200mm Width 0

Customized Thickness 350 Degree Corrugator Belts 3200mm Width 1







Cotton Corrugator Belts Package :



Type-I:Waterproof film+Dampblanket+Plasticbag+pallet

Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet



Customized Thickness 350 Degree Corrugator Belts 3200mm Width 2





Cotton Corrugator Belt Offer inquiry information



1. Your corrugator brand & Running speed :

2. Top corrugator belt size :

3. Lower Corrugator belt size :



Feature of High Speed Cotton Corrugator Belt:



The better edge wear-resisting will protect the belt and increase of service life.

There is a anti-static character, The belt will produce static electricity during the process of running.our belt will release the static electricity through running rollers.

Benefits:It can prevent from adsorption phenomena between the paper board and hot plate,so it will avoid slip between the belt and paper board so that ensure the quality.





FAQ



1) How long about the production time?

Normally within 15-25 working days.



2) How To Pay?

We accept payment terms by T/T(bank transfer),L/C, or Paypal,please let us know any questions



3) If the products can be customized?

Welcome OEM and ODM service, custom designs and dimensions are acceptable.
