Hb180 Mining Woven Embedded Weaving Wire Mesh Vibrating Screen

small.img.alt small.img.alt small.img.alt

Large Image :  Hb180 Mining Woven Embedded Weaving Wire Mesh Vibrating Screen Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HTS03
Payment & Shipping Terms:
Minimum Order Quantity: 5 square meter
Price: Price accept negotiation
Packaging Details: Standard export packing
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1200 suqare meter per week
Detailed Product Description
Material: 65Mn High Carbon Steel,stainless Steel Application: Filters
Usage: Coal Mining,road Construction Keyword: Anti-abrasion, Wear-resistant, High Tensile
Aperture Tolerance: ±3% Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Technique: Woven Brand Name: Huatao
High Light:

embedded weaving wire mesh vibrating screen


embedded weaving vibrating screen mesh


hb180 wire mesh vibrating screen

Mining Manganese Steel Woven Wire Mesh Vibrating Screen Mesh
Product description
The braided wire achieves extended wear life through highly engineered high carbon and manganese content. It is manufactured with strict ±3% wire opening tolerances to achieve precise material passing. Manganese steel mesh is a mesh product made of 1.6mm-12mm manganese steel wire. Using embedded (mn65-q) knitting method, there is no obvious overlapping point of warp and weft, the surface is flat, and the force is even. The hardness is hb180-230, with good plasticity and toughness.
When subjected to strong impact and friction, the surface will produce strong work hardening due to plastic deformation, and the surface hardness can be increased to above HRC60, thereby obtaining higher wear resistance, while still maintaining high internal plasticity and toughness. After the old surface is worn, the new surface will form a wear-resistant layer, and the service life can reach 4-8 times that of the ordinary screen. Therefore, it is mostly used in large coal mines, and can also be used as a protective net for mechanical vibrating screens, drum screens, electromagnetic high-frequency screens and asphalt mixers.
Product pictures

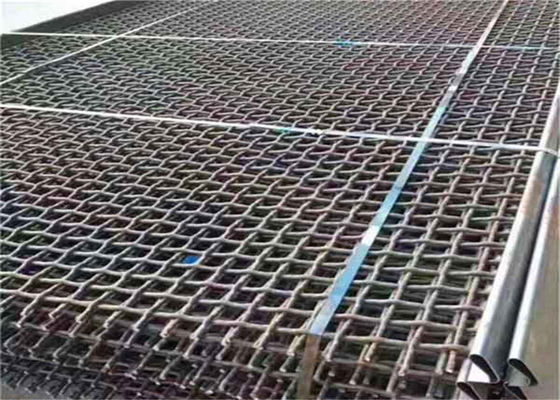

Hb180 Mining Woven Embedded Weaving Wire Mesh Vibrating Screen 0

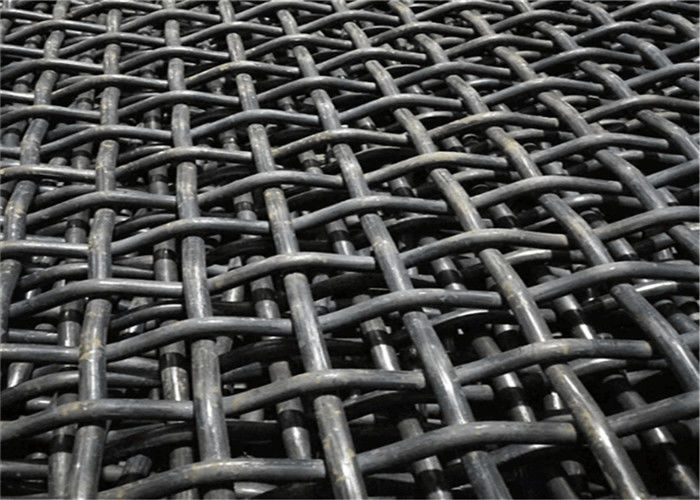

Hb180 Mining Woven Embedded Weaving Wire Mesh Vibrating Screen 1

Place of OriginChina
Material65Mn high carbon steel
TypeWire Cloth
Weave StylePlain Weave
Model Numberwoven wire mesh screen
Brand NameHuatao
Processing ServiceBending, Welding, Decoiling, Cutting, Punching
Product namecustomized 65Mn high carbon steel woven wire mesh screen
MaterialHigh Tensile Steel Wire or S.S. Wire,65MN
Usagemining, quarry, aggregate processing industries
Wire diameter tolerance<0.03mm
Aperture tolerance±3%
Screen length and width tolerance±5mm
Edge TypesFlat Screen/ Wrapped or Hooked
Weaving typeDouble crimped, intermediate crimped, flat top crimped, lock crimped
Mesh typeSquare, Rectangle, Diamond, Corrugated, Triangle
Surface treatmentBrush rust resistant oil

Production Process

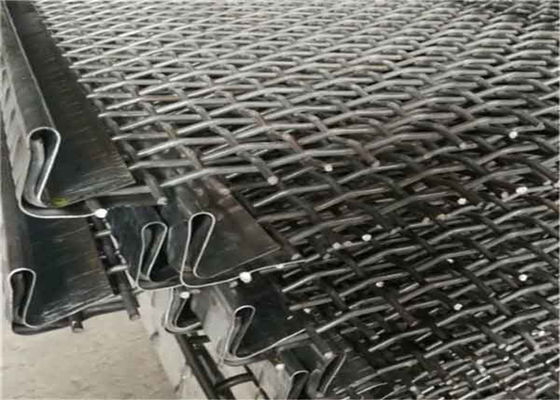

Hb180 Mining Woven Embedded Weaving Wire Mesh Vibrating Screen 2
Packing & Delivery
Hb180 Mining Woven Embedded Weaving Wire Mesh Vibrating Screen 3
1. who are we?
We are based in Hebei, China, start from 2001,sell to Western Europe(40.00%),North America(20.00%),Domestic Market(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
woven wire mesh,self-cleaning screen,pu-mesh

4. why should you buy from us not from other suppliers?
Our products were exported to New Zealand,Australia and American countries, they are widely used in quarry industry and have much longer wear life, especially for wet screening,have very good anti-clogging effect and high cost-effective.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
