Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh

I'm Online Chat Now
Certification
China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh

Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh
Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh

Large Image :  Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HTS03
Payment & Shipping Terms:
Minimum Order Quantity: 5 square meter
Price: Price accept negotiation
Packaging Details: Standard export packing
Delivery Time: 10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1200 suqare meter per week
Detailed Product Description
Material: 65Mn High Carbon Steel,stainless Steel Application: Filters
Usage: Coal Mining,road Construction Keyword: Anti-abrasion, Wear-resistant, High Tensile
Aperture Tolerance: ±3% Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Technique: Woven Brand Name: Huatao
High Light:

engineered vibrating screen wire mesh

,

1.6mm vibrating screen wire mesh

,

1.6mm vibrating screen mesh

Highly Engineered High Carbon Manganese Steel Woven Wire Mesh Vibrating Screen Mesh


Product description

Woven Wire achieves its extended wear life with highly engineered high carbon and manganese content. It is manufactured with a stringent wire opening tolerance of±3% for precise material passing. Manganese steel mesh is a kind of mesh product made of 1.6 mm-12 mm manganese steel wire. It adopts embedded (mn65-q) weaving method, with no prominent warp and weft overlapping point, flat surface and uniform force. The hardness is hb180-230, with good plasticity and toughness.

When subjected to strong impact and friction, the surface will produce strong work hardening due to plastic deformation, and the surface hardness can be increased to more than HRC60, so as to obtain higher wear resistance, while the interior still maintains higher plasticity and toughness.When the old surface is worn, the new surface will form a wear-resistant layer, so the service life can reach 4-8 times of the ordinary screen. Therefore, it is mostly used in large coal mining industry, and can also be used in mechanical vibrating screen, drum screen, electromagnetic high-frequency screen and asphalt mixer as protective nets.


Specification



Material



304, 304L, 316, 316L, 430, 904 and 904L and other special materials.

Weave type



plain weave, twill weave , dutch weave and twilled dutch weave, reverse dutch weave, etc

Roll size



RollWidth:0.914m,1.0m,1.22m,1.5m. 3.0m

Roll Length:15m,30m, other require can be customized

Mesh type



FineMesh(>80mesh); CoarseMesh(<80mesh)

Wire Diameter



0.015mm-2.2mm

Application



screening and filtering , widely used in mine, oil, chemical industry, food industry, pharmaceutical industry and machine-making,etc





Application

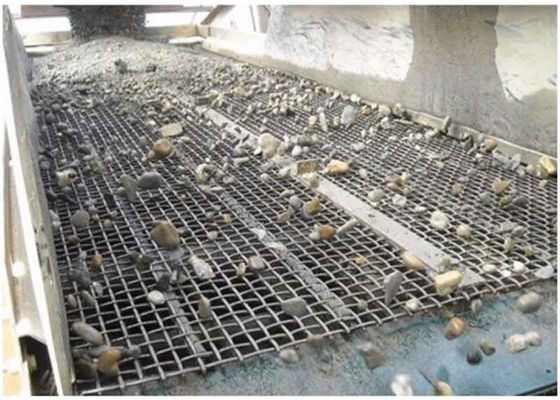

Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh 0

Colored and Black Metallurgy (iron ore, limestone, fluorite, cooling blast furnace slag, coke, and other raw materials), coal
chemicals, building material, water and electricity projects, abrasive waste disposal, quarries and other industries materials washing, screening, grading and other industries. A variety of standard format and size of the new structure of the sieve plate model, particularly strong impact, hardness, high wear-resistance requirements of the occasion.



Product pictures

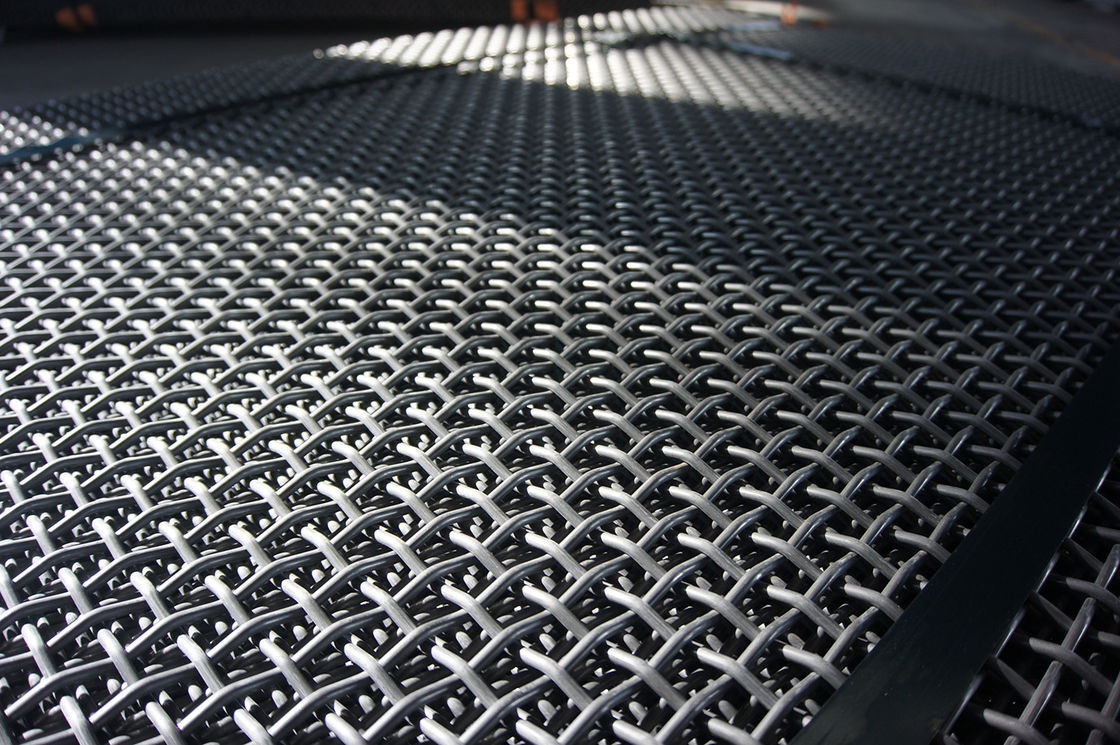

Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh 1

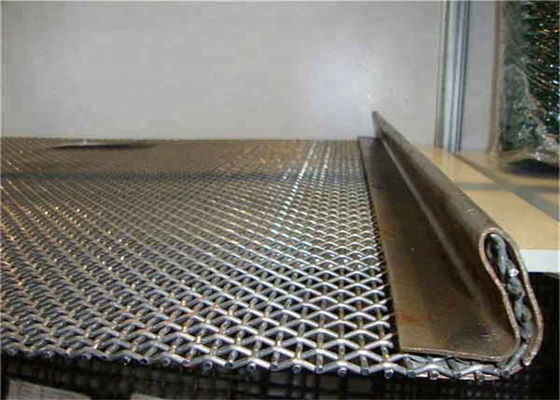

Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh 2

Production Process
Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh 3
Packing & Delivery

Engineered High Carbon Manganese Steel 1.6mm Vibrating Screen Wire Mesh 4
FAQ

1. who are we?
We are based in Hebei, China, start from 2001,sell to Western Europe(40.00%),North America(20.00%),Domestic Market(10.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
woven wire mesh,self-cleaning screen,pu-mesh

4. why should you buy from us not from other suppliers?
Our products were exported to New Zealand,Australia and American countries, they are widely used in quarry industry and have much longer wear life, especially for wet screening,have very good anti-clogging effect and high cost-effective.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
