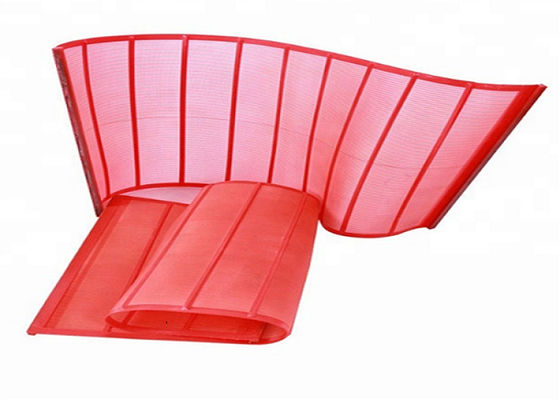

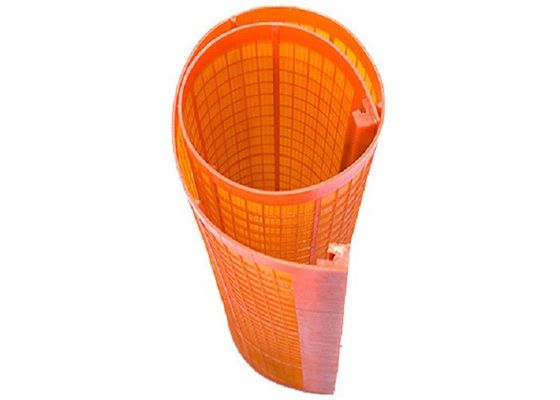

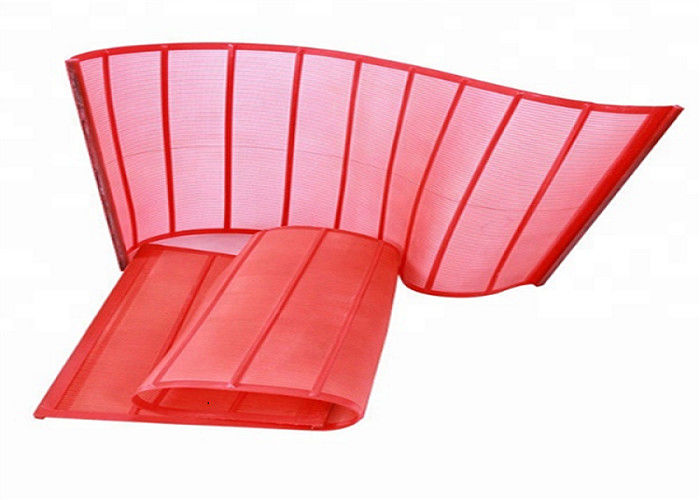

High Frequency 0.39mm Urethane Vibrating Screen Mesh For Mining

large.img.alt
small.img.alt small.img.alt

Large Image :  High Frequency 0.39mm Urethane Vibrating Screen Mesh For Mining Get Best Price

Product Details:
Place of Origin: China
Brand Name: HUATAO
Model Number: HT-013
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: USD 35-45 per piece
Packaging Details: air bubble film + wooden box
Delivery Time: 7 - 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per month
Detailed Product Description
Material: Polyurethane Screen Mesh: 0.075;0.1;0.125;0.15;0.18;0.2;0.25;0.39mm
Color: Orange/red Feature: High Screening Efficiency
Usage: Separation Screening Function: Screening\separation\sorting\sieving
High Light:

urethane vibrating screen mesh

,

urethane mining screen mesh

,

0.39mm Vibrating Screen Mesh

High Frequency Polyurethane Vibrating Screen Mesh for Mining urethane material





Polyurethane Vibrating Screen Mesh Description



Polyurethane is a new type of polymer composite material and belongs to high-tech products, its nature between plastic and rubber, but its performance is much better than the two, is an ideal material to replace them.



Using polyurethane screen mesh can reduce the weight too much and also reduce the cost. It has long service life and low noisy.



The newest product is polyurethane screen mesh which can be installed in stack-sizer. The polyurethane screen mesh increases the lifetime (over 1 year) compared with stainless steel mesh.



Polyurethane Vibrating Screen Mesh Specification



Size (Length*Width) Screen Slit Width(mm) Opening Rate (%) Matched Model

1040x700mm

1220x700mm

0.1 34.1 DZS5x2 Mining Shaker
0.125 35.8
0.15 38.8
0.18 42.7



Screen Parameter Table
Slot Width(mm) 0.075 0.1 0.125 0.15 0.18 0.2
Open Area(cm3) Standard 1680 1920 1940 2100 2260 2350
Wide 2030 2310 2350 2530 2720 2820
The Whole Opening Rate Standard 23% 26% 27% 29% 31% 32%
Wide 24% 27% 28% 30% 32% 33%
Net Area Opening Rate 31% 33% 34% 37% 40% 41%



Polyurethane Vibrating Screen Mesh Main Features

1. Easy installation: metallic hooks design makes it very easy to install or replace.
2. Long Lasting and Maximizes Open Area:Service life is at least 6 months
3. Energy saving and consumption reducing: the weight of polyurethane made screen panel is dramatically reduced compared to traditional steel screen panels of the same size. It will reduce much load onto the vibration machine, power saving and prolong the life of the whole screening equipment.



Polyurethane Vibrating Screen Mesh Usage



The screening process is strict control to the grain size of materials, to eliminate the adverse effects on concentrate grade; slurry on screen surface, under high frequency and small amplitude oscillation, can be layered by density stratification, to improve product grade sharply, because material with high density and small particle is easy to be settled on the screen surface. Vibration parameter of the high frequency screen is controlled by computer, so each vibration parameter can be set up and adjusted individually. The controller of the high frequency screen is designed with function of transient strong vibration, which can regularly clear the sieve surface to prevent holes plugging.



High Frequency 0.39mm Urethane Vibrating Screen Mesh For Mining 0
