Cylinder Mould SS Material Diameter 1.5m High Performance

Cylinder Mould SS Material Diameter 1.5m High Performance
Cylinder Mould SS Material Diameter 1.5m High Performance Cylinder Mould SS Material Diameter 1.5m High Performance

Large Image :  Cylinder Mould SS Material Diameter 1.5m High Performance Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Model Number: SS CYLINDER 1.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: By negotiation
Packaging Details: Wooden crate
Delivery Time: 15 work days
Supply Ability: 10 set per month
Detailed Product Description
Material: Stainless Steel Diameter: 1.5m
Suitable Paper Grade: Kraft Liner Paper, Test Liner Board, Corrugated Paper And White Board Paper Etc. Single Wire Basic Weight: 30-120g/m2
Sizing Concentration: 0.3-0.8% Adaptable Working Speed: 70-180m/min
High Light:

paper mill machine parts

,

paper machine parts

Cylinder Mould SS Material Diameter 1.5m High Performance





1. Paper Making Machine Parts Description



Cylinder mould model: Diameter 1250mm/1500mm/ 1800mm/2000mm×3600mm stainless steel cylinder mould. Suitable Paper grade: Kraft liner paper, test liner board, corrugated paper and white board paper etc.Single wire basic weight: 30-120g/m2.
Sizing concentration :0.3-0.8%.  Adaptable working speed: 70-180m/min.



2. Paper Making Machine Parts Feature



01. Main shaft: adopt 299mm×25mm seamless steel tube, 297×23mm after finished. When the pressure is ten tons, deflection is 0.00000000255m, which can be ignored. Shaft head structure is for 45# carbon steel



02. Spoke: Its material is cast iron. Quantity for inside and outside spoke is 19 pieces. It is with beautiful well-designed and smooth appearance, and without pulp attached. It is by natural aging treatment in order to keep the cylinder mould in shape.



03. Stainless Steel strip: size for the stainless steel of big outer circle is δ1.5×12mm. Inside spokes are inlaid and welded of δ3×25mm stainless steel strip. The stainless steel strip that welded on the outer circle of cylinder mould is parted off from the big steel sheet made in Tisco and Bao Steel.

04. Stainless Steel Bars: 10mm, 70 pcs. The steel adopted in the cylinder mould is all Stainless Steel 304 and it can provide laboratory test report for the material.



3. Paper Making Machine Parts Specification



Diameter Material Untrimmed width
1250mm Stainless Steel 1450mm ~ 4500mm
1500mm Stainless Steel 1450mm ~ 4500mm
1800mm Stainless Steel 1450mm ~ 4500mm
2000mm Stainless Steel 1450mm ~ 4500mm

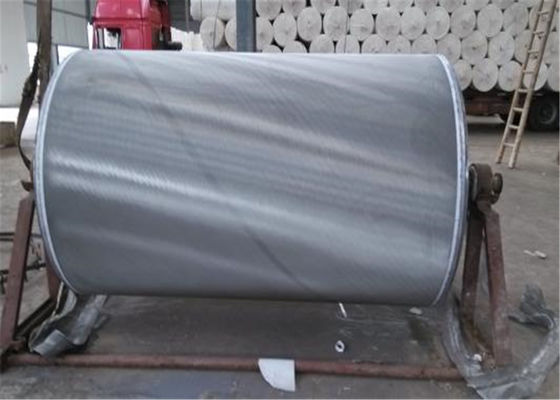

4.  Paper Making Machine Parts Product pictures:


 01.Packing : Use non-fumigation wooden box, it's convenient to customs clearance.Could save customers more time.
 02.Delivery Time:Shipped in 60days after payment



Cylinder Mould SS Material Diameter 1.5m High Performance 0
