SSB Triple Layer Polyester Forming Fabrics Paper Machine Clothing With 13 Meters Width

China SSB Triple Layer Polyester Forming Fabrics Paper Machine Clothing With 13 Meters Width supplier
SSB Triple Layer Polyester Forming Fabrics Paper Machine Clothing With 13 Meters Width supplier SSB Triple Layer Polyester Forming Fabrics Paper Machine Clothing With 13 Meters Width supplier

Large Image :  SSB Triple Layer Polyester Forming Fabrics Paper Machine Clothing With 13 Meters Width

Product Details:

Place of Origin: China
Brand Name: HUATAO
Certification: ISO9001:2008
Model Number: HUATAO-001

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc or 100kg
Price: Price accept negotiation
Packaging Details: 50mm x 50mm x *length wooden box package
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, MoneyGram, D/P, Western Union
Supply Ability: 10000m2 per month
Contact Now
Detailed Product Description
Material: Polyester Color: Blue/green/white
Width: Max13 Meters Lifetime: 3-6 Month
Layers: Single Layer, 2.5 And Triple Layer Fiber Support: High
Application: Paper Making

SSB Triple Layer Polyester Forming Fabrics , Paper Machine Clothing with 13 Meters Width

Forming fabric are designed to retain as much fiber components as possible, meanwhile allowing water to drain through them.





Technical parameters of single layer forming wire

Fabric code Warp density Weft density

Warp Dia

(mm)

Weft Dia

(mm)

Permibility FSI DI
HT40203

40.5~41.5



29.5~30.5 0.15 0.20 285CFM 135 14.1
HT25284

27.5~28.5



22.0~23.0 0.22 0.28,0.28 400CFM 86 11.4
HT25305 27.5~28.5 21.5~22.5 0.22 0.30,0.30 505CFM 77 11.3




Forming fabric can be divided into single, 1.5, double, 2.5, triple (SSB) layer. Which applicable to the machine speed up to 2000m/min.

Forming fabric is characterized by smooth surface without edge curl, good stability and less elongation, unique drainage channel without leaking, good runnability with low load, good fiber support and excellent formation, good life potential.

View more information about Paper Machine Clothings from www.papermachineclothings.com

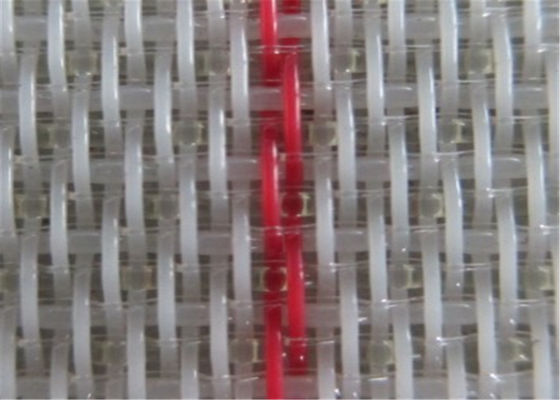

Product Pictures:

SSB Triple Layer Polyester Forming Fabrics Paper Machine Clothing With 13 Meters Width    SSB Triple Layer Polyester Forming Fabrics Paper Machine Clothing With 13 Meters Width
