| Use Temp(oC): | 190~650 | Thermal Conductivity(0oC): | 0.018-0.023W/m.K |
|---|---|---|---|
| Density: | ≤220 Kg/m3 | Width: | 1500 Or As Request |
| Size: | As Request | Warranty: | 3 Years |
| High Light: | aspen aerogel spaceloft,silica aerogel blanket |
||
Tensile Preservative Heat Insulation Aerogel Insulation Blanket
1. Aerogel Insulation Blanket DESCRIPTION
Aerogel Insulation Blanket is one of our hot sale products. It has chosen the acupuncture fiber as a substrate, and then the aerogel is compounded into the substrate. It has thermal insulation performance and surface hydrophobicity and excellent flame retardant properties. The thermal conductivity at room temperature in 0.016 (W/m.K), is lower than the static air; The aerogel product is of high hydrophobicity; at room temperature, the water repellent rate of can be up to 99%; Excellent flame retardant performance and fire rating have met the national A1 standard. And the temperature of the product using range is wide, Joda Aerogel fiberglass blanker could be used according to the different requirements in -200 ~ 650 DEG C for adiabatic pipe and tank, using the furnace of industrial equipment and pipeline.
2. Aerogel Insulation Blanket SPECIFICATION
Thickness: 3/5/6/10mm
Roll Length:36M/48M/50M
Width:1500MM
Color: white/maroon
Use Temperature:-50~650 C
Dimensional Stability(GB/T8811):1%
Reshrinking Temperature(GB/T11835): 800 C
Compressive Property(GB/T13480): @10%,20Kpa
@25%,150Kpa
Flame Rating(GB/T8624): A
Tensile strength(GB/T17911): 1000KPa
Thermal conductivity(GB/T 10295): 25C,0.020W/(M·K)
200C,0.028W/(M·K)
300C,0.035W/(M·K)
400C,0.044W/(M·K)
500C,0.069W/(M·K)
650C,0.095W/(M·K)
If you have any questions or demands, kindly contact our professional team, we will give you the best solution according to your machine, operation temperature, and our rich production experience.
3. Aerogel Insulation Blanket ADVANTAGES
| Lower thermal conductivity coefficient |
Thermal conductivity coefficient less than 0.016w/(m,k)at room temperature, several times or even dozens of times lower than traditional heat preservation materials, and with better heat preservation effect. |
| The thinnest and lightest thermal insulating material | Under the same heat preservation effect, the dosage of our company’s SiO2 aerogel composite material is only 1/5 to 1/3 of traditional materials’. So it can be applied to dense pipelines and narrow space and achieve a good effect of heat or cold preservation. And greatly convenient for installation and save the cost of the protective layer. |
| Water-proof and moisture-proof, easy to store | It is hydrophobic and porous with a hydrophobicity of 99%. |
| superior fireproof performance with safety class of gr.A1 | SiO2 aerogel composite material has excellent fire resistance and smoke resistance. In a fire or accident, this property can well protect the pipeline and equipment and fight for more time for disaster relief and response. |
| resistant to high pressure, acceptable brutal construction | |
| As a new green and environmentally friendly material, it can be safely used and easily installed. |
The rolled SiO2 aerogel insulation composite can meet the needs of all shapes or designs, and it’s easy to cut and install according to the complex shapes, bending, and space limitations.
|
4. Aerogel Insulation Blanket FEATURE
It has thermal insulation performance and surface hydrophobicity and excellent flame retardant properties.
5. Aerogel Insulation Blanket APPLICATION
Petroleum, Chemical Industry, Electric Power, etc. in the Pipeline and Equipment Insulation, be used in Aeronautics and Astronautics Fields.
6. Aerogel Insulation Blanket Packing:

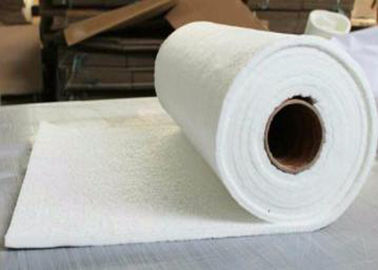

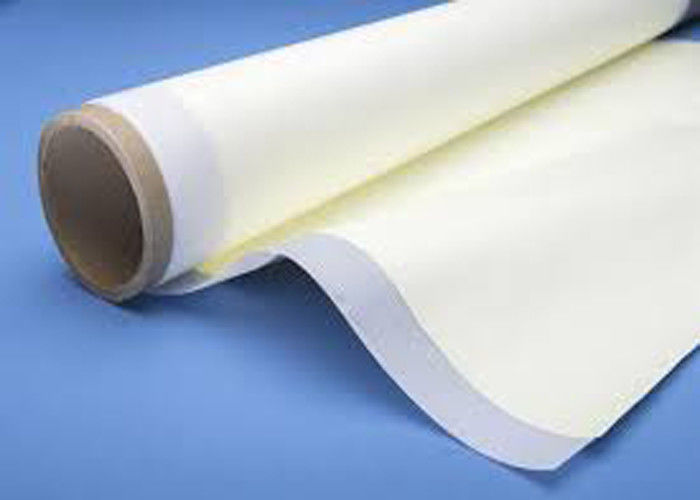

Our aerogel insulation blanket was packed in roll, like the photo show:
