New Or Second Hand 15-30T/D Capacity Reject Separator

New Or Second Hand 15-30T/D Capacity Reject Separator
New Or Second Hand 15-30T/D Capacity Reject Separator New Or Second Hand 15-30T/D Capacity Reject Separator

Large Image :  New Or Second Hand 15-30T/D Capacity Reject Separator Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO
Model Number: HTPZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: By negotiated
Packaging Details: Poly-Wooden Box or Steel Plate
Delivery Time: 4-6 weeks
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 10 Set/month
Detailed Product Description
Type: Pulping Equipment Capacity(t/d): 15-30,30-60
Condition: New Or Second Hand Warranty: One Year
Power(W): 7.5-110 Material: SUS316#
High Light:

kraft paper making machine

,

paper production line

New Or Second Hand 15-30T/D Capacity Reject Separator





1.Reject Separator Description



Reject separator is the main equipment used for defibering and separating impurities in tailing pulp.It is mainly used in screening system as a part of waste paper processing line or used with other vibration screen It use of closed operation, nosplash, improve the working environment, continuous slag, clogging the sieve, the treatment effect is good, with ease fiber function, reducing fiber loss, reduce production costs.



The Reject Separator pulp and paper equipment /reject separator for paper making is used in paper pulp and wood pulp making process.



Under the normal pressure, the stock flows into rejects separator. Affected by the centrifugal forcefrom highspeed rotating rotor, accepts are separated from the rejects by passing through the screen plate. At the same time, with the rotating effect of the rotor, the accepts will flow into the next process and the rejects will be defibrillated again. Furthermore, the rejects will be flushed continuously with water in order to recycle the stock in the rejects. Low consumption in energy and cost reduction. After processed, the rejects are with less fiber and less water.



2.Reject Separator Main Technical Parameters



Type HT-1 HT-2 HT-3
Standard:mm Φ280 Φ380 Φ450
Inlet consistency: % 1-3.5 1-3.5 1-3.5
Reject consistency: % 15-20 15-20 15-20
Capacity: t/d 10-20 20-35 45-60
Power of motor: kw 37 45-55 55-75




3.Reject Separator Advantages

  • Tailing treatment,tri-function,defibering,screening,slag-discharging.
  • Less fibre loss,low energy consumtion,easy and simple to hangle,good working environment
  • Litter energy consumption,low noise,meet the energy conservation the environmental protection requirment.
  • The pulp is other tail screen easier to operate and easy maintenance,fiber produce high and keep recoveny of70%.
  • Pulp only need to atmospheric pressure,operation space for operation closed,no unclean splas
  • High speed revolving blade can discongest paper scrap effectively.
  • Rotor’s fling with spray system’s washing action will recover fiber effectively.
  • Operated in normal pressure, fiber retention rate is high and recovery rate can reach 70%.

4.Reject Separator Description



(1)Used for fiber relief and impurities separate for tailing in the coarse screen system for waste paper pulp.

(2) Specially designed rotor produce centrifugal force in the process of high speed rotation and backwash water can relief pulp effectively, achieve pulp and impurities easily separate.

(3) Closed Working condition, clean environment.

(4) Openable upper cover makes it easy and convenient to maintain.



5.Reject Separator Application



It is mainly used for treating tailing stock in waste paper coarse screening system.



6.Reject Separator Working Principle



Reject separator is an ideal equipment in the waste paper pulping system using close operation system, no water splash, changing the working condition. Continuous discharge, not easy to jam sieve plate, with good treatment effect. Which also have fiber relief function, reduce the fiber loss and production cost.

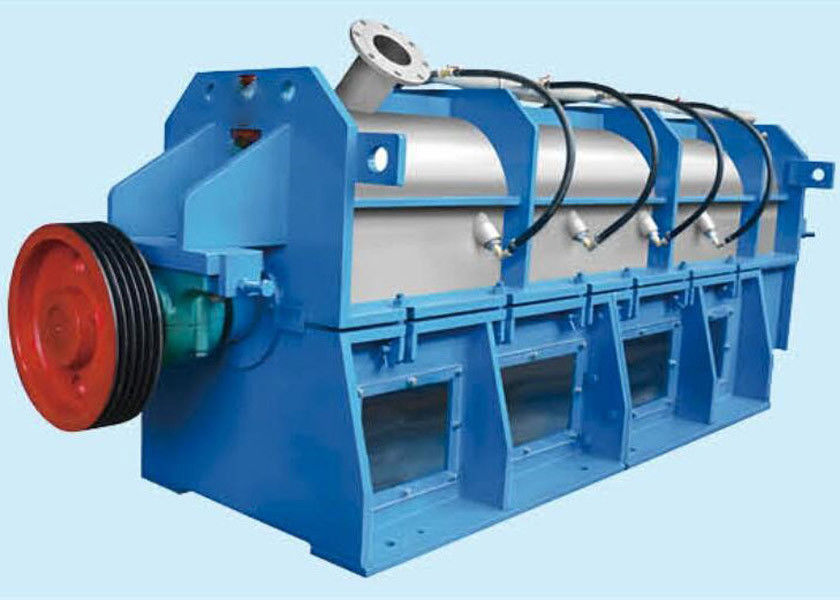

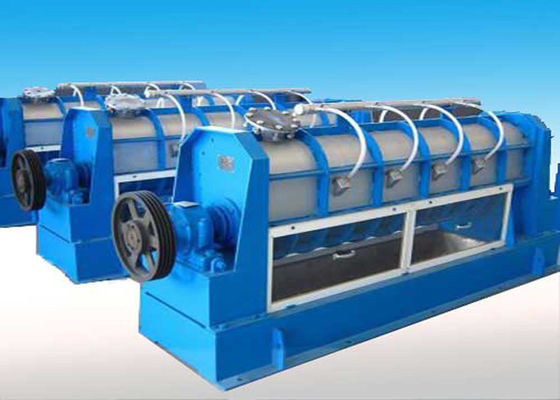

7.Reject Separator Pictures


New Or Second Hand 15-30T/D Capacity Reject Separator 0New Or Second Hand 15-30T/D Capacity Reject Separator 1
