Product Details:
Payment & Shipping Terms:
|
| Type: | Pulping Equipment | Dimension(L*W*H): | Depend On The Type |
|---|---|---|---|
| Voltage: | 380V | Computerized: | No |
| Function: | Breaking And Filtrating Waste Paper | Capacity(t/d): | 20-800T |
| Application: | Paper Industry | Raw Material: | OEM/ODM |
| High Light: | pulp chest agitator,pulp and paper machinery |
||
Paper Recycling Production Line Of Paper Pulp Cleaning High Consistency Cleaner

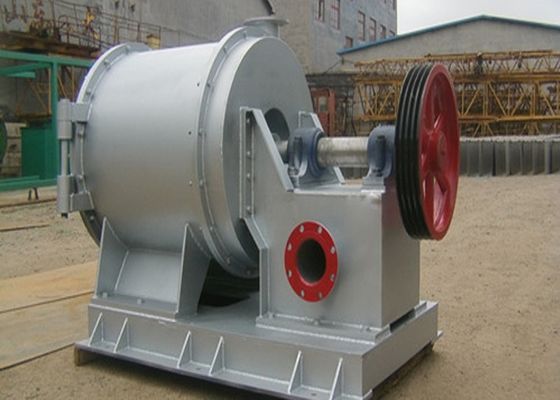

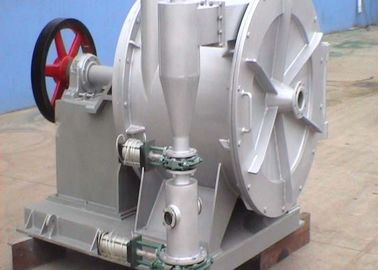

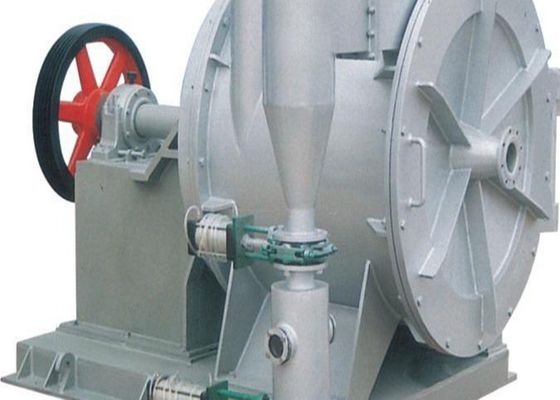

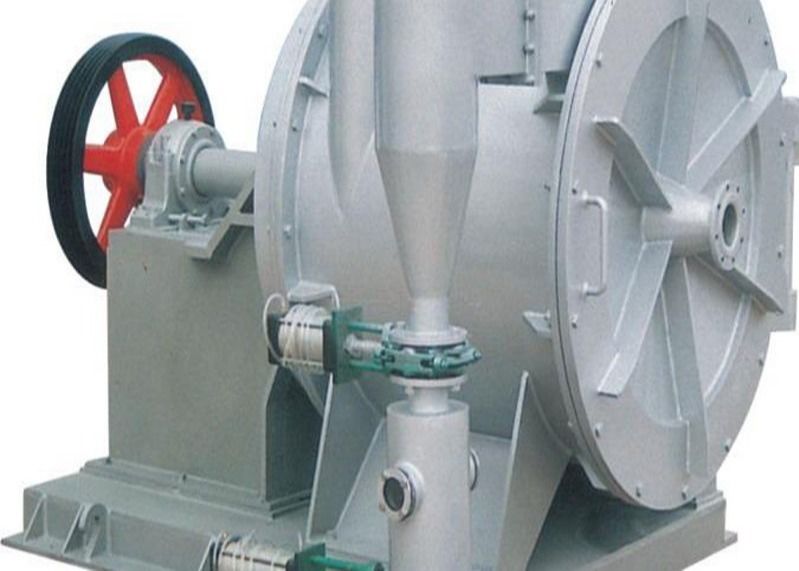

Pulp Machine Fiber Separator Introduction
Pulp machine fiber separator machine is a combination of one sealed horizontal hydrapulper and a light & heavy impurity remover. It adopts drum and turbo structure so has higher efficiency.With compact structure,high efficiency,it has functions such as pulp beating,impurity removing ,coarse screening etc,thus simplifies the process of dealing with wasted paper greatly, and reduces the energy consumption.
Application
It is used for removing heavy impurities,reduce the wear of the next equipments,improve the quality of pulp material
Unit price 15-20usd/pc
Port: Shanghai, China
Production Capacity:1000PCS/Month
Payment Terms:L/C, T/T, Western Union, Paypal, Money Gram
Certification:ISO 9001:2008, CE
Manufacturing Process: Cnc Milling
Material:Stainless Steel
Accept in:380-400L/Min
Into The Plasma Pressure:0.2-0.4MPa
Into The Plasma Concentration:0.6-1.2%
Features
1. Suitable for processing all kinds of waste paper (including low-level waste paper) and reducing the pre-processing degree of the raw materials, thereby reducing the production cost.
2. Be able to secondarily defiber the pulp stock and then separate the light impurities and clear the heavy impurities.
3. Improve the production capacity of Hydrapulper (the diameter of the sieve hole of Hydrapulper can be expanded to Ø20㎜), and reduce the energy consumption about 15%.
4. It can automatically clean sieve hole, obtain high quality of pulp stock and reduce the fiber loss. Meanwhile, it can remove more than 90% of impurities and improve the quality of the paper.
Advantages
Wear resistance ceramics cone,long service life.
Specially designed long cone has small taper angle and fine cleaning efficiency.
Equipment with PLC control cabinet,convenient and easy to control,sufficiently discharge impurities.
Type
Intermittent automatic slag discharge
Continuous open slag discharge.
Main Technical Parameters
| Type | HT-11 | HT-12 | HT-13 | HT-14 | HT-15 | HT-16 | HT-17 |
| Throughput(L/min) | 800-1200 | 1400-1800 | 2000-2800 | 3000-4500 | 5000-6000 | 6500-8000 | 9000-12000 |
| Inlet Consistency(%) | (H)2.5-5 (M)1-2.5 | ||||||
| Inlet Pressure(MPa) | 0.15-0.35 | ||||||
| Reject | Auto & Manual | ||||||
(1) Packaging
Products will be packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections. Every part of export machinery will be in standard export wooden package, waterproof film, straw rope, carton box ,etc, which will ensure the intactness of the products.
(2) Delivery
1. sea transportation is from qingdao seaport or other ports.
2. the delivery time is decided by your needed machines or machine parts. But it also follows your needs.
