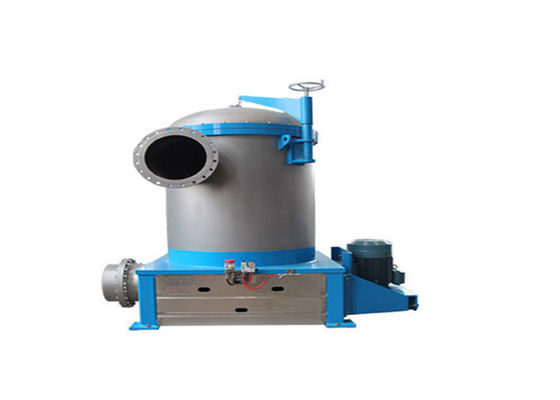

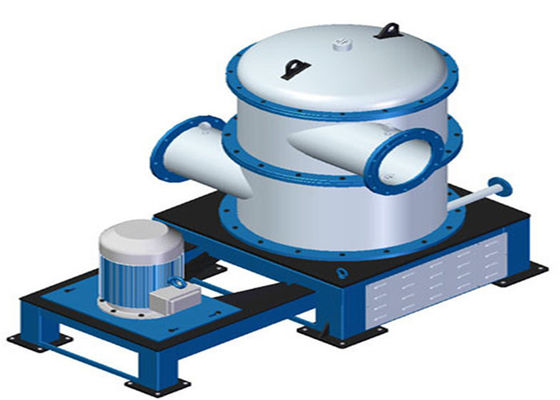

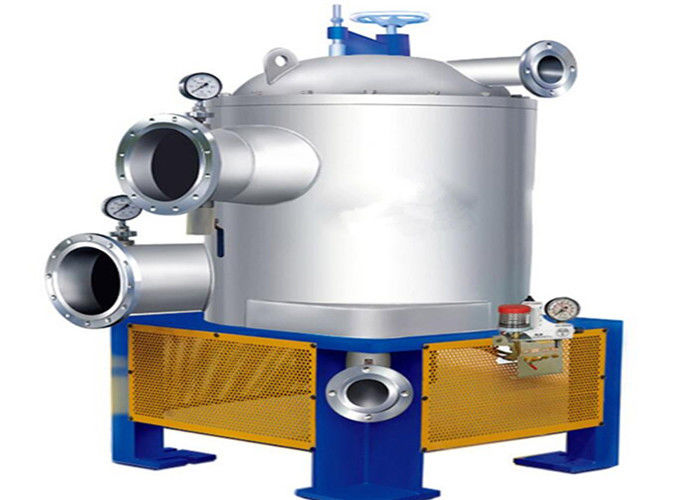

Paper Pulp Screening And Cleaning Up Flow Pressure Screen

Paper Pulp Screening And Cleaning Up Flow Pressure Screen
Paper Pulp Screening And Cleaning Up Flow Pressure Screen Paper Pulp Screening And Cleaning Up Flow Pressure Screen Paper Pulp Screening And Cleaning Up Flow Pressure Screen

Large Image :  Paper Pulp Screening And Cleaning Up Flow Pressure Screen Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HTU02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price accept negotiation
Packaging Details: Standard export packing
Delivery Time: 10-15 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Detailed Product Description
Screen Basket Material: Stainless Steel 316L Rotor Material: Stainless Steel 304
Working Consistency: 0.3-1.2% Warranty: One Year Guarantee Time
Place Of Origin: Hebei, China Function: Screening Accept Pulp From Pulp
Weight: 800-5000kg Dia Of Screen Hole: 1.2-2mm
High Light:

paper pulp screening

,

pulp screening and cleaning

,

pulp washing and screening

Paper Pulp Screening Up-Flow Pressure Screen





Description of upflow pressure screen:



It can be used as a screening equipment of paper stock before paper machine.It can also be used as a fine screening in pulp production system.



Design Feature of upflow pressure screen:


The rotor gets rid of the screen cylinder in the codition of centrifugal force,that prolongs the life for screen cylinder with less abrasion.

Separate the impurity from the fiber effciency to avoid slot pluging in the condition of proper flow low plusing force.

Its performance can promote the paper machine to be in proper running with less broken paper.

Great throughput with more long fiber,Lower power consumption;high screening effciency with less rejects.



Specification of upflow pressure screen:



Screen Area(m2) 0.6 0.8 1.2 2 3 4
Hole diameter(mm) φ1.6-3.0 φ1.6-3.0 φ1.6-3.0 φ1.6-3.0 φ1.6-3.0 φ1.6-3.0
Inflow Consistency(%) 1.0-3.0 1.0-3.0 1.0-3.0 1.0-3.0 1.0-3.0 1.0-3.0
Production(t/d) 45-90 55-105 80-160 120-250 160-450 200-550
Power(kw) 30-55 35-75 75-110 110-200 160-250



200-250




Main features of upflow pressure screen:


Good adaptability with high production capacity.

High production effciency with high flow speed.

It is advantage to be as fine screen for wastee paper.The screen cylinder gains long life high through with the bar structure.

It is advantage to clean up the screen slot to be in the structure of multi-foil rotor with high pulsing frequecy.

Guarantee the continuous screening by increasing the acting time for negative pressure pulse.The multi-foil rotor promotes the aial mixture for the stock to avoid stock thickening in the screening process.

High removal of the adhesive materials.

Be more maintainability with simple structure;and lower power consumption.



Advantages of upflow pressure screen:



1)Inflow screen,even stock flow,lower impulse
2)Good separation of impurities and fiber bundle
3)High throughput,lower energy consumption
4)High efficient screening ,and as result paper maching operation is stable with less break.
5)Lower reject rate and higher long fiber obtained.



Paper Pulp Screening And Cleaning Up Flow Pressure Screen 0Paper Pulp Screening And Cleaning Up Flow Pressure Screen 1

FAQ:

1.Q:Can you put my brand name on these products?

A:Yes, we can.



2.Q:What is your usual payment conditions?

A:FOB 30% advanced payment, full payment before delivery, by T/T.



3.Q:Can you provide sample for us?

A:It depends on. If the products you need are standard and we have stock, we will provide.

If not, we can not provide for you immediately. The freight will be payed by buyer.



4.Q:Why choose us?

A:Direct price, gurantee quality, 24H service.
