Double Facer 8mm Thickness Cotton Corrugator Belt

I'm Online Chat Now
Certification
China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

Double Facer 8mm Thickness Cotton Corrugator Belt

Double Facer 8mm Thickness Cotton Corrugator Belt
Double Facer 8mm Thickness Cotton Corrugator Belt Double Facer 8mm Thickness Cotton Corrugator Belt Double Facer 8mm Thickness Cotton Corrugator Belt

Large Image :  Double Facer 8mm Thickness Cotton Corrugator Belt Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-CQ-002
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: USD 50-150/M2
Packaging Details: Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Delivery Time: 15-20 DAYS
Payment Terms: Western Union, T/T, L/C
Supply Ability: 40000M2/Year
Detailed Product Description
Product: Cotton Corrugator Double Facer Belt 8mm Thickness Kevlar Edges High Temperature Resistance Thickness: 8mm
Width Range: 1000mm - 3200mm Heat Resistance: 220℃ (Edge Part Up To 350℃)
Weight: 7.5kg/㎡ Suitable Speed: ≤ 300m/min
Color: Yellow, White Edges: Weaved Edges
Material: Cotton
High Light:

double facer Corrugator Belt

,

8mm thickness Corrugator Belt

,

cotton Corrugator Belt

Cotton Corrugator Double Facer Belt 8mm Thickness Kevlar Edges High Temperature Resistance



Cotton Corrugator Double Facer Belt Descripation:



The belt can use to all brands corrugator for corrugated cardboard production, and it available for both top and bottom belt, edge part temperature resistance up to 350℃



Corrugated Belt Application



Huatao Corrugator double facer belts are sprecifical use in the heating and tracking section of all kinds famous corrugators. Huatao group has been processing technical advances in corrugator belts for many years,Till today,we could provide the super quality belts for kinds of demanding application



How To Cleaning Maintenance Of Corrugator Double Facer Belt?



It is better to thoroughly clean the corrugator double facer belt once time per month. Here are some detail steps:
1. Keep the machine running with slow speed;

2. Make the corrugator belt fully moist by water or low pressure steam spray with much water content;
3. Put into some detergent and clear up the dirt & paste scar with soft brush;
4. After cleaning,using water to wash the belt again;
5. During the washing process,it will be greatly help to lay out shallow U-shaped iron plate or shallow groove under the corrugator belt.It will make the cleaning water flow out to the machine outside,keep the heating panel clear and no any corrosion;
6. When necessary, you can turn on steam to heat the heating panel and make the wet corrugator belt drying with slow speed.



Corrugated Belt Specifications:

Material Cotton fiber
Thickness 8mm
Width range 1000mm - 3200mm
Heat resistance 220℃ (edge part up to 350℃)
Weight 7.5kg/㎡
Suitable speed ≤ 300m/min
Belt Seam

Hot Clipper Lacing With Flocking or

Clipper Steel Rubber Filled

Position Top belt and bottom belt





Corrugator Double Facer Belt Installation pictures from our partners:

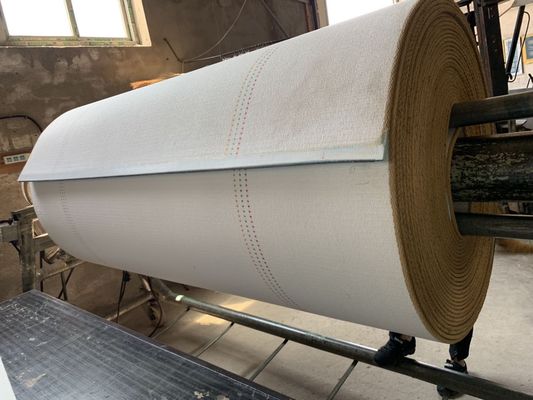

  Double Facer 8mm Thickness Cotton Corrugator Belt 0

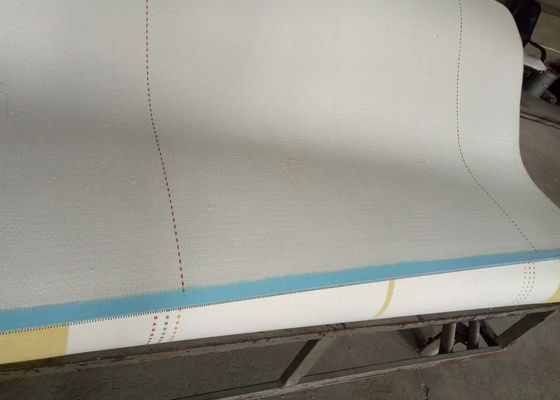

Double Facer 8mm Thickness Cotton Corrugator Belt 1







Corrugator Double Facer Belts Package :



Type-I:Waterproof film+Dampblanket+Plasticbag+pallet

Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet

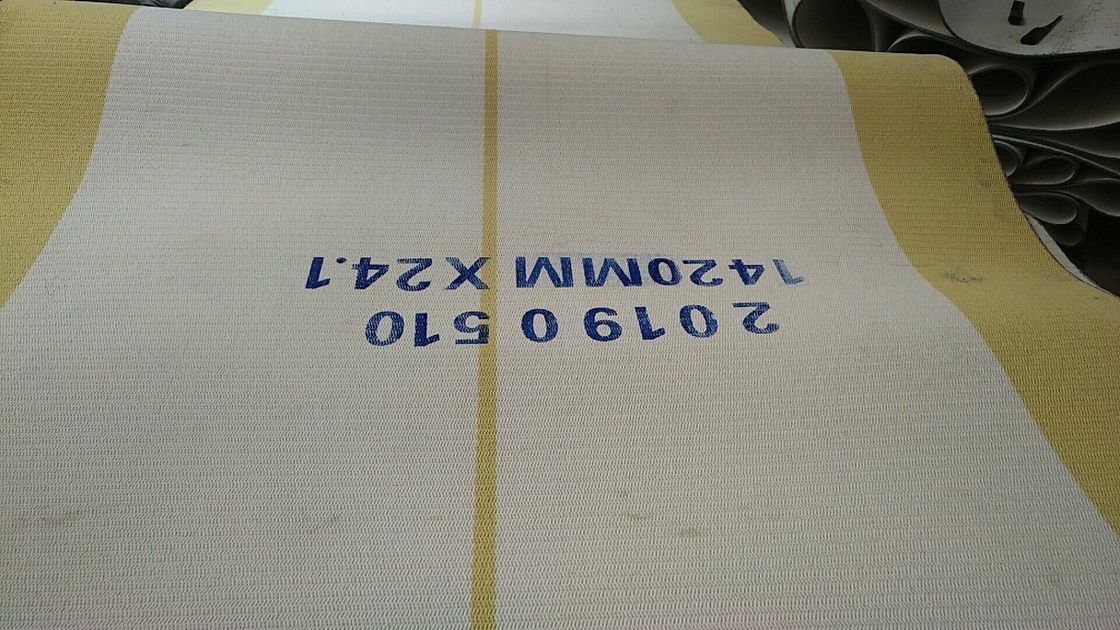

Double Facer 8mm Thickness Cotton Corrugator Belt 2





Corrugator Double Facer Belt Offer

1. Your corrugator brand & Running speed :

2. Top corrugator belt size :

3. Lower Corrugator belt size :



Feature of High Speed Corrugator Double Facer Belt:

High absorption of moisture and low noise

Suitable for averange liner machine speed

Longlife time running

Suitable as top belt and bottom belt

Used on all corrugators high tearing resistance

Long life time running High abrasion resistance

Moisture absorption Heat resistance Low noise

Suitable for machine speed 100 - 300M/min



FAQ

1) How long about the production time?

Normally within 15-25 working days.



2) How To Pay?

We accept payment terms by T/T(bank transfer),L/C, or Paypal,please let us know any questions



3) If the products can be customized?

Welcome OEM and ODM service, custom designs and dimensions are acceptable.
