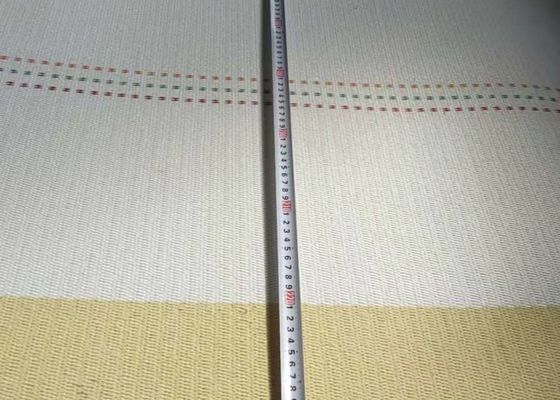

8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance

8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance
8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance 8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance 8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance

Large Image :  8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-CQ-002
Payment & Shipping Terms:
Minimum Order Quantity: No MOQ
Price: USD 50-150/M2
Packaging Details: Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Delivery Time: 15-20 DAYS
Payment Terms: Western Union, T/T, L/C
Supply Ability: 40000M2/Year
Detailed Product Description
Product: Corrugator Belt 8-10mm Thickness Kevlar Edges High Temperature Resistance Thickness: Customized
Width Range: 1000mm - 3200mm Heat Resistance: 220℃ (Edge Part Up To 350℃)
Weight: 7.5kg/㎡ Suitable Speed: ≤250m/min
Color: White, Yellow Edges: Weaved Edges
Material: Synthetic Fiber
High Light:

kevlar edges corrugator belt

,

10mm thickness corrugator belt

,

8mm thickness corrugator belt

Cotton Corrugator Belt 10mm Thickness Kevlar Edges High Temperature Resistance up tp 350 Degree Centigrade



Cotton Corrugator Belt Descripation:

Constructed of a 4-layer woven base and 100% polyester fibers and yarns, Huatao's corrugator belt is tough enough to withstand the heat and stress of today’s modern double-backers, yet permeable enough to allow rapid drying. Our patented processing technique and excellent seam-to-belt uniformity provides an extra measure of safety against board marking.

In addition, the belt’s mechanical and chemical processing have been optimized for improved durability, caliper retention and resistance to contamination. It allows excellent pressure transfer on all systems, eliminates stretching and contraction, and is more resistant to thermal degradation.



How To Cleaning and Maintenance Of Cotton Corrugator Belt?

It is better to thoroughly clean the cotton corrugator belt once time per month. Here are some detail steps:
1. Keep the machine running with slow speed;

2. Make the corrugator belt fully moist by water or low pressure steam spray with much water content;
3. Put into some detergent and clear up the dirt & paste scar with soft brush;
4. After cleaning,using water to wash the belt again;
5. During the washing process,it will be greatly help to lay out shallow U-shaped iron plate or shallow groove under the corrugator belt.It will make the cleaning water flow out to the machine outside,keep the heating panel clear and no any corrosion;
6. When necessary, you can turn on steam to heat the heating panel and make the wet corrugator belt drying with slow speed.



Corrugated Belt Specifications

Material Cotton fiber
Thickness 10mm
Width range 1000mm - 3200mm
Heat resistance 220℃ (edge part up to 350℃)
Weight 7.5kg/㎡
Suitable speed ≤ 300m/min
Belt Seam

Hot Clipper Lacing With Flocking or

Clipper Steel Rubber Filled

Position Top belt and bottom belt

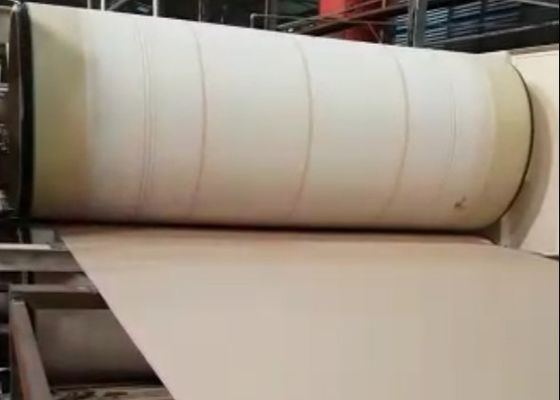

Cotton Corrugator Belt Installation pictures from our partners:



  8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance 0

8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance 1







Cotton Corrugator Belts Package

Type-I:Waterproof film+Dampblanket+Plasticbag+pallet

Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet



8-10mm Thickness Kevlar Edges Corrugator Belt High Temperature Resistance 2





Corrugator Belt Offer inquiry information

1. Your corrugator brand & Running speed :

2. Top corrugator belt size :

3. Lower Corrugator belt size :



Feature of Corrugator Belt

(1) Good air permeability
(2) Water absorption
(3) Wearable
(4) Geometric stability
(5) No shrinkage
(6) Long lifetime: 750 working days or 45 million meters carton board
(7) High speed corrugator belt with Kevlar: Yellow color, both side add 15cm – 30cm. The purpose is to increase the performance of anti-high temperature and increase service life.



FAQ



1) How long about the production time?

Normally within 15-25 working days.



2) How To Pay?

We accept payment terms by T/T(bank transfer),L/C, or Paypal,please let us know any questions



3) If the products can be customized?

Welcome OEM and ODM service, custom designs and dimensions are acceptable.
