| Material: | HDPE | Brand Name: | Huatao |
|---|---|---|---|
| Thickness: | 0.9-1.5mm | Height: | 50-200mm |
| Welding Joint Tension Strength: | 100N,120N,140N/cm | Welding Distance: | 300-1000mm |
| High Light: | geotextile drainage fabric,geotextile road fabric |
||

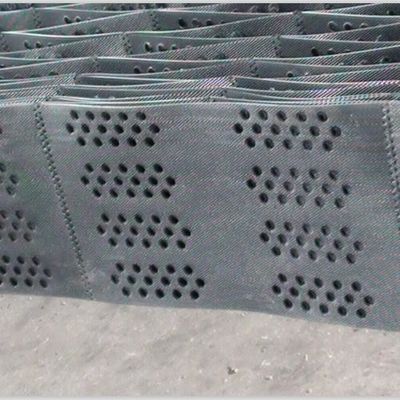

Hdpe Geocell Smooth Surface 100mm Height Geosynthetics HDPE Geocell With Hole, Black Color
Hdpe Geocell specifications
Good quality High strength HDPE Geocell factory
Geocell is a net-shaped cell structure made by welding high intensity thermoplastic
sheet. It is flexible: folded during transportation, stretching out and beingfilled with stone or concrete during service, and forming into struct with powerful
lateral confinement and rigidity.
Hdpe Geocell Features
1 Light weight, wear-resistant, chemical stability, light oxidation aging, anti-acid/alkali corrosion, applied to different geological conditions, such as saline soil, desert, etc.
2 Wide temperature range, high tensile strength, good rigidity and toughness, good load capacity and anti-erosion ability.
3 Size is relatively stable, change the height and welding distance can meet the needs of different projects.
4 Retractile, easy to transport.
5 Easy to use, can use the local materials and achieve rapid construction, reduce construction costs.
6 Can be used repeatedly.
Hdpe Geocell Application
1 To stable the roadbed of highway/railway.
2 To bear the load of dyke, retaining wall.
3 To improve the watercourse of shallow river.
4 To support the pipeline and sewer.
5 To be used as independent wall, wharf and breakwater, etc..
6 To be used for the regulation of the desert, beaches, river bed and river bank.
Performance parameter of geo-cell
Hdpe Geocell Technical indexes
|
Product Type |
Height(mm) |
Welding Distance(mm) |
Thickness (mm) |
Tensile Strength of Welding Points(N/cm) |
Tensile Strength of Connection of Cells(N/cm) |
Tensile Strength at Yield of Each Sheet(N/Mpa) |
|
Flat and Not Perforated |
50≤H≤250 |
330≤A≤1000 |
1.1/1.2 |
≥100 |
≥120 |
≥20 |
|
Flat and Perforated |
50≤H≤250 |
330≤A≤1000 |
1.1/1.2 |
≥100 |
≥120 |
≥20 |
|
Embossed and Not Perforated |
50≤H≤250 |
330≤A≤1000 |
1.5 |
≥100 |
≥120 |
≥20 |
|
Embossed and Perforated |
50≤H≤250 |
330≤A≤1000 |
1.5 |
≥100 |
≥120 |
≥20 |

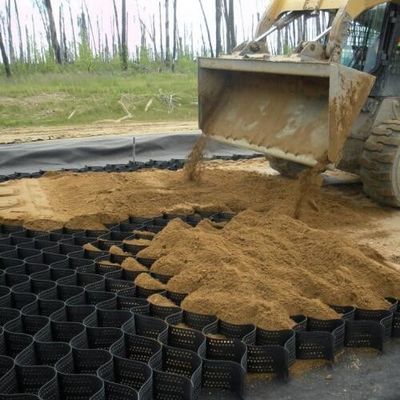

Hdpe Geocell Methods used
In construction, the geocell can be pulled into a network and launched into a three-dimensional honeycomb grid, then filled with soil, macadam, concrete or other granular materials to constitute to be a structure with strong lateral restriction and large stiffness.
