Product Details:
Payment & Shipping Terms:
|
| Material: | HDPE Geonet & Nonwoven Geotextile | Width: | 2meter , 4meter |
|---|---|---|---|
| Length: | 30Meter, As Request | Geonet Thickness: | 4mm, 4.5mm, 5mm, 5.8mm, 6mm, 7mm, 8mm, More, As Request |
| Geonet GSM: | As Request | Geonet Type: | Two-dimension & Three-dimension |
| High Light: | geotextile drainage fabric,geotextile road fabric |
||

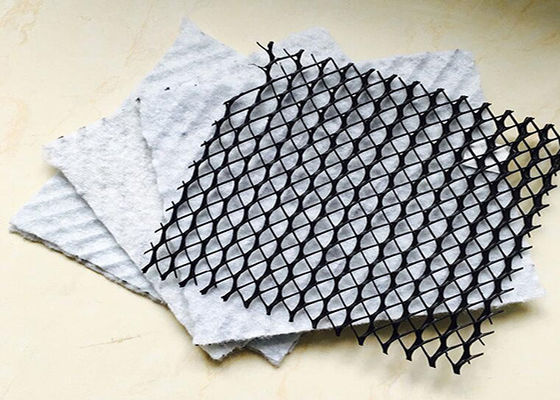

HDPE Geonet HDPE Composite Drainage Geonet Tri - Planner Drainage Layer
Composite Drainage Geonet Description
HUATAO Tri-dimension Composite Genet for Drainage is made of a unique tri-dimension geonet adhibited geotextile on both side. It has the property of geotextile ( Filtration function ) and geonet ( Drainage and Protection ) and provide a function synstem “filtration – drainage – protection”.
The core of net with its unique tri-dimension structure can bear higher compressing load in construction and remain the certain thickness, provide good water conductivity.
Composite Drainage Geonet Features
1 - Excellent drainage function, can bear long time high press load.
2 - High tensile strength and shear strength.
3 - Reduce the rate geotextile embedding into the core of geonet, can protect long time stable water conductivity.
4 - Tri-dimension composite geonet for drainage can bear more than 2000 kpa compression load.
5 - Its anti-compression capacity is much larger than common geonet for drainage.
Composite Drainage Geonet Property
Tri-dimension composite geonet for drainage is made of a unique tri-dimension geonet coated with geotextile on both sides. It has the property of geotextile(filtration) and geonet (drainage and protection) and provide a function system of“filtration-drainage-protection”. The tri-dimension structure can bear higher load in construction and remain certain thickness,strength and excellent in water conductivity.
Composite Drainage Geonet Typical Application
1. Landfill drainage
2. Roadbed and road drainage
3. Railway drainage
4. Tunnel drainage
5. Underground structure drainage
6. The retaining back wall drainage
7. Grdens and sports grounds drainage
Composite Drainage Geonet Specification
| Drainage netwrok core | units | Specification | |||
| Unit weight | g/m2 | 750 | 1000 | 1300 | 1600 |
| Thickness OV=20kpa | mm | 5.0 | 6.0 | 7.0 | 7.6 |
| Hydraulic conductivity | m/s | K x 10 -4 | K x 10 -4 | K x 10 -3 | K x 10 -3 |
| Elongation | % | ＜50 | ＜50 | ＜50 | ＜50 |
| Tensile strength ( core network) | KN/m | 8 | 10 | 12 | 14 |
| Geotextile | g/m2 | 200-200 | 200-200 | 200-200 | 200-200 |
