5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine

China HUATAO LOVER LTD certification
China HUATAO LOVER LTD certification
Huatao company is a very good company , I am very willing to cooperate with you, safe, efficient, professional, honest, happy! Thank you for providing me with stable service and products. -----EUROPAT

—— EUROPT INDUSTRIAL

I'm Online Chat Now

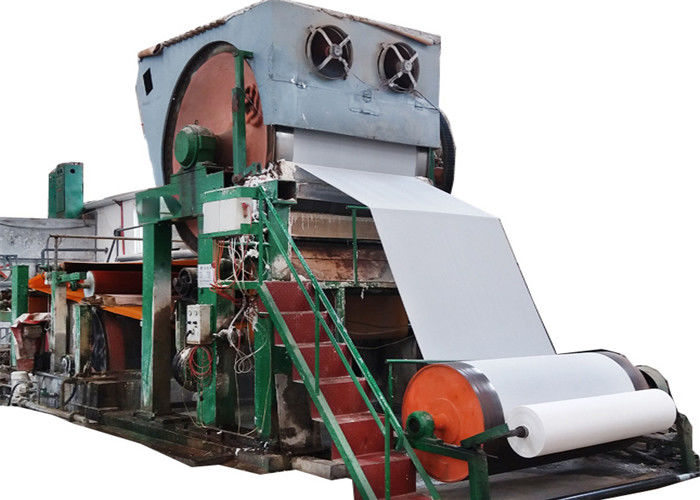

5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine

5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine
5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine 5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine

Large Image :  5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-TISSUE PM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 100000
Packaging Details: Standard export packing
Delivery Time: 100 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per year
Detailed Product Description
Paper Grade:: 13-40gsm Design Speed: 220m/min
Working Speed: 80-160m/min Capacity: 5T/D
Raw Material: Waste Paper, Wood Pulp, Carton Paper Product Variety: Toilet Paper
High Light:

5T/D Toilet Paper Machine

,

40gsm Toilet Paper Machine

,

13gsm Toilet Paper Making Machine

5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine



Tissue / Toilter Paper Machine

The tissue paper machine is the general name of the whole set of equipment which makes the pulp form the web, including the headbox, the forming section, the press section, the dryer section, the calender, the winder, the transmission part and the auxiliary systems such as steam, water, vacuum, lubrication and heat recovery.



Structure

Forming fabric is a ring net without end, between the breast roller and the roller, a horizontal or slightly inclined flat mesh surface is formed. As the working section of pulp dehydration, it is used to be called the wire table, so it is called fourdrinier machine. If the endless forming fabric is placed on the cylinder mould, it becomes the working section of arc dehydration forming, which is called the cylinder paper machine.



Forming Section, The forming section is composed of headbox, chest roll, forming fabric, vacuum suction box and couch roll. The headbox distributor sprays the slurry from the conveying system evenly to the forming fabric, and the slurry speed should match the wire speed.


Press Section, The formed wet paper is further dehydrated by means of pressure. It consists of two hard and soft rollers, such as stone roller and rubber roller. The press section is composed of pressing groups of the same or different forms, in which the vacuum suction device is also included in the habit. When pressing, the appropriate specification of press felt is used to support the paper sheet, which can evenly distribute the pressure and take away part of the water from the press, and can enhance the pressure and improve the dehydration ability of the press.



Dryer Section, A group of dryers is driven by gears or dryer screen, and a dryer section is composed of several groups of dryers. The linear speed of each group of dryer can be adjusted separately to maintain the micro speed difference between each group of dryer to compensate the shrinkage of paper in the drying process. The dryness of the paper out of the drying section is generally about 92-94%.



Surface Finishing Section, In the paper machine after the mechanical calender calendering, so that the paper surface is flat and consistent. The mechanical calender is made of a number of cold cast iron rollers. The paper surface is flattened by the weight of each roller or by additional pressure.



Transmission System, All parts of the paper machine are connected and run synchronously to form a mechanical and electrical integration. It is composed of mechanical decelerating device, speed regulating and stabilizing device, partial transmission device, etc., all of which use electric power as the power source.



White Water System, The paper machine forming section dehydration recovery, treatment and reuse system. Including white water collection, transportation, filtration or sedimentation, air flotation and other equipment, to separate and recycle fiber and filler reuse, as well as the clean white water recycling system in the papermaking process.



Auxiliary System, It is composed of electrical system, vacuum system, lubrication system, workshop steam supply and exhaust system, paper loss treatment system, compressed air system, steam supply and water supply and drainage system.



Product Details

Model

1575 (customize available)

Variety Of Paper

Toilet paper

Grammage/ GSM

13-35g/m2

Net Paper Width

1575mm (customize available)

Design Speed

220 m/min (customize available)

Working Speed

80-160 m/min (customize available)

Capacity For Per Day

5 T/D (customize available)

Raw Material

waste paper





Packing & Delivery

Packaging
products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.


Transportation
products will be transported according to their features and clients's needs. air, train and sea transportation are all available.



5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine 0



5Ton Per Day Jumbo Paper Roll 13-40gsm Toilet Paper Making Machine 1



Company Profile

We have passed CE, SGS, ISO quality system certification and all manufacture processes are conducted by the standard strictly.


Our company undertakes design, manufacturing, supply, erection and commissioning of paper machines & new pulp mill and modernization of existing pulp mill and paper machines on a turnkey basic. We also have innovative research team,always follow the
advanced technology of Finland,Denmark and Italy,Gemany;


Skilled and careful installation team.



Trade market:
Our machines sell good in more than 30 countries,such as Nigeria, Egypt,
Uzibekistan,Pakistan,America,Uganda,Turkey,Brazil,Fiji,Paraguay,Ethiopia,etc. High quality and perfect service have reserved customer's praise and more orders. We have established good relationship with many foreign countries because of our good quality and perfect service.
