Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine

Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine
Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine

Large Image :  Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Certification: ISO9001
Model Number: HT-TISSUE PM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 10000
Packaging Details: Standard export packing
Delivery Time: 100 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per year
Detailed Product Description
Brand: Huatao Model No: 1880
Origin: China Name: Huatao Brand 1880mm Width Toilet Paper Rewinding Machine
High Light:

1880mm Width Toilet Paper Rewinding Machine

,

Huatao Toilet Paper Rewinding Machine

,

PLC Toilet Paper Rewinding Machine

Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine



1880 Toilt Paper Rewinding Machine



This machine has no manual tube, automatic paper rolling function, automatic trimming, glue spraying, sealing, edge pressing and embossing functions, synchronous completion.

This machine has advanced technology, stable working performance and fast running speed. It is the advanced equipment for the production of toilet paper rolls at pre



Using PLC computer programming technology, with color touch screen, automatic punching, with infinitely variable speed governor, Automatic shaft drawing, pneumatic flattening, wide belt drive, knife break spray glue left tail function, pneumatic feeding base paper, with core, no core, with paper tube roll can be processed.



Parameter



Machine Model

1575

1760

1880

2800

3500

Paper Width(≤mm)

1800

2000

2200

2800

3500

1. Finished diameter (mm):

φ50~1800mm Adjustable Width

2. Finish paper core:

φ30~55mm

3.Base Diameter

1100mm Standard(Other size are available)

4.Jumbo Roll Core Diameter

76mm Jumbo Roll Core Diameter

5.Process Capability

150~280 M / Minute

6.Parameter Setting

PLC computer operating system interface

7.Back Stand

Standard three layersynchronous transmission

8.Perforation Pitch

2blades,150~300mm 3blades,80~220mm

9.Power

5.5kw~15kw Stepless variable speed

10.Dimensions

6200x2600x800mm~6200x4000x800mm

11.Weight

2300kg~3800kg

Fully Automatic High Productivity Slitting Rewinding Machine Description

This equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat,in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 150-200m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.



This equipment can process raw paper of 1575mm,1800mm,2000mm,2200mm,2800mm,3500mm in width. There are two types of this model:one is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectally for each one.

This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit,electricity control and cutting system. The production process is : unreeling - embossing - perforating - furl - slitting.

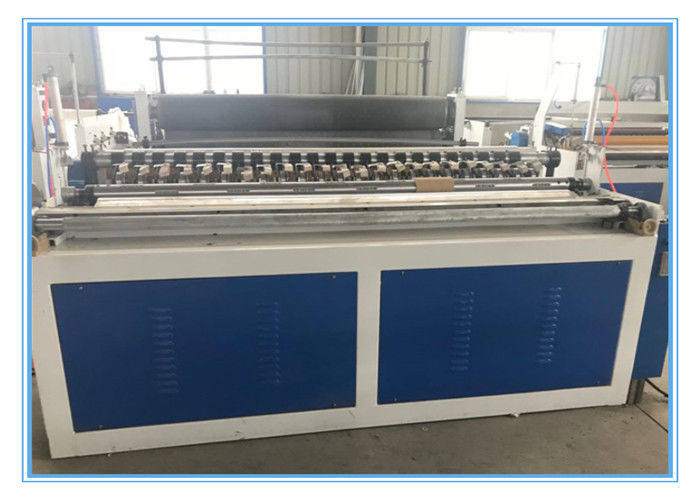

Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine 0

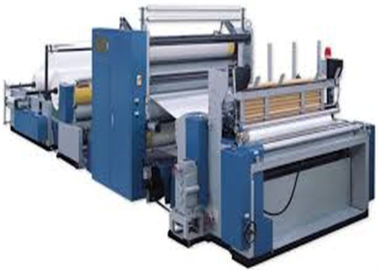

Huatao Brand 1880mm Width PLC Automatic Toilet Paper Rewinding Machine 1
