Product Details:
Payment & Shipping Terms:
|
| Flexural Strength: | ≥150MPa | Processing: | 1850℃ |
|---|---|---|---|
| Application: | High Temperature Firmware | Maximum Use: | 1800-3200℃ |
| Ash Content: | ≤300ppm | Material: | PAN-CF |
| Carbon Content: | ≥99% | Termal Conductivity 1.150℃: | 0,20~0,30W/m℃ |
| High Light: | composite carbon fiber felt cylinder,150mpa felt cylinder |
||

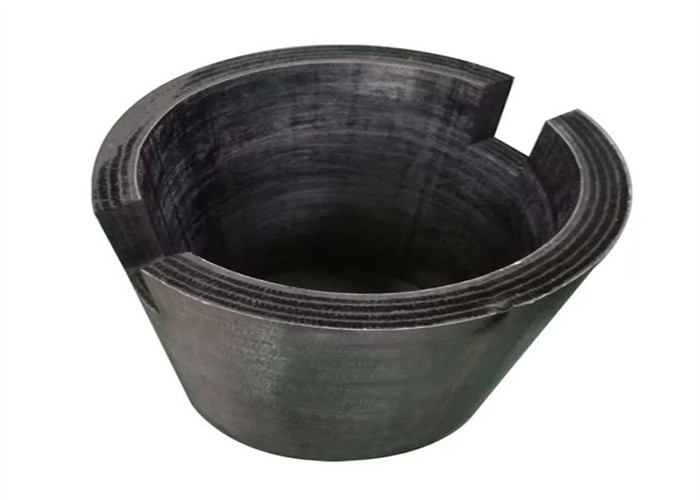

Graphite Hard Felt Carbon-Carbon Composite Carbon Fiber Curing Felt Needled Crucible Barrel
Graphite hard felt carbon-carbon composite carbon fiber cloth paper veneer curing felt needled crucible bonded plate preform.
Graphite hard felt for heat preservation of pressure sintering furnace, long service life, easy to install and remove, with support, excellent heat preservation performance, good bending resistance.
Low ash content / High carbon content / Low gas evolution
Excellent heat insulation / Low thermal conductivity
Long lifetime / Good anticorrosion / High oxidation resistance
Easy Handling / Good Strength
Application:
Heat insulation materials
Electrical elements
Absorptive materials
Reinforcing structure for C/C composite components and other products. Etc
| ITEM | |||
| Trademark | PAN-based Carbon Felt JXA-12 |
PAN-based Graphite Felt JXA-13 |
|
| Material | PAN-CF | PAN-CF | |
| Bulk density g/cmPP3 | 0.14 | 0.13 | |
| Carbon % | ≥98 | ≥99 | |
| Thermal conductivity 1150PPoPPC W/m .k |
0.12-0.16 | 0.12-0.16 | |
| Tensile Strength (Mpa) | 0.15 | 0.14 | |
| Crushing stress at 10% compression N/cmPP2 | 8-12 | 8-10 | |
| Ash % | ≤0.05 | ≤0.005 | |
| Processing temperature | 1200PoPC | 2300PoPC | |
| Operating Condition | in the air | ≤400PoPC | ≤400PoPC |
| in the vacuum | ≥1500PoPC | ≥2300PoPC | |
| In the inert atmosphere | ≥2300PoPC | ≥3300PoPC | |
| Spec | lenght (m) 9-12 | ||
| Wide (mm)1000-1300 | |||
| Thickness (mm)3.5.8.10 | |||
1.Technical Specifications:
Volume Density (g/cm3): 0.25-0.3
Tensile strength (Mpa): 2.5 (Deformation 5%)
Thermal conductivity (W/m. K): 0.15-0.25(25) 0.40-0.45(1400)
Resistivity (Ohm. Cm): 0.18-0.22
Carbon content (%): ≥ 99.4
Ash content (%): ≤ 0.5
Moisture absorption rate (%): ≤ 1.6
Purification level: 99.3
Treatment temperature: 1450-2000
2.Specification:
Sheet materials: 1500*1800(Max) (Thickness): 20-200mm

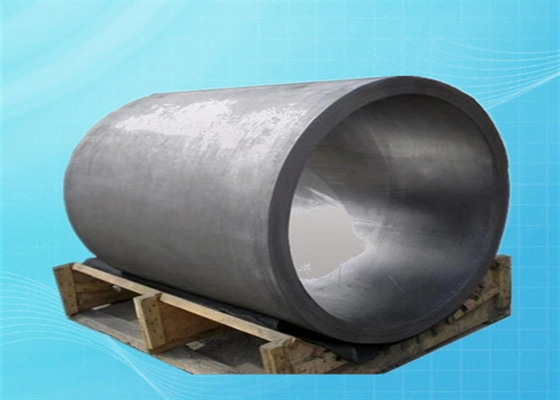

Tube material: 1500*2000(Max) (Thickness): 20-150mm
Square tube: 1500*1500*2000(Max) (Thickness): 60-120mm
Application temperature range: 1250-2600
(Special Size are available on request. )
If you have any interested in carbon felt, graphite felt, rigid graphite board, vacuum thermal chamber, Hot Zone and CFC for Vacuum Furnace, High Temperature Sintering Furnace, Solar Silicon Furnace, crystal growth furnace, inert atmosphere furnaces, semiconductor furnace, multicrystalline DSS, Directional Solidification System(DSS) furnaces...... please tell me, you can be sure that we will do everything in our power to merit your business.
Carbon-Carbon Composite Carbon Fiber Curing Felt Detailed Images
We mainly produce high purity, high density and high strength products with the series of crucible/mold/boat,
bearings/bushing,electrode/rotor, rod/plate/ block/ball, paper/felt/rope. We can offer customized shape according to customer'sspecific demand.Materials include the extrude/molded/isostatic graphite of all grades
Carbon-Carbon Composite Carbon Fiber Curing Felt Packing & Shipping
