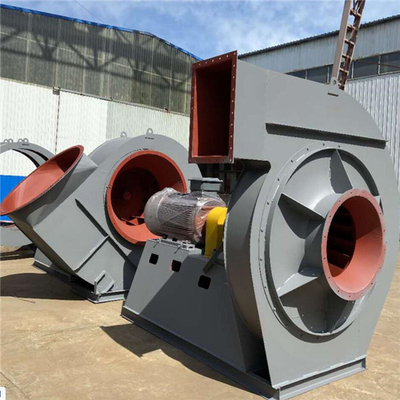

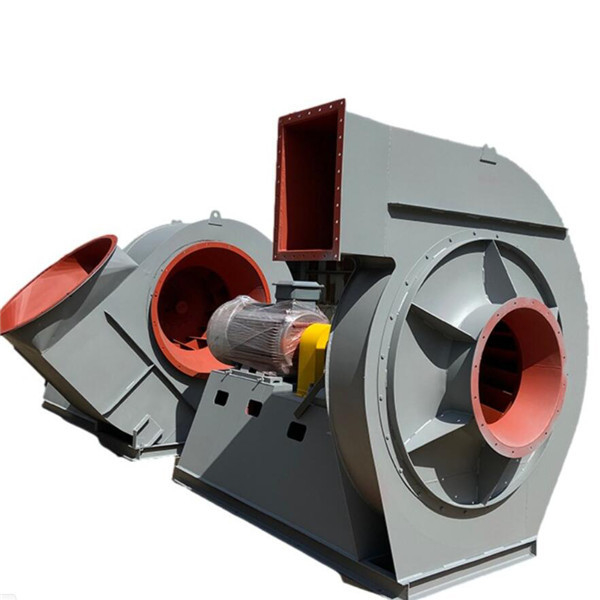

High Efficiency High Temperature Resistant Exhaust Blower Fan Centrifugal Fan

High Efficiency High Temperature Resistant Exhaust Blower Fan Centrifugal Fan

Indroduction For High Efficiency High Temperature Resistant Exhaust Blower Fan Centrifugal Fan​:

High temperature centrifugal fans are usually used as induced draft fans. Its material has strong high temperature resistance and high pressure resistance. The stainless steel high temperature centrifugal fan uses different impeller and main shaft materials according to the ambient temperature of the application. The temperature of the stainless steel high temperature resistant centrifugal fan produced by HUATAO can reach 600 ℃.

Application For High Efficiency High Temperature Resistant Exhaust Blower Fan Centrifugal Fan:

The high temperature fan is suitable for working under non-corrosive and high temperature conditions.

Form For High Efficiency High Temperature Resistant Exhaust Blower Fan Centrifugal Fan:

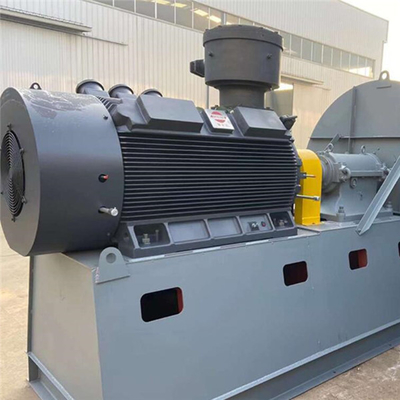

The fan is made of double suction type. Viewed from one end of the motor, the impeller can be made to rotate in a forward or reverse direction. The air inlet of the fan forms an angle of 105° with the horizontal line, and the air outlet forms an angle of 90° with the horizontal line. The mode is F type, and the connection between the motor and the fan adopts the direct drive of the coupling.

Structural Characteristics For High Efficiency High Temperature Resistant Exhaust Blower Fan Centrifugal Fan:

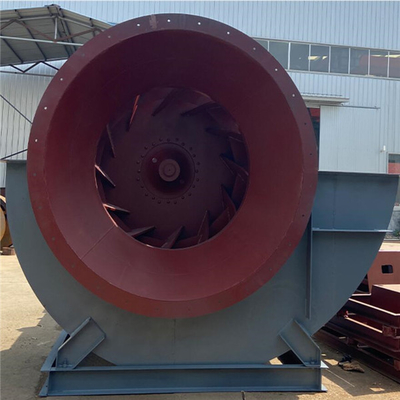

1) The impeller is welded by forward curved blades, front disc and middle disc. The axle disc is made of alloy steel, and the rest are made of heat-resistant stainless steel.

2) The main shaft of the transmission part is made of high-quality steel, and the bearing is equipped with a thermometer, an oil level indicator and a cooling water device.

3) One double suction casing, which is composed of a worm plate.

4) There are two air intake boxes, and the shaft end is sealed with comb teeth.

Specification For High Efficiency High Temperature Resistant Exhaust Blower Fan Centrifugal Fan:

Air volume range: 1100-1400000M3/H

Wind pressure range: 500-20000PA

Transmission mode: A-type direct connection, C-type belt, D-type coupling, F-type double support

Temperature resistance: ≤650°C

Material: carbon steel, high strength stainless steel.
