Product Details:
Payment & Shipping Terms:
|
| Cylinder Diameter Characteristics: | 320mm | Cylinder Length（mm）: | 600-1000 |
|---|---|---|---|
| Cylinder Qty: | 1/2 | Magnetic Induction (gs: | 3500-8000 |
| High Light: | aggregate magnetic separation in mining,magnetic separation in mining equipments,magnetic separation in mineral processing |
||

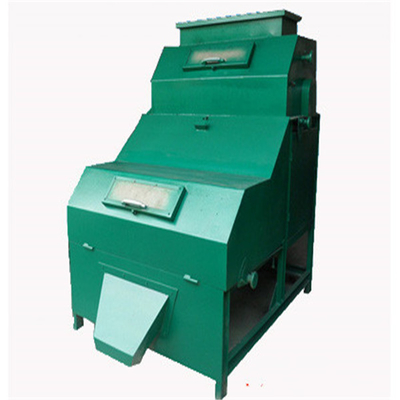

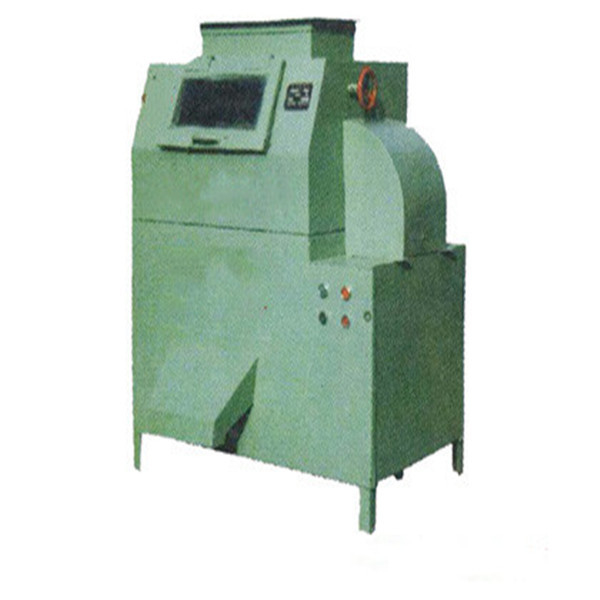

Aggregate magnetic separator
Application of aggregate magnetic separator:
It is widely used in the screening of ferromagnetic substances in abrasives, refractories, ceramics, chemicals and other non-metallic minerals.
Structural features of Aggregate magnetic separator
Reasonable magnetic arrangement; easy to pick up aggregate; automatic operation;
Ht series aggregate magnetic separator performance characteristics:
Long-lasting work; stable operation; convenient maintenance.
Data sheet of Aggregate magnetic separator
Type |
Cylinder diameter(mm) |
Cylinder length(mm) |
Cylinder qty |
Magnetic induction (gs) | Selected material particle size (mm) | Productivity (t/h) | Motor power(kw) |
Machine size |
Weight(kg) |
|
HT1-60 |
320 | 600 | 1 | 3500-8000 | 0-10 | 1-1.5 | 0.75 | 1020*1010*1170 | 320 |
|
HT1-80 |
320 | 800 | 1 | 3500-8000 | 0-10 | 1-1.5 | 0.75 | 1220*1010*1170 | 300 |
|
HT2-60 |
320 | 600 | 2 | 3500-8000 | 0-10 | 1-1.5 | 1.5 | 1170*880*1450 | 350 |
|
HT2-80 |
320 | 800 | 2 | 3500-8000 | 0-10 | 1-1.5 | 1.5 | 1370*1010*1450 | 450 |
|
HT2-100 |
320 | 1000 | 2 | 3500-8000 | 0-10 | 1-1.5 | 1.5 | 1530*1010*1450 | 480 |
