Product Details:
Payment & Shipping Terms:
|
| Max.Capacity: | 300-400L/min | Max.Head: | 110m-150m |
|---|---|---|---|
| Driving Type:: | Motor | Warranty: | One Year |
| Impeller: | Single-Stage Pump | Working Pressure: | High Pressure Pump |
| High Light: | 400l/min industrial centrifugal pumps,coal washing industrial centrifugal pumps,400l/min high pressure centrifugal pump |
||

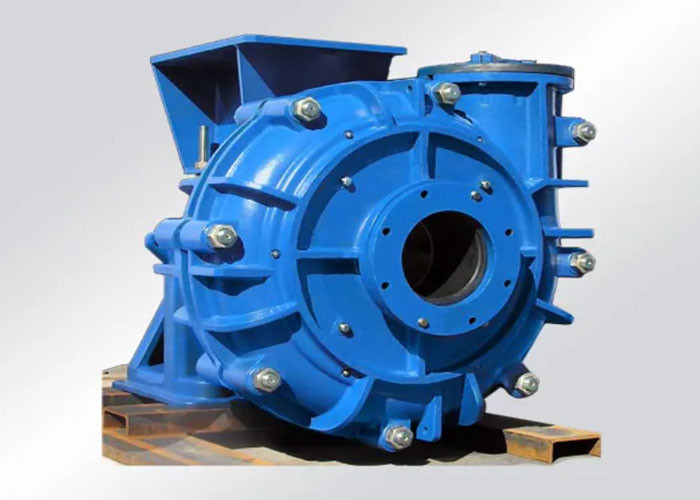

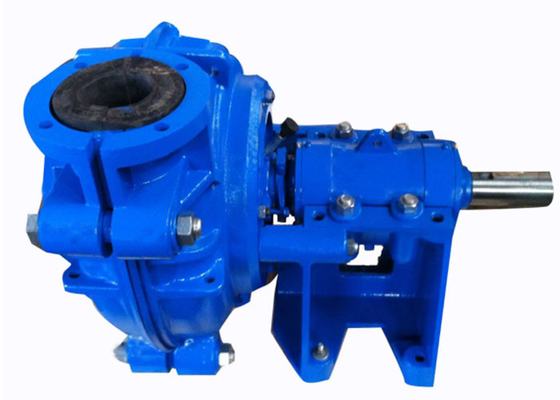

HUATAO heavy duty horizontal slurry pumps are designed to handle the transfer of abraisive and high density slurries in mining and heavy industry.
Technical Data
| Usage | Slurry, sewage and water |
| Capacity | 0- 3600m³/h |
| Head | 0-112m |
| Speed | up to 3200r/min |
| Inlet/ouetlet Size | DN25mm-DN350mm |
| Max Temperature | 110ºC |
| Drive | Electric or diesel |
Features:
1. Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.
2. Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
3. Casing: Casing halves of cast or ductile iron provide high operating pressure capabilities.
4. Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
5. Throatbush: Wear is reduced and maintenance simplified by the use of tapered.
