Product Details:
Payment & Shipping Terms:
|
| Flow Capacity: | 10-5400m3/h | Max.Head: | 110m |
|---|---|---|---|
| Driving Type:: | Motor | Warranty: | One Year |
| Impeller: | Closed | Sealing Methods: | Packing Seal, Expeller Seal, Mechanical Seal |
| High Light: | heavy duty horizontal centrifugal slurry pump,mining process horizontal centrifugal slurry pump,heavy duty chemical centrifugal slurry pump |
||
The slurry pump is a kind of cantilever centrifugal pump. It adopts horizontal frame and bears a casing structure of axially vertical with double open, the inner liner is made of metal or rubber, which has good abrasion resistance, corrosion resistance and high reliability. The product such characteristics as reasonable structure, reliable operation methods and long working-life. It is especially suitable for the slurry of high concentration and strong abrasion conditions, and are with good reputation in the customers.
Technical Datasheet:
| Allowable Mating Max. Power(KW) | Material | Clear Water Performance | Impeller | ||||||||
| Liner | Impel | Capacity Q | Head H (m) |
Speed N (r/min) |
Max. Eff(%) | NPSH (m) |
No. of Vanes S | Dia.(mm) | |||
| M³/h | l/s | ||||||||||
| 1.5/1B-AHHT | 15 | M | M | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
| 2/1.5B-AHHT | 15 | M | M | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
| 3/2C-AHHT | 30 | M | M | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
| 4/3C-AHHT | 30 | M | M | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
| 6/4D-AHHT | 60 | M | M | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 5 | 365 |
| 8/6R-AHHT | 300 | M | M | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
| 10/8E-MHT | 120 | M | M | 666-1440 | 185-400 | 14-60 | 600-1100 | 73 | 4-10 | 5 | 549 |
| 10/8ST-AHHT | 560 | M | M | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
| 12/10ST-AHHT | 560 | M | M | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
| 14/12ST-AHHT | 560 | M | M | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
| 16/14TU-AHHT | 1200 | M | M | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
| 20/18TU-AHHT | 1200 | M | M | 2520-5400 | 700-1500 | 13-57 | 200-400 | 85 | 5-10 | 5 | 1370 |

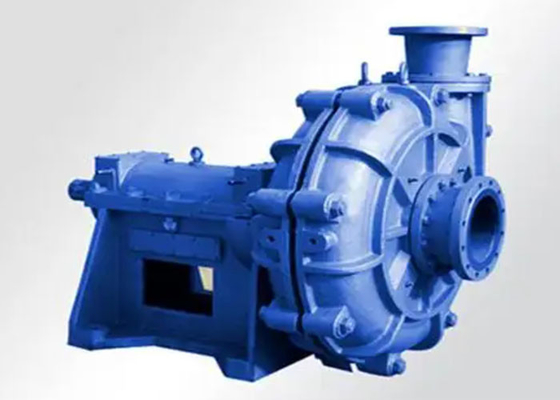

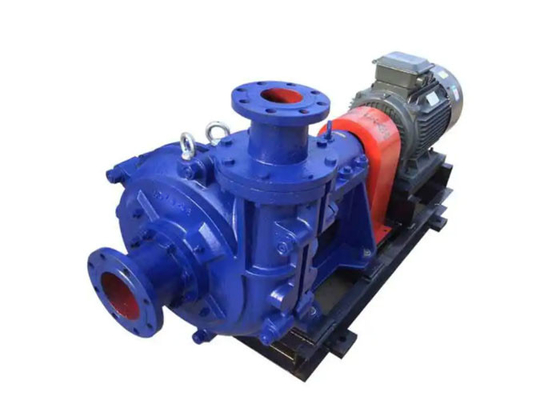

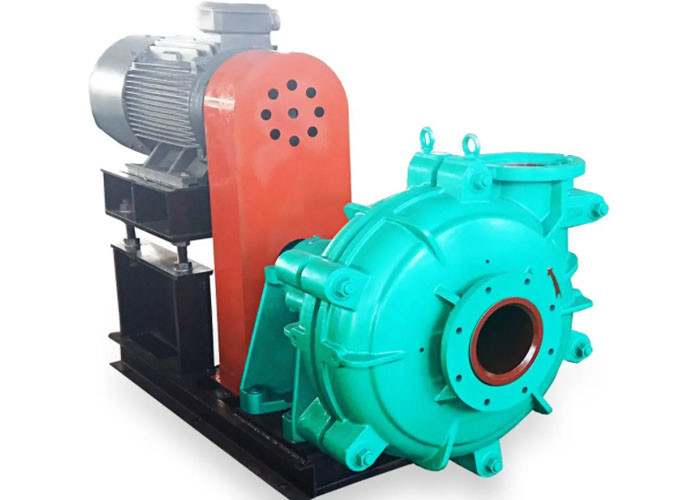

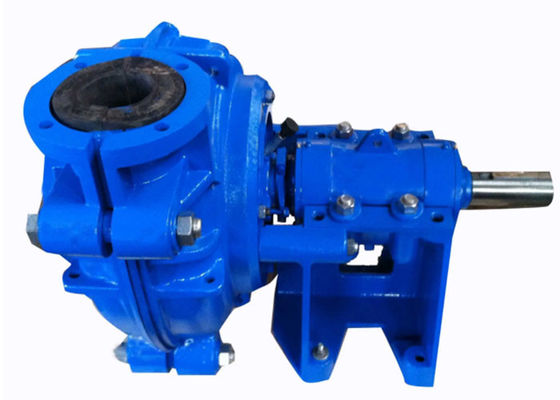

Photos:
Our advantages:
1. 14 years exporting experience.
2. Professional team with fluent English, so that we can talk on phone efficiently.
3. Top quality pump and good after sale service within 12 months warranty.
4. Quick delivery
