Product Details:
Payment & Shipping Terms:
|
| Product Name: | Active Roll | Bandwidth: | 400-2400mm |
|---|---|---|---|
| Layout Form: | Turning And Conveying | Structure Form: | Power, Drum Motor, Etc |
| Diameter Range: | 4000-1800 | Power Mode: | Speed Reduction Motor Drive, Electric Roller Drive |
| High Light: | stable rotation industrial conveyor roller,active industrial conveyor roller |
||

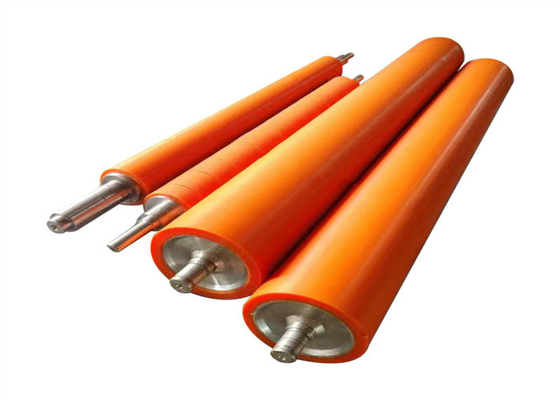

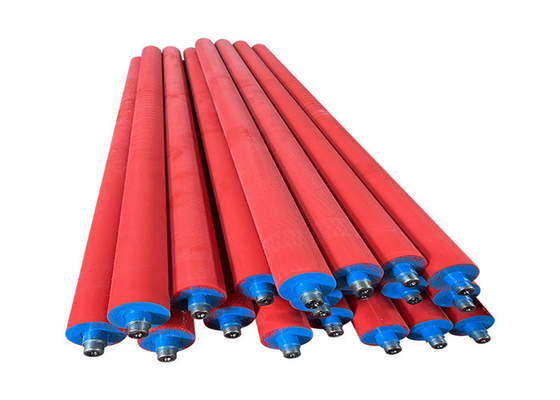

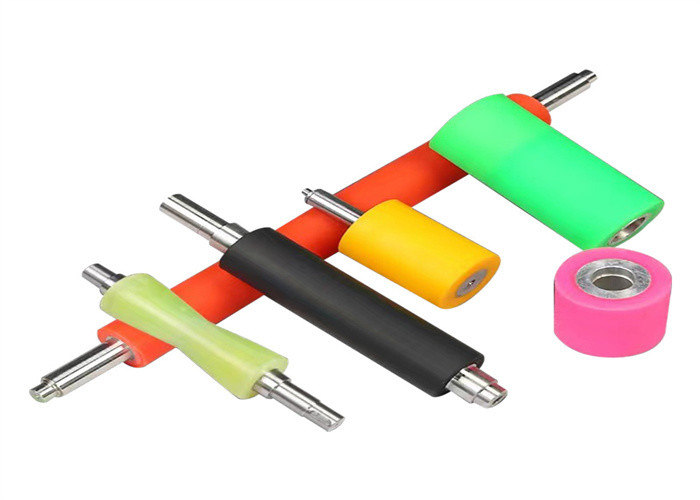

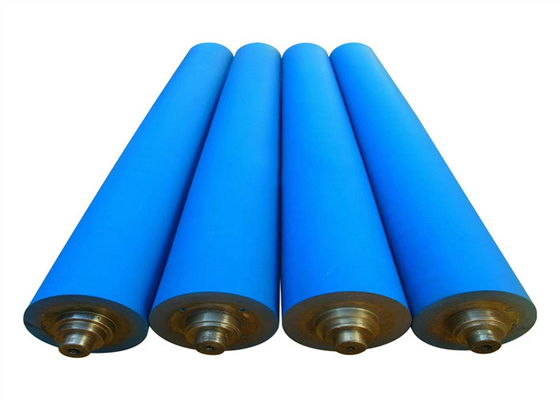

Steel Surface, Stable Rotation Active Roll Textile For Printing And Dyeing
Active roller Description
The active roller is the main part of the belt conveyor to transmit power. The surface of the roller is available in steel surface, cast rubber glossy surface, with diamond or herringbone cast rubber surface, etc. for users to choose.
Active roller Specification
| Bandwidth(mm) | Diameter Range(mm) | Transferred torque(KN.M) |
| 400 | 400 | 2.0 |
| 800 | 500-800 | 4.1-32(2×23) |
| 1600 | 800-1600 | 50-180(2×160) |
| 2000 | 1000-1800 | 65-220(2×200) |
| 2200 | 1000-1800 | 65-220(2×200) |
| 2400 | 1000-1800 |
65-220(2×200) |
Active roller Production Process
Large seamless steel tubes are selected for direct fabrication: precise cutting with flame cutting machine, drum welding machine for drum inner disc, and welding of drum sleeve and disc with displacement machine. Use large lathe for drum outer circular pass processing, wall thickness uniform radial runout small. Select 45# round steel and sleeve, shaft through processing, to ensure the concentricity of the shaft and reduce the eccentric force of the shaft. The roller rotation is more stable, and the high quality bearing and bearing seat are selected, equipped with bearing inner diameter enlarger, and the bearing is hot mounted. Can easily lower the bearing to push the bearing position, to avoid knocking to the damage to the bearing, after assembly for dynamic balance test, the accuracy of GB/T9239.1-2006 in G40 standard.
Active roller Application Industry
According to different working conditions, occasions and applications, it can be widely used in electric power, steel, chemical, coal, cement, mining and port terminal industries.
