| Product Name: | Vertical Centrifugal Slurry Pump | Influent Type Of Impeller: | Single Suction Pump |
|---|---|---|---|
| Submerged Length: | 800-2000mm | Head: | Up To 40m |
| Max Capacity: | >400 L/min | Impeller Type: | Semi-Closed |
| Voltage: | 380V | Discharge: | Up To 12 Inch |
| High Light: | vertical sewage centrifugal pump,thermal power plants sewage centrifugal pump,thermal power plants submersible mud pump |
||

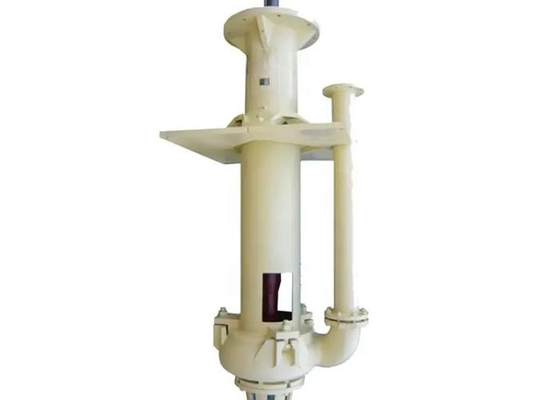

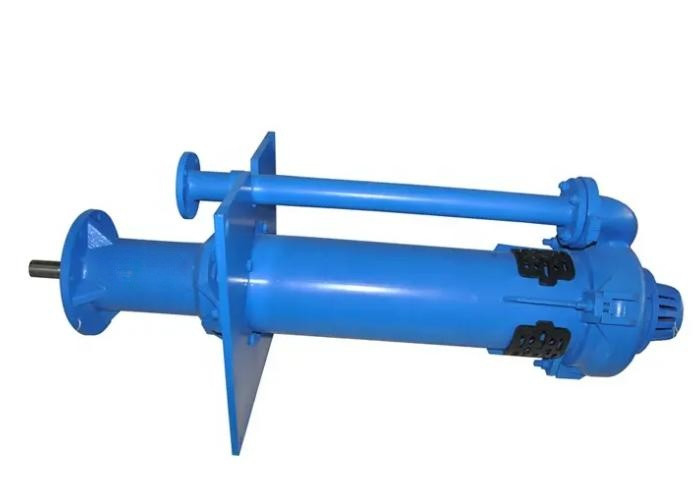

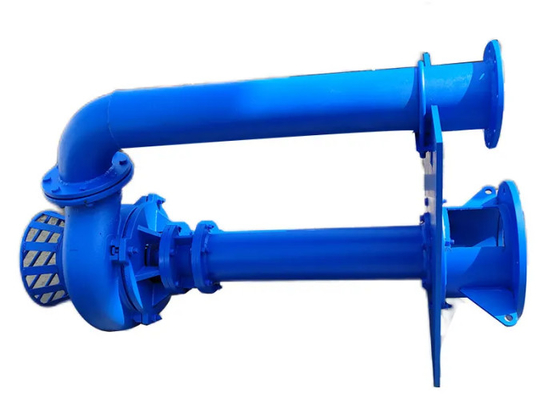

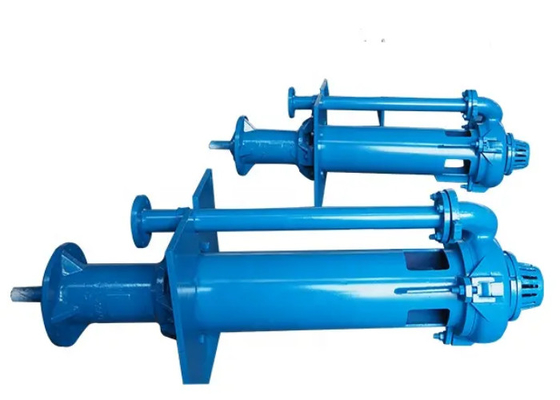

Vertical Sewage Submersible Slurry Pump Sucks Flowing Mud For Thermal Power Plants
Vertical Centrifugal Slurry Pump Introduce
Submersible Slurry Pump is a vertical but only suction cantilever centrifugal pump structure. The impeller is a semi-opened vane, and stirring blades are provided at the extension of the suction side of the impeller.
Two series of pumps are mainly used in environmental protection, municipal engineering, thermal power plants, gas coking plants, oil refineries, steel mills, mining, paper industry, cement factory, food factory, printing, and dyeing industries to suck the thick liquid, heavy oil, oil residue, dirty liquid, mud, mortar, sand, and urban sewage drains flowing sludge, as well as a liquid containing coal ash slag. Can also be used as a chemical, pharmaceutical, and other industries suction containing mud and sand slag fluid and corrosive liquid.
Vertical Slurry Pump is a cantilever sump pump, semi-submerged to transport high abrasive and high-density lurries with large particles. It doesn't need any seal water and can work normally even with insufficient liquid.
Vertical Slurry Pump Specification
Size (discharge): 40mm to 300mm
Capacity: 7.28-1300 m3/h
Head: 3m-45 m
Handing solids: 0-79mm
Concentration: 0%-70%
Materials: high chrome alloy or anti-abrasive rubber
Vertical Centrifugal Slurry Pump Material
Natural rubber can work in the range of pH 1~13 in the range of service temperature.
High chromium metals can only work in the range of pH 5 ~ 12;
Special metal materials can work in the range of pH 1 ~ 14.
Vertical Centrifugal Slurry Pump Application
Minerals processing and Tailing delivery
CIL (Carbon-In-Leaching) gold processing
Accident slurry return
Coal preparation
Sand and gravel discharging
Chemical processing
Effluent handing
Vertical Centrifugal Slurry Pump Specification
| Model | Matching power P(KW) |
Capacity Q(m³/h) |
Head H(m) |
Speed n(r/min) |
Eff.η (%) |
Impeller Dia. (mm) |
Max. particles (mm) |
Weight (kg) |
| 40VS-PV | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
| 65VS-QV | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
| 100VS-RV | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
| 150VS-SV | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
| 200VS-SV | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
| 250VS-TV | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |
| 300VS-TV | 22--200 | 288-1267 | 6-33 | 350-700 | 50 | 610 | 65 | 3940 |
Vertical Slurry Pump Application
Mineral Processing: Slurry pumps play a crucial role in mineral processing plants, where they are used for transporting slurries during various stages of the process, including grinding, flotation, and thickening. They help in the efficient separation and extraction of valuable minerals from the ore.
Mining: Slurry pumps are extensively used in the mining industry for transporting and handling abrasive slurries containing minerals, ores, and other solid particles. They are used in applications such as mine dewatering, mill discharge, tailings transport, and reagent dosing.
