Product Details:
Payment & Shipping Terms:
|
| Product Name: | Insulated Stop Valve | Nominal Pressure: | 2.5-6.4 |
|---|---|---|---|
| Tested Pressure Of Shell: | 2.75-9.0 | Applicable Temperature: | ≤200 |
| Applicable Medium: | Nitrate | Insulation Sleeve Pressure: | ≤1.0 |
| High Light: | insulated stop industrial valves,metallurgical industrial valves |
||

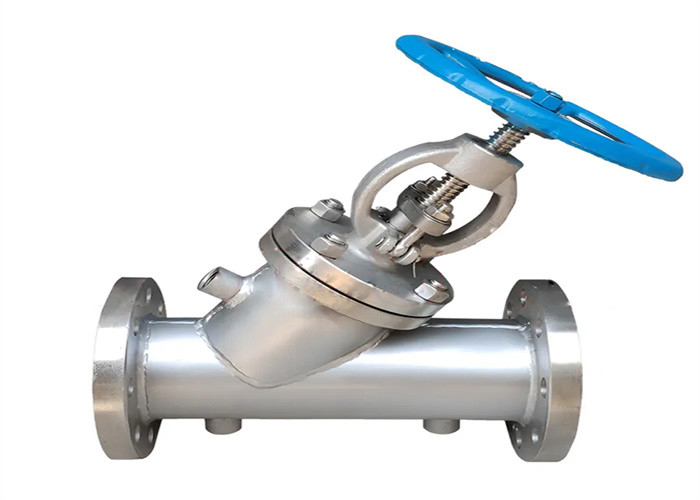

Insulated Stop Valve Used In Petroleum, Chemical, Metallurgical, Pharmaceutical And Other Types Of Systems
Description
Insulated stop valve, mainly used in petroleum, chemical, metallurgical, pharmaceutical and other types of systems to transport high viscosity media will solidify at room temperature, DC jacketed insulation stop valve insulation jacket welded to the valve between the two flanges, the valve's side, the bottom of the two connections set up with the insulation jacket port. DC insulation disconnecting valve is especially suitable for chemical industry, fertilizer industry pipeline, the jacket connotation into the steam can prevent the media crystallization.
Advantages
1,Simple structure, manufacturing and maintenance is relatively convenient;.
2,Small working stroke, short opening and closing time.
3,Good sealing, small friction between sealing surfaces, long life.
4,Suitable for larger viscosity, easy to coking medium.
Specification
|
Nominal Preasure PN(MPa) |
Test Pressure | Applicable temperature | Applicable medium |
Insulation sleeve pressure (MPa) |
|
| clamshell | seal up | ||||
| 2.5 | 3.75 | 2.75 | ≤200 | nitrate | ≤1.0 |
| 4.0 | 6.0 | 4.4 | |||
| 6.4 | 9.0 | 6.6 | |||
| 2.5 | 3.75 | 2.75 | nitrate | ||
| 4.0 | 3.0 | 4.4 | |||
| 6.4 | 9.0 | 6.6 | |||
Other series of valves
Production Workshop

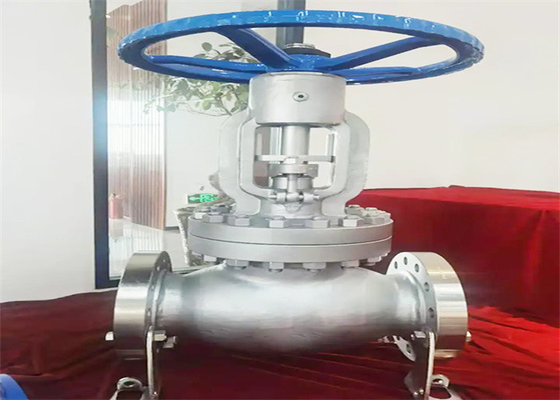

Exhibition And Customer Visting
