Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ball Valve | Industries: | Dairy, Food, Beverage, Pharmacy, Cosmetic, Chemical |
|---|---|---|---|
| Media: | Water | Body Material: | AISI-304,316L |
| Temperature Range (PTFE): | -20~ 350°F | Max.working Pressure(PTFE): | 10 Bar (147psi) |
| High Light: | aisi 304 tank bottom ball valve,10 bar tank bottom ball valve,10 bar sanitary stainless steel ball valve |
||
Sanitary Stainless Steel Tank Bottom Ball Valve
Sanitary Ball Valve Introduction:
The stainless steel sanitary ball valve is made of SUS304 and 316L, which can meet the special requirements of various media in the food and biopharmaceutical fields. Its smooth, seamless, and automatic emptying handicraft fluid channels are also very suitable for cleaning in place when steam is stepped on it. In the process of manufacturing and processing, the quality control is strictly carried out according to the requirements of the FDA, and the computer three-dimensional design is adopted, which is manufactured for the requirements of GMP.
It can meet the special requirements of various media in the fields of food and biopharmaceuticals. Its smooth, seamless, and automatic emptying manual process fluid channels are also very suitable for the needs of steam and other CIP cleaning in place.
Feature:
Working Principle:
1. In the closed position, the ball is pressed against the valve seat by the mechanical pressure of the valve stem.
2. When the hand wheel is turned counterclockwise, the valve stem moves in the opposite direction, and the angular plane at the bottom makes the ball disengage from the valve seat.
3. The valve stem continues to lift and interacts with the guide pin in the helical groove of the valve stem, causing the ball to start rotating without friction.
4. Until it reaches the fully open position, the valve stem is raised to the limit position, and the ball rotates to the fully open position.
Parameters
|
Model No.
|

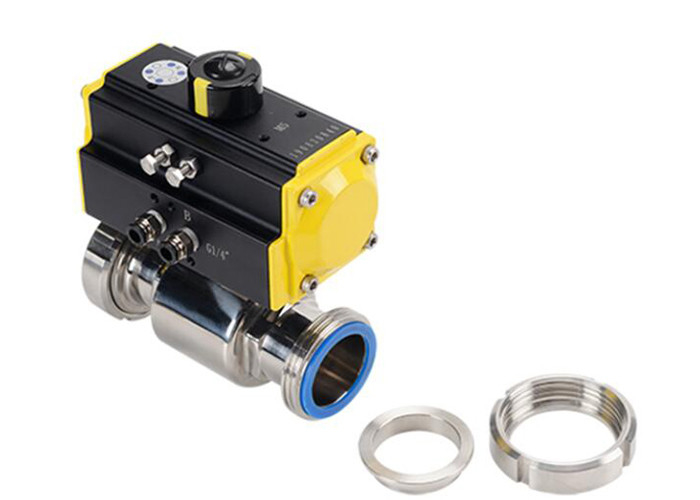

Sanitary Penumatic Tank Bottom Valve
|
|
Size
|
1-4"
|
|
Working Pressure
|
Medium Pressure
|
|
Material
|
Body: SUS304, SUS316L etc.
Gasket: EPDM, PTFE, etc. |
|
Standard
|
ISO, DIN, IDF, 3A, SMS etc.
|
|
Working Temperature
|
Normal Temperature
|
|
Connection
|
Welding, Thread, Clamped(Quick-Install), Flange etc.
|
|
Application
|
Dairy, Food, Drink, Beer, Cosmetics, Fine Chemical etc.
|
|
Drive
|
Manual, Pneumatic, Electric etc.
|
|
Surface Treatment
|
Mirror Polish, Matte etc.
|
|
Machine Processing
|
The Most Advanced CNC Machine From Japan For Processing.
|
|
Certificate
|
CE, 3A, IAF, ISO9001 etc.
|
